Product Parameters

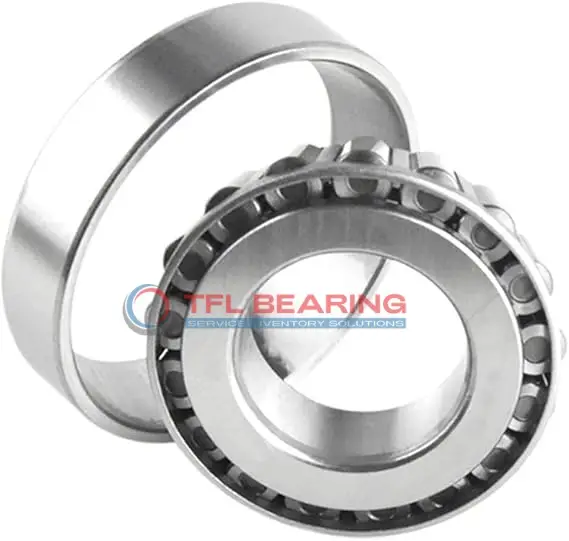

Part Number X30219-Y30219
Brand TFL
Interchangeable Brand Timken
System of Measurement Metric
Type Bearing
Sizes 95 mm x 170 mm x 34.5 mm
Cone Part Number X30219
Cup Part Number Y30219
Bore Dia 95 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 170 mm
Outer Dia Tolerance -0.025mm to 0
Cone Width 32 mm
Cone Width Tolerance -0.15mm to 0
Cup Width 27 mm
Cup Width Tolerance -0.2mm to 0
Width 34.5 mm
Width Tolerance +0.2mm to -0.2mm
Cone Backface ToClear Radius 3.05 mm
Cup Backface ToClear Radius 2.54 mm
Cone Frontface Backing Diameter 108 mm
Cone Backface Backing Diameter 113 mm
Cup Frontface Backing Diameter 160.00 mm
Cup Backface Backing Diameter 154.94 mm
Cage Cone Frontface Clearance 6.1 mm
Cage Cone Backface Clearance 2.5 mm
Effective Center Location -1 mm
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 30219
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 59625 lbf
Static Radial Load 73575 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 15480 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 11137.5 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 6.61 lb
