Product Parameters

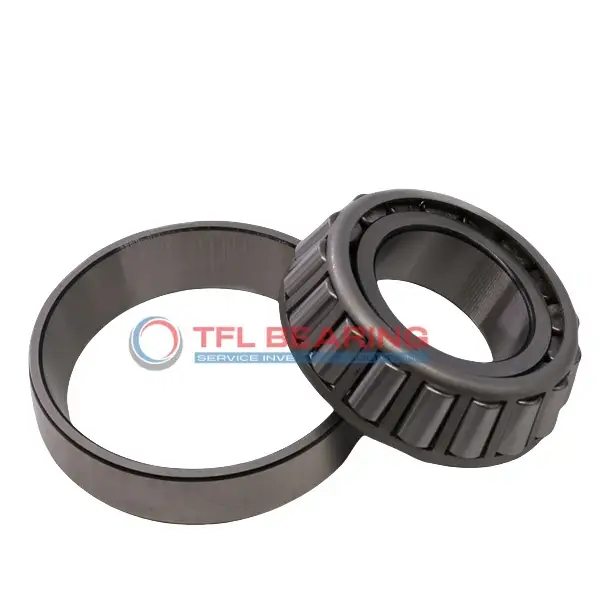

Part Number KJP13049A-KJP13010
Brand TFL
Interchangeable Brand Timken
System of Measurement Metric
Type Bearing
Sizes 130 mm x 185 mm x 29 mm
Cone Part Number KJP13049A
Cup Part Number KJP13010
Bore Dia 130 mm
Bore Dia Tolerance -0.025mm to 0
Outer Dia 185 mm
Outer Dia Tolerance -0.03mm to 0
Cone Width 27 mm
Cone Width Tolerance -0.2mm to 0
Cup Width 21 mm
Cup Width Tolerance -0.25mm to 0
Width 29 mm
Width Tolerance +0.35mm to -0.25mm
Cone Backface ToClear Radius 6.1 mm
Cup Backface ToClear Radius 3.05 mm
Cone Frontface Backing Diameter 139 mm
Cone Backface Backing Diameter 150 mm
Cup Frontface Backing Diameter 179.10 mm
Cup Backface Backing Diameter 171.96 mm
Cage Cone Frontface Clearance 4.6 mm
Cage Cone Backface Clearance 2 mm
Effective Center Location 9.1 mm
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series JP13000
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 56475 lbf
Static Radial Load 70875 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 14625 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 11835 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 4.85 lb
