Product Parameters

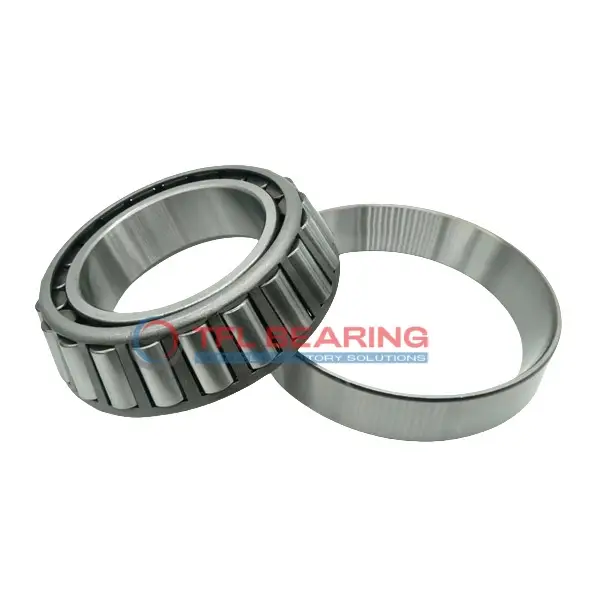

Part Number JP12049A-JP12010
Brand TFL
Interchangeable Brand Timken
System of Measurement Metric
Type Bearing
Sizes 120 mm x 170 mm x 27 mm
Cone Part Number JP12049A
Cup Part Number JP12010
Bore Dia 120 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 170 mm
Outer Dia Tolerance -0.025mm to 0
Cone Width 25 mm
Cone Width Tolerance -0.15mm to 0
Cup Width 19.5 mm
Cup Width Tolerance -0.2mm to 0
Width 27 mm
Width Tolerance +0.2mm to -0.2mm
Cone Backface ToClear Radius 6.1 mm
Cup Backface ToClear Radius 3.05 mm
Cone Frontface Backing Diameter 127 mm
Cone Backface Backing Diameter 139 mm
Cup Frontface Backing Diameter 165.10 mm
Cup Backface Backing Diameter 156.97 mm
Cage Cone Frontface Clearance 4.3 mm
Cage Cone Backface Clearance 2.3 mm
Effective Center Location 7.9 mm
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series JP12000
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 44100 lbf
Static Radial Load 53550 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 11430 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9247.5 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 3.75 lb
