Product Parameters

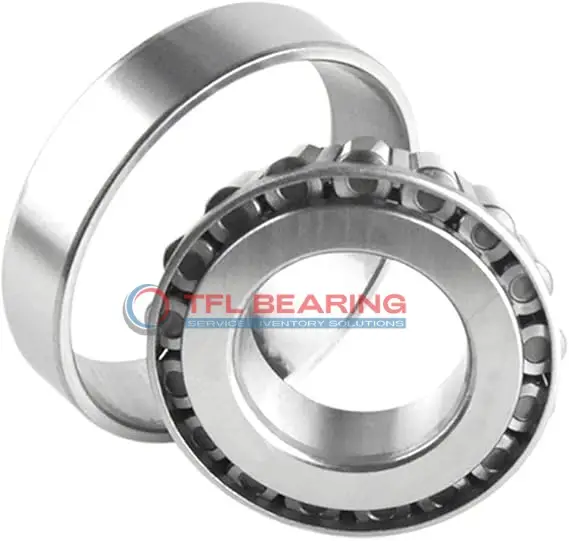

Part Number JP10044-JP10010
Brand TFL
Interchangeable Brand Timken
System of Measurement Metric
Type Bearing
Sizes 95 mm x 145 mm x 24 mm
Cone Part Number JP10044
Cup Part Number JP10010
Bore Dia 95 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 145 mm
Outer Dia Tolerance -0.02mm to 0
Cone Width 22.5 mm
Cone Width Tolerance -0.15mm to 0
Cup Width 17.5 mm
Cup Width Tolerance -0.2mm to 0
Width 24 mm
Width Tolerance +0.2mm to -0.2mm
Cone Backface ToClear Radius 3.05 mm
Cup Backface ToClear Radius 3.05 mm
Cone Frontface Backing Diameter 102 mm
Cone Backface Backing Diameter 108 mm
Cup Frontface Backing Diameter 140 mm
Cup Backface Backing Diameter 134.11 mm
Cage Cone Frontface Clearance 3.8 mm
Cage Cone Backface Clearance 1.3 mm
Effective Center Location 6.1 mm
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series JP10000
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 28125 lbf
Static Radial Load 38700 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 7312.5 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5917.5 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 2.87 lb
