Product Parameters

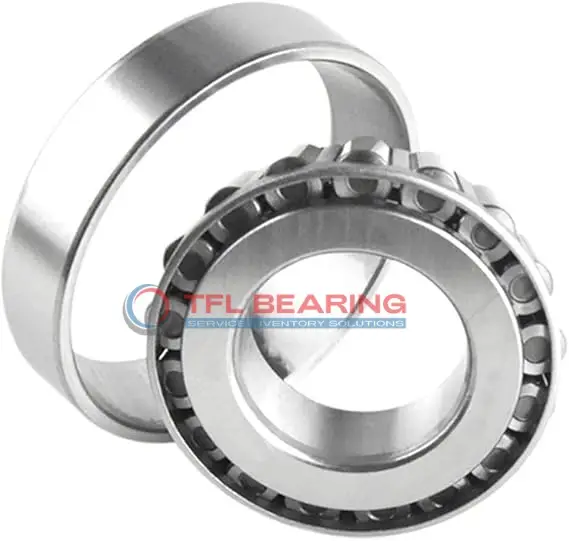

Part Number JL819349-JL819310
Brand TFL
Interchangeable Brand Timken
System of Measurement Metric
Type Bearing
Sizes 95 mm x 135 mm x 20 mm
Cone Part Number JL819349
Cup Part Number JL819310
Bore Dia 95 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 135 mm
Outer Dia Tolerance -0.02mm to 0
Cone Width 20 mm
Cone Width Tolerance -0.15mm to 0
Cup Width 14 mm
Cup Width Tolerance -0.2mm to 0
Width 20 mm
Width Tolerance +0.2mm to -0.2mm
Cone Backface ToClear Radius 5.08 mm
Cup Backface ToClear Radius 2.54 mm
Cone Frontface Backing Diameter 102 mm
Cone Backface Backing Diameter 111 mm
Cup Frontface Backing Diameter 130.00 mm
Cup Backface Backing Diameter 122.94 mm
Cage Cone Frontface Clearance 2 mm
Cage Cone Backface Clearance 2 mm
Effective Center Location 10.9 mm
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series L819300
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 22140 lbf
Static Radial Load 29925 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 5737.5 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5737.5 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 1.98 lb
