Product Parameters

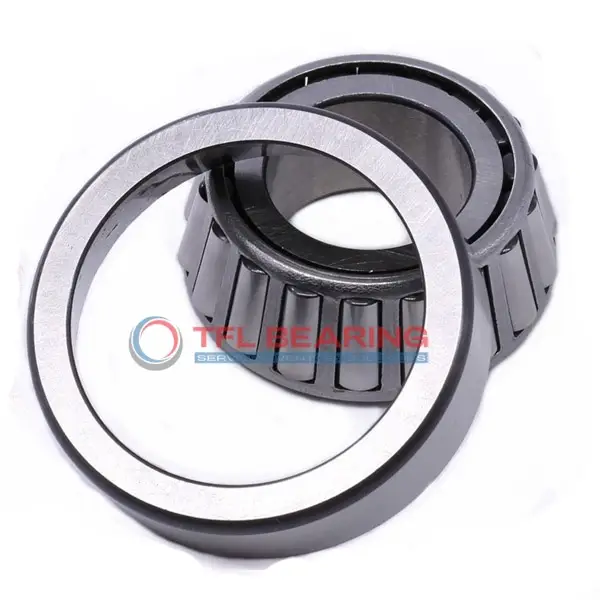

Part Number JHM534149-JHM534110
Brand TFL
Interchangeable Brand Timken
System of Measurement Metric
Type Bearing
Sizes 170 mm x 230 mm x 39 mm
Cone Part Number JHM534149
Cup Part Number JHM534110
Bore Dia 170 mm
Bore Dia Tolerance -0.025mm to 0
Outer Dia 230 mm
Outer Dia Tolerance -0.03mm to 0
Cone Width 38 mm
Cone Width Tolerance -0.2mm to 0
Cup Width 31 mm
Cup Width Tolerance -0.25mm to 0
Width 39 mm
Width Tolerance +0.35mm to -0.25mm
Cone Backface ToClear Radius 3.05 mm
Cup Backface ToClear Radius 2.54 mm
Cone Frontface Backing Diameter 178 mm
Cone Backface Backing Diameter 184 mm
Cup Frontface Backing Diameter 224.54 mm
Cup Backface Backing Diameter 216.92 mm
Cage Cone Frontface Clearance 4.1 mm
Cage Cone Backface Clearance 0.5 mm
Effective Center Location 4.6 mm
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series HM534100
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 75375 lbf
Static Radial Load 132750 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 19530 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 12802.5 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 9.48 lb
