Product Parameters

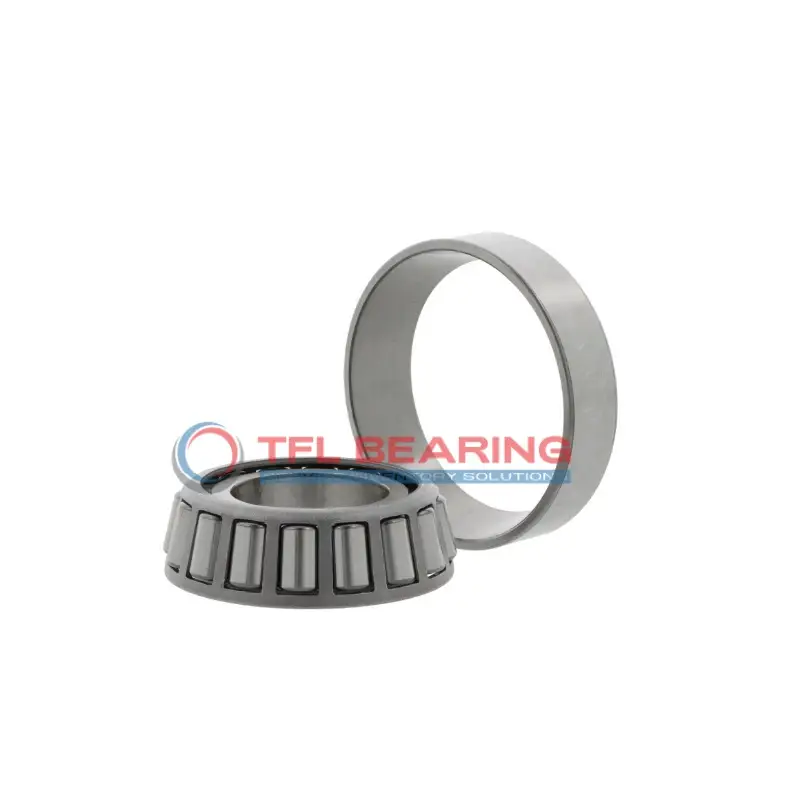

Part Number JHM522649C-JHM522610
Brand TFL
Interchangeable Brand Timken
System of Measurement Metric
Type Bearing
Sizes 110 mm x 180 mm x 47 mm
Cone Part Number JHM522649C
Cup Part Number JHM522610
Bore Dia 110 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 180 mm
Outer Dia Tolerance -0.025mm to 0
Cone Width 46 mm
Cone Width Tolerance -0.15mm to 0
Cup Width 38 mm
Cup Width Tolerance -0.2mm to 0
Width 47 mm
Width Tolerance +0.2mm to -0.2mm
Cone Backface ToClear Radius 3.05 mm
Cup Backface ToClear Radius 2.54 mm
Cone Frontface Backing Diameter 122 mm
Cone Backface Backing Diameter 127 mm
Cup Frontface Backing Diameter 172 mm
Cup Backface Backing Diameter 162.05 mm
Cage Cone Frontface Clearance 4.6 mm
Cage Cone Backface Clearance 2 mm
Effective Center Location -5.8 mm
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series HM522600
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 99000 lbf
Static Radial Load 124650 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 25650 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 17820 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 9.92 lb
