Product Parameters

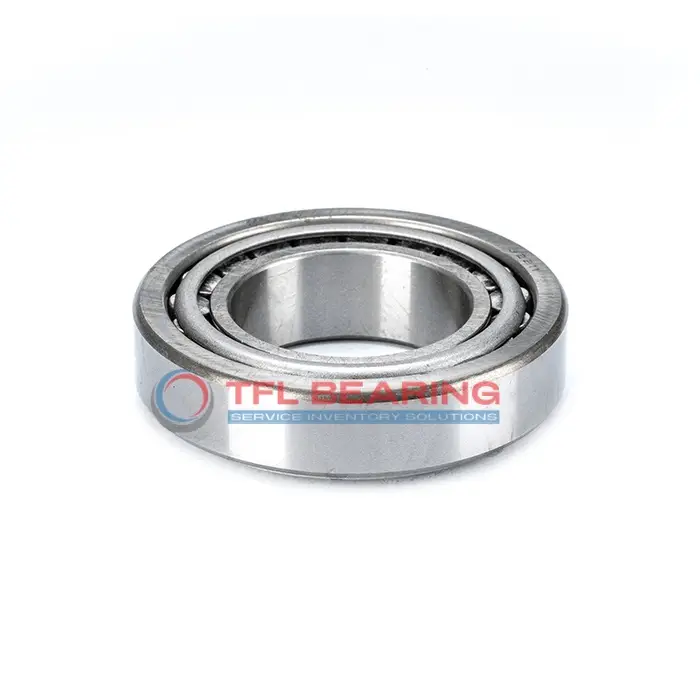

Part Number JHM318448-JHM318410
Brand TFL
Interchangeable Brand Timken
System of Measurement Metric
Type Bearing
Sizes 90 mm x 155 mm x 44 mm
Cone Part Number JHM318448
Cup Part Number JHM318410
Bore Dia 90 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 155 mm
Outer Dia Tolerance -0.025mm to 0
Cone Width 44 mm
Cone Width Tolerance -0.15mm to 0
Cup Width 35.5 mm
Cup Width Tolerance -0.2mm to 0
Width 44 mm
Width Tolerance +0.2mm to -0.2mm
Cone Backface ToClear Radius 3.05 mm
Cup Backface ToClear Radius 2.54 mm
Cone Frontface Backing Diameter 100 mm
Cone Backface Backing Diameter 106 mm
Cup Frontface Backing Diameter 149.10 mm
Cup Backface Backing Diameter 139.95 mm
Cage Cone Frontface Clearance 3.8 mm
Cage Cone Backface Clearance 0.8 mm
Effective Center Location -9.9 mm
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series HM318400
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 88200 lbf
Static Radial Load 100575 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 22950 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 13365 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 7.28 lb
