Product Parameters

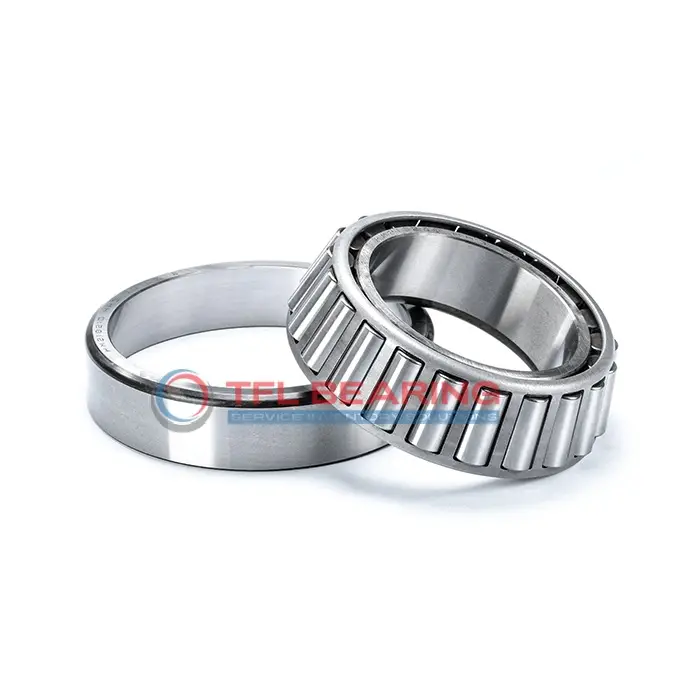

Part Number 33018
Brand TFL
Interchangeable Brand Timken
System of Measurement Metric
Type Bearing
Sizes 90 mm x 140 mm x 39 mm
Cone Part Number X33018
Cup Part Number Y33018
Bore Dia 90 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 140 mm
Outer Dia Tolerance -0.02mm to 0
Cone Width 39 mm
Cone Width Tolerance -0.15mm to 0
Cup Width 32.5 mm
Cup Width Tolerance -0.2mm to 0
Width 39 mm
Width Tolerance +0.2mm to -0.2mm
Cone Backface ToClear Radius 2.03 mm
Cup Backface ToClear Radius 1.52 mm
Cone Frontface Backing Diameter 98 mm
Cone Backface Backing Diameter 101 mm
Cup Frontface Backing Diameter 134.90 mm
Cup Backface Backing Diameter 131.06 mm
Cage Cone Frontface Clearance 3 mm
Cage Cone Backface Clearance 1.3 mm
Effective Center Location -10.9 mm
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 33018
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 65925 lbf
Static Radial Load 84825 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 17100 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7875 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 4.85 lb
