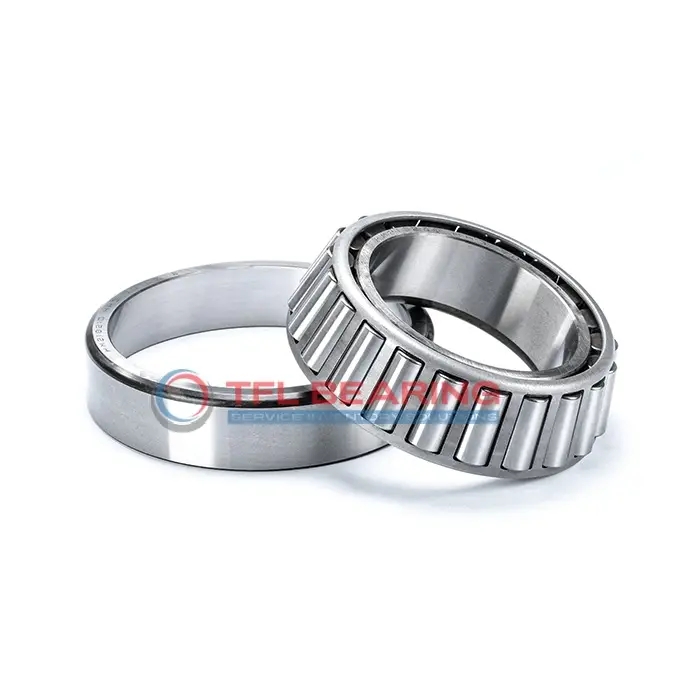

The HM807046-HM807010-B is a single-row tapered roller bearing with a flange, measuring 2″ in bore and 4.125″ in outer diameter. Made from sturdy chrome steel, it handles combined loads up to 45700 lbf radial and 9890 lbf thrust.
Its flanged cup design keeps it securely in place, while the open seal allows for easy lubrication. The bearing operates smoothly in temperatures from -30°C to 110°C.
This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like truck axles or industrial gearboxes where combined loads are common.
Weighing 3.5 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.
"*" indicates required fields
Performance Features of HM807046-HM807010-B Bearing
HM807046-HM807010-B Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 45700 lbf, ensuring reliable performance in demanding conditions.
The flanged cup design provides better alignment and stability during operation.
With a temperature range of -30° to 110°C, it performs well in various environments.
How Is HM807046-HM807010-B Bearing Engineered for Reliability?
HM807046-HM807010-B Bearing features a single-row tapered roller design, optimised for combined load handling.
The steel cage maintains proper roller alignment, reducing friction and wear.
Its dynamic thrust rating of 9890 lbf ensures smooth operation under heavy loads.
The standard radial clearance allows for flexibility in different applications.
Designed for Durability: HM807046-HM807010-B Bearing
HM807046-HM807010-B Bearing’s chrome steel construction enhances its resistance to wear and fatigue.
The flanged cup adds extra support, making it suitable for high-stress applications.
With a static radial load capacity of 50200 lbf, it delivers long-lasting performance.
Its ABEC-1 rating ensures consistent precision in operation.
Steel vs Ceramic Bearings: Strengths of HM807046-HM807010-B Bearing
HM807046-HM807010-B Bearing uses chrome steel for both rings and rollers, providing excellent strength.
The tapered roller design efficiently handles combined radial and thrust loads.
Its effective centre location of -0.29″ ensures optimal load distribution.
The bearing requires lubrication but offers reliable performance across a wide temperature range.
Industrial Uses of HM807046-HM807010-B Bearing
HM807046-HM807010-B Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. The flanged cup adds stability, making it suitable for applications with high radial and axial forces.
In automotive systems, HM807046-HM807010-B Bearing supports wheel hubs and differential assemblies, ensuring smooth performance under varying loads. Its inch sizing makes it a reliable choice for American and British vehicle models.
For industrial conveyors, HM807046-HM807010-B Bearing’s chrome steel construction provides durability in high-load environments. The open design allows for easy lubrication, extending its service life in demanding conditions.
Where Is HM807046-HM807010-B Bearing Used?
You’ll often find HM807046-HM807010-B Bearing in agricultural machinery, like tractors and harvesters, where its robust design handles rough terrain. The tapered rollers ensure efficient load distribution, reducing wear over time.
In manufacturing plants, HM807046-HM807010-B Bearing is ideal for gearboxes and pulley systems, thanks to its high dynamic radial load capacity. The steel cage enhances its reliability in continuous operation.
Built for Heavy-Duty Use: HM807046-HM807010-B Bearing
HM807046-HM807010-B Bearing excels in forestry equipment, such as log splitters and sawmills, where its combined load capability is crucial. The flanged cup prevents misalignment, ensuring consistent performance.
For railway applications, HM807046-HM807010-B Bearing supports axle boxes, providing stability and reducing maintenance needs. Its standard radial clearance options make it adaptable to various operational conditions.
Automotive vs Aerospace: Applications of HM807046-HM807010-B Bearing
In automotive systems, HM807046-HM807010-B Bearing is trusted for drivetrain components, offering reliable performance under high stress. Its inch measurements align with standard automotive specifications.
For aerospace ground equipment, HM807046-HM807010-B Bearing handles heavy loads in tow tractors and cargo loaders. The chrome steel rollers ensure durability in demanding environments.
