Product Parameters

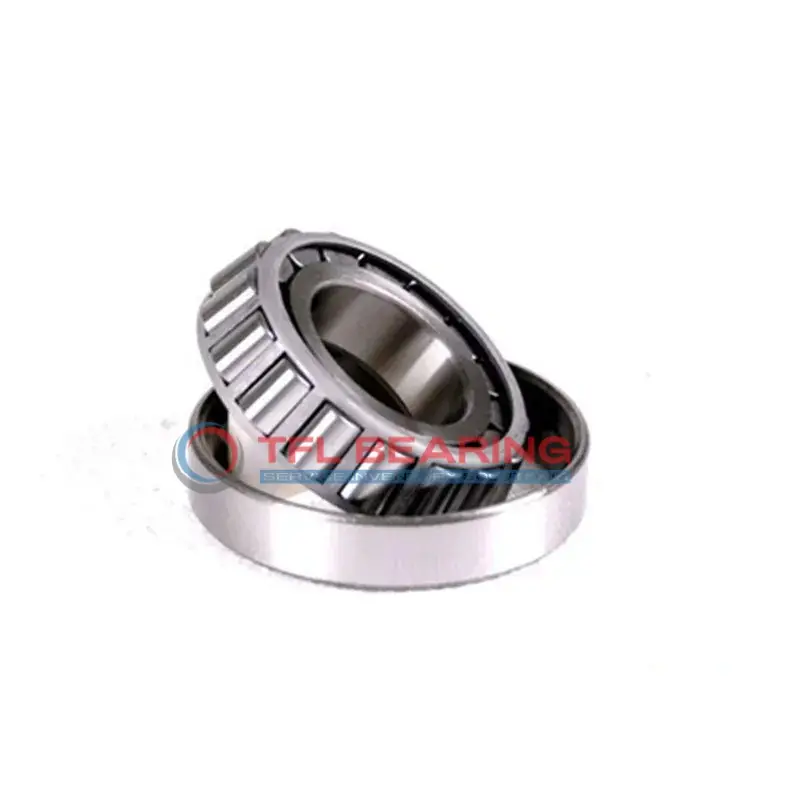

Part Number 32038X
Brand TFL
Interchangeable Brand Timken
System of Measurement Metric
Type Bearing
Sizes 190 mm x 290 mm x 64 mm
Cone Part Number X32038XM
Cup Part Number Y32038XM
Bore Dia 190 mm
Bore Dia Tolerance -0.03mm to 0
Outer Dia 290 mm
Outer Dia Tolerance -0.035mm to 0
Cone Width 64 mm
Cone Width Tolerance -0.2mm to 0
Cup Width 48 mm
Cup Width Tolerance -0.25mm to 0
Width 64 mm
Width Tolerance +0.35mm to -0.25mm
Cone Backface ToClear Radius 3.05 mm
Cup Backface ToClear Radius 2.54 mm
Cone Frontface Backing Diameter 207 mm
Cone Backface Backing Diameter 214 mm
Cup Frontface Backing Diameter 281.94 mm
Cup Backface Backing Diameter 266.95 mm
Cage Cone Frontface Clearance 4.3 mm
Cage Cone Backface Clearance 6.6 mm
Effective Center Location -0.5 mm
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 32038XM
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 161775 lbf
Static Radial Load 290250 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 41850 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 31725 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 32.19 lb
