Product Parameters

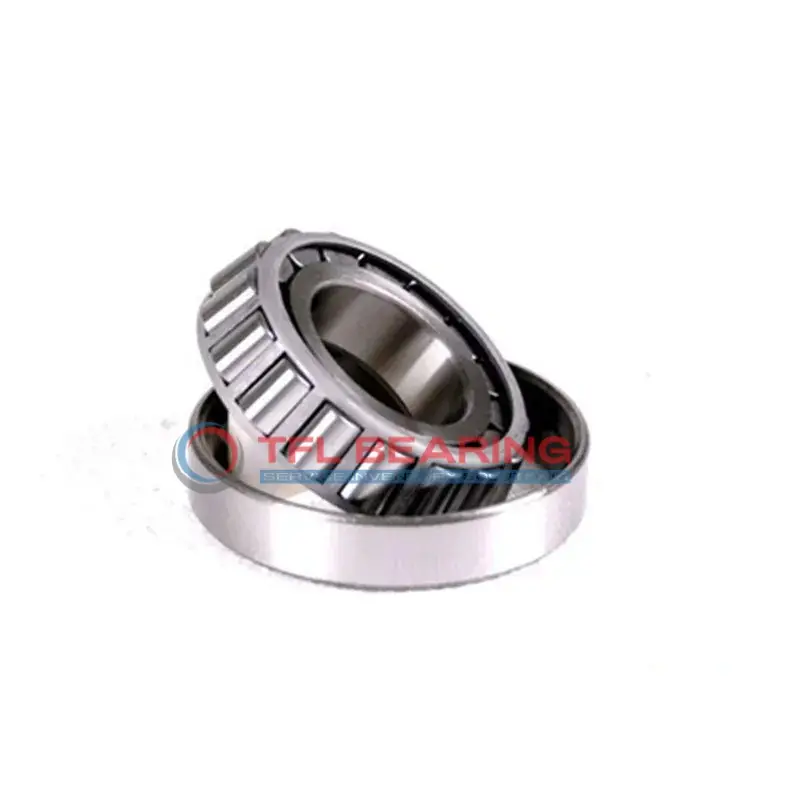

Part Number 32036X
Brand TFL
Interchangeable Brand Timken
System of Measurement Metric
Type Bearing
Sizes 180 mm x 280 mm x 64 mm
Cone Part Number X32036XM
Cup Part Number Y32036XM
Bore Dia 180 mm
Bore Dia Tolerance -0.025mm to 0
Outer Dia 280 mm
Outer Dia Tolerance -0.035mm to 0
Cone Width 64 mm
Cone Width Tolerance -0.2mm to 0
Cup Width 48 mm
Cup Width Tolerance -0.25mm to 0
Width 64 mm
Width Tolerance +0.35mm to -0.25mm
Cone Backface ToClear Radius 3.05 mm
Cup Backface ToClear Radius 2.54 mm
Cone Frontface Backing Diameter 197 mm
Cone Backface Backing Diameter 203 mm
Cup Frontface Backing Diameter 271.00 mm
Cup Backface Backing Diameter 256.03 mm
Cage Cone Frontface Clearance 4.3 mm
Cage Cone Backface Clearance 6.6 mm
Effective Center Location -3.6 mm
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 32036XM
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 159075 lbf
Static Radial Load 279000 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 41175 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 29925 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 30.86 lb
