Product Parameters

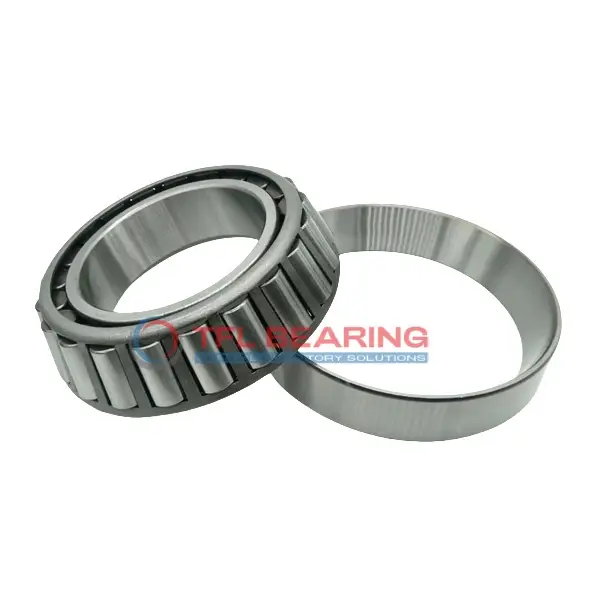

Part Number 30224
Brand TFL
Interchangeable Brand Timken
System of Measurement Metric
Type Bearing
Sizes 120 mm x 215 mm x 43.5 mm
Cone Part Number X30224M
Cup Part Number Y30224M
Bore Dia 120 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 215 mm
Outer Dia Tolerance -0.03mm to 0
Cone Width 40 mm
Cone Width Tolerance -0.15mm to 0
Cup Width 34 mm
Cup Width Tolerance -0.25mm to 0
Width 43.5 mm
Width Tolerance +0.2mm to -0.2mm
Cone Backface ToClear Radius 3.05 mm
Cup Backface ToClear Radius 2.54 mm
Cone Frontface Backing Diameter 136 mm
Cone Backface Backing Diameter 140 mm
Cup Frontface Backing Diameter 201.17 mm
Cup Backface Backing Diameter 195.07 mm
Cage Cone Frontface Clearance 5.8 mm
Cage Cone Backface Clearance 3.8 mm
Effective Center Location 0.3 mm
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 30224M
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 89100 lbf
Static Radial Load 114300 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 23175 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 17212.5 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 13.67 lb
