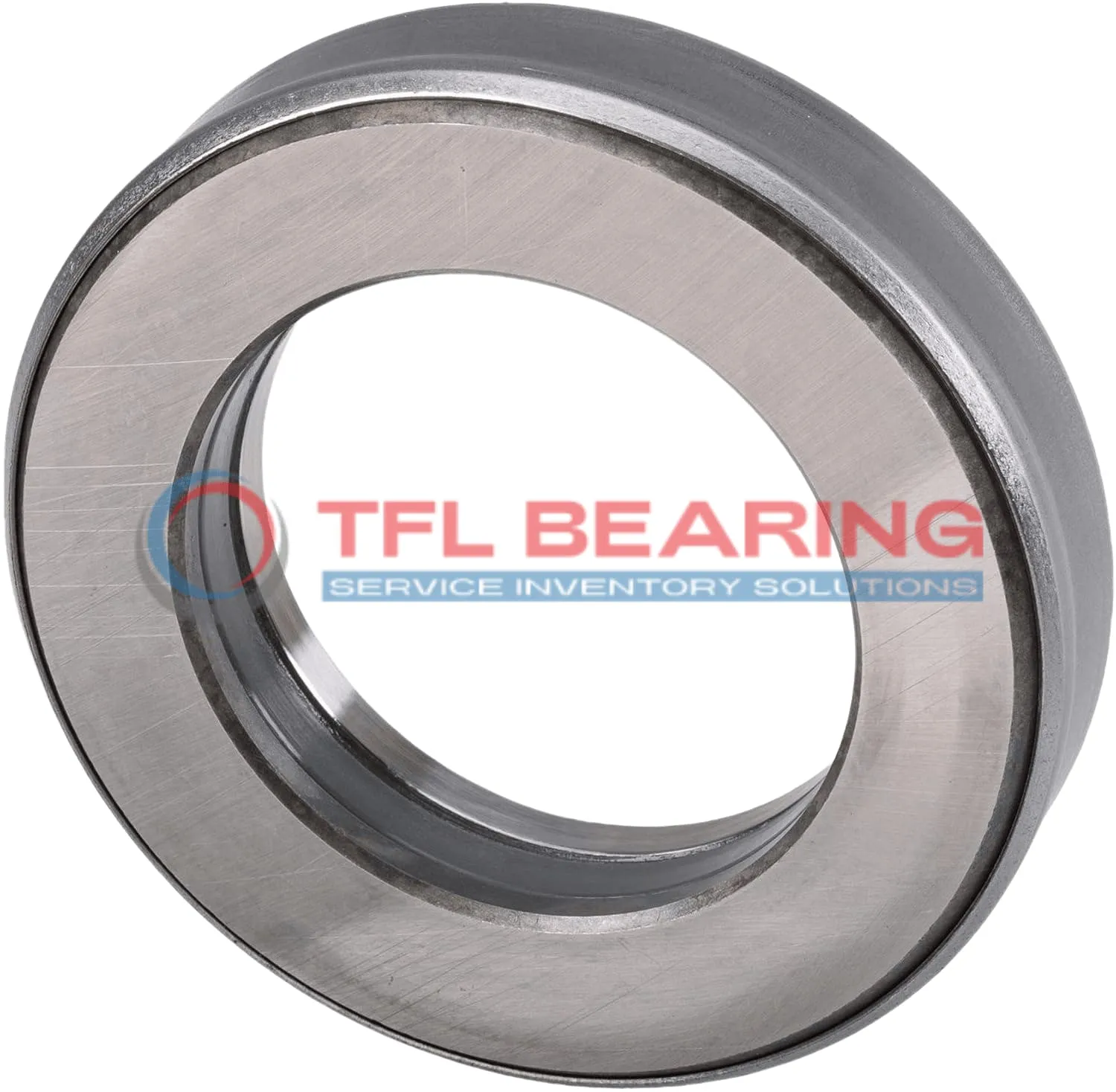

Thrust Ball Bearing With Outside Band T-100-53
Thrust Ball Bearing With Outside Band T-100-53

Thrust Ball Bearing With Outside Band T-100-53

The T-100-53 is a thrust ball bearing measuring 4.44″ in bore diameter and 6.88″ in outer diameter, with a width of 2.25″. Made from durable 52100 chrome steel, it handles heavy thrust loads up to 28,840 lbf.

Its outside band design provides stability, while the 20 steel balls ensure smooth operation. The bearing requires lubrication for optimal performance and works in temperatures from -30°C to 110°C.

With a static load capacity of 136,814 lbf, it’s built for demanding applications. Ideal for industrial machinery or heavy equipment where high thrust loads are common.

Weighing 5.82kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, making it a reliable choice for various industries.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number T-100-53
  • Brand TFL
  • Bore Dia 4.437500"
  • Bore Dia Tolerance +0.003" to +0.007"
  • Inner Dia Housing Washer 4.5"
  • Outer Dia 6.875000"
  • Outer Dia Tolerance -0.031" to +0.031"
  • Width 2.25"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 7/8"
  • Ball Qty 20
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 28840 lbf
  • Dynamic Thrust Load(100 RPM) 18990 lbf
  • Dynamic Thrust Load(500 RPM) 11700 lbf
  • Static Thrust Load 136814 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.82 kg

Features

Why Choose T-100-53 Bearing for Precision Tasks?

T-100-53 Bearing is crafted from 52100 chrome steel, ensuring durability and resistance to wear.

Its dynamic thrust load capacity reaches 28,840 lbf, making it suitable for heavy-duty applications.

The bearing’s precise dimensions, including a 4.4375″ bore and 6.875″ outer diameter, ensure a perfect fit.

With a temperature range of -30° to 110°C, T-100-53 Bearing performs reliably in various conditions.

Application

Industrial Uses of T-100-53 Bearing
T-100-53 Bearing is commonly used in heavy machinery, such as hydraulic presses and industrial gearboxes, where its high thrust load capacity is essential. The inch sizing makes it a good fit for equipment designed to imperial standards.

In automotive applications, T-100-53 Bearing handles demanding loads in components like drivetrains and steering systems. Its chrome steel construction ensures durability even under continuous stress.

For automation systems, T-100-53 Bearing provides reliable performance in robotic arms and assembly line equipment. The precise tolerances help maintain smooth operation in repetitive tasks.

Medical imaging devices benefit from T-100-53 Bearing’s stability, particularly in CT scanners where consistent movement is critical. The material choice also resists wear in high-use environments.

Around the home, T-100-53 Bearing can be found in heavy-duty appliances like washing machines, where its load-bearing capacity supports spinning mechanisms. The lubrication requirement ensures long-term performance with minimal maintenance.
