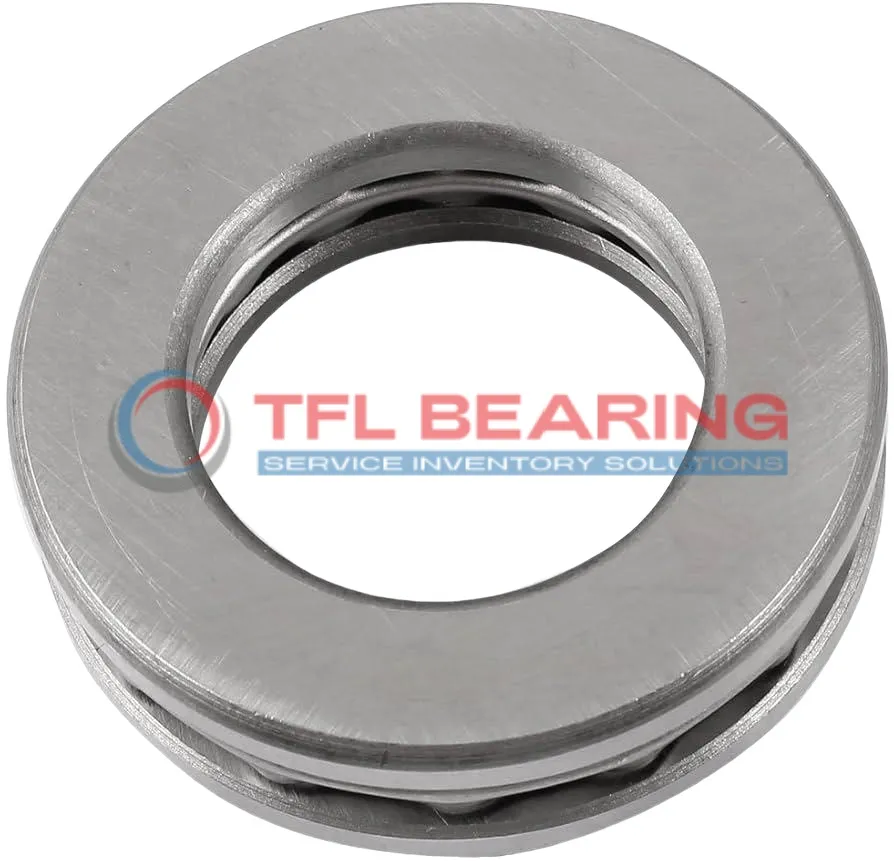

The T-100-46 is a thrust ball bearing measuring 2.44″ in bore diameter and 4.63″ in outer diameter, crafted from durable 52100 chrome steel. It handles thrust loads up to 16875 lbf and performs well across various speeds, from 100 to 1500 RPM.
Its outside band design ensures stability, while the 16 steel balls provide smooth operation. Regular lubrication is needed to maintain performance in temperatures ranging from -30°C to 110°C.
This bearing is RoHS and REACH compliant, making it safe for industrial use. Weighing 2.09kg, it’s sturdy yet manageable for applications like heavy machinery or automotive systems where thrust loads are common.
"*" indicates required fields
How Is T-100-46 Bearing Engineered for Reliability?
T-100-46 Bearing features 52100 chrome steel rings and balls, offering strong resistance to high thrust loads.
Its dynamic thrust load capacity reaches 16,875 lbf, ensuring dependable performance in heavy-duty applications.
The bearing’s precise dimensions, with a bore diameter of 2.4375″, ensure a secure fit and smooth operation.
With a temperature range of -30° to 110°C, it performs reliably in various environmental conditions.
T-100-46 Bearing requires lubrication, which helps maintain its efficiency and extends its service life.
Its robust construction and material quality make it a reliable choice for demanding industrial uses.
Key Fields for T-100-46 Bearing
T-100-46 Bearing is commonly used in industrial settings, especially for heavy machinery like hydraulic presses and gear reducers. Its inch sizing makes it a good fit for equipment designed to imperial measurements.
In automotive applications, T-100-46 Bearing handles thrust loads in components such as steering systems and transmissions. The chrome steel construction ensures durability even under high stress.
For automation systems, T-100-46 Bearing provides reliable performance in robotic arms and assembly line equipment. The precise tolerances help maintain smooth operation over long periods.
Medical devices like dental drills also benefit from T-100-46 Bearing’s consistent load handling. The required lubrication ensures minimal friction, which is crucial for precision tools.
Around the house, T-100-46 Bearing can be found in heavy-duty appliances like washing machines. Its robust design helps withstand frequent use without compromising performance.
