The T-100-41A is a sturdy thrust ball bearing with a 1.94-inch bore and 4-inch outer diameter, crafted from durable 52100 chrome steel. It manages thrust loads up to 14,690 lbf and performs well across various speeds, from 100 to 1500 RPM.
Its design includes an outside band for added stability, and it requires regular lubrication for optimal performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.
With 13 balls measuring 11/16 inches each, it ensures even load distribution. Weighing 1.63 kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial applications.
Ideal for machinery with high thrust loads, such as pumps or heavy equipment, where durability and precision are key. Its inch measurements make it suitable for systems using imperial units.
"*" indicates required fields
How Does T-100-41A Bearing Handle Heavy Loads?
T-100-41A Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 14690 lbf, making it suitable for demanding industrial applications.
The bearing’s precise ball alignment ensures smooth operation even under heavy pressure.
With a static thrust load of 54900 lbf, it delivers reliable performance in various conditions.
What Makes T-100-41A Bearing Durable?
T-100-41A Bearing uses high-quality 52100 chrome steel for both rings and balls, enhancing its durability.
The material choice ensures resistance to wear, even in high-load and high-speed scenarios.
Its design includes 13 balls, each with a diameter of 11/16″, optimising load distribution.
This construction extends the bearing’s service life while maintaining consistent performance.
Engineered for Precision: T-100-41A Bearing

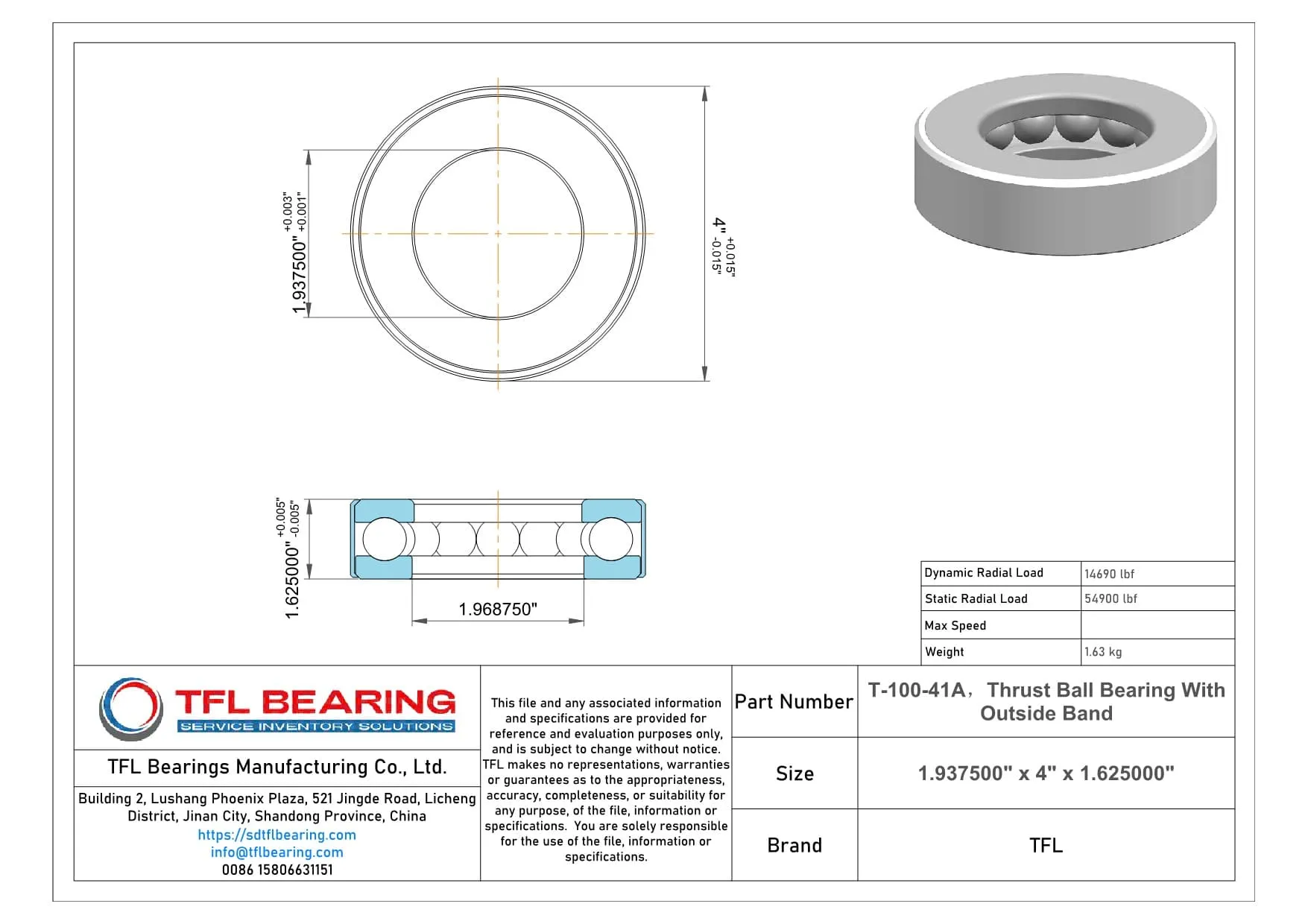

T-100-41A Bearing features tight tolerances, with bore diameter precision of +0.001″ to +0.003″.
The outer diameter tolerance ranges from -0.015″ to +0.015″, ensuring a perfect fit in various applications.
Its width tolerance of -0.005″ to +0.005″ further enhances its precision engineering.
These specifications make it ideal for applications requiring exact measurements and reliable operation.
Performance Features of T-100-41A Bearing
T-100-41A Bearing operates efficiently within a temperature range of -30° to 110 °C.
Its dynamic thrust load varies with speed, from 9675 lbf at 100 RPM to 4280 lbf at 1500 RPM.
The bearing requires lubrication to maintain optimal performance and reduce friction.
Its compliance with RoHS and REACH standards ensures environmental and safety considerations are met.
Why Choose T-100-41A Bearing for Precision Tasks?
T-100-41A Bearing’s inch-based measurements provide compatibility with systems requiring imperial units.
The bearing’s outside band design adds stability, making it suitable for precise thrust applications.
Its weight of 1.63 kg balances sturdiness and ease of handling during installation.
The combination of these features makes it a dependable choice for precision engineering tasks.
Common Applications of T-100-41A Bearing
T-100-41A Bearing is widely used in industrial settings, especially in heavy machinery like hydraulic presses and gearboxes, where its high thrust load capacity is essential. The inch sizing makes it a good fit for equipment designed to imperial standards.
In automotive applications, T-100-41A Bearing handles demanding loads in components such as steering systems and transmissions. Its chrome steel construction ensures durability even under constant stress.
For automation systems, T-100-41A Bearing provides reliable performance in robotic arms and assembly lines. The precise tolerances help maintain smooth operation in high-speed environments.
Medical devices like MRI machines benefit from T-100-41A Bearing’s consistent performance and resistance to wear. Its compliance with RoHS and REACH standards makes it safe for sensitive environments.
Around the home, T-100-41A Bearing can be found in heavy-duty appliances like washing machines, where its robust design handles frequent use with ease. The lubrication requirement ensures long-term reliability.
