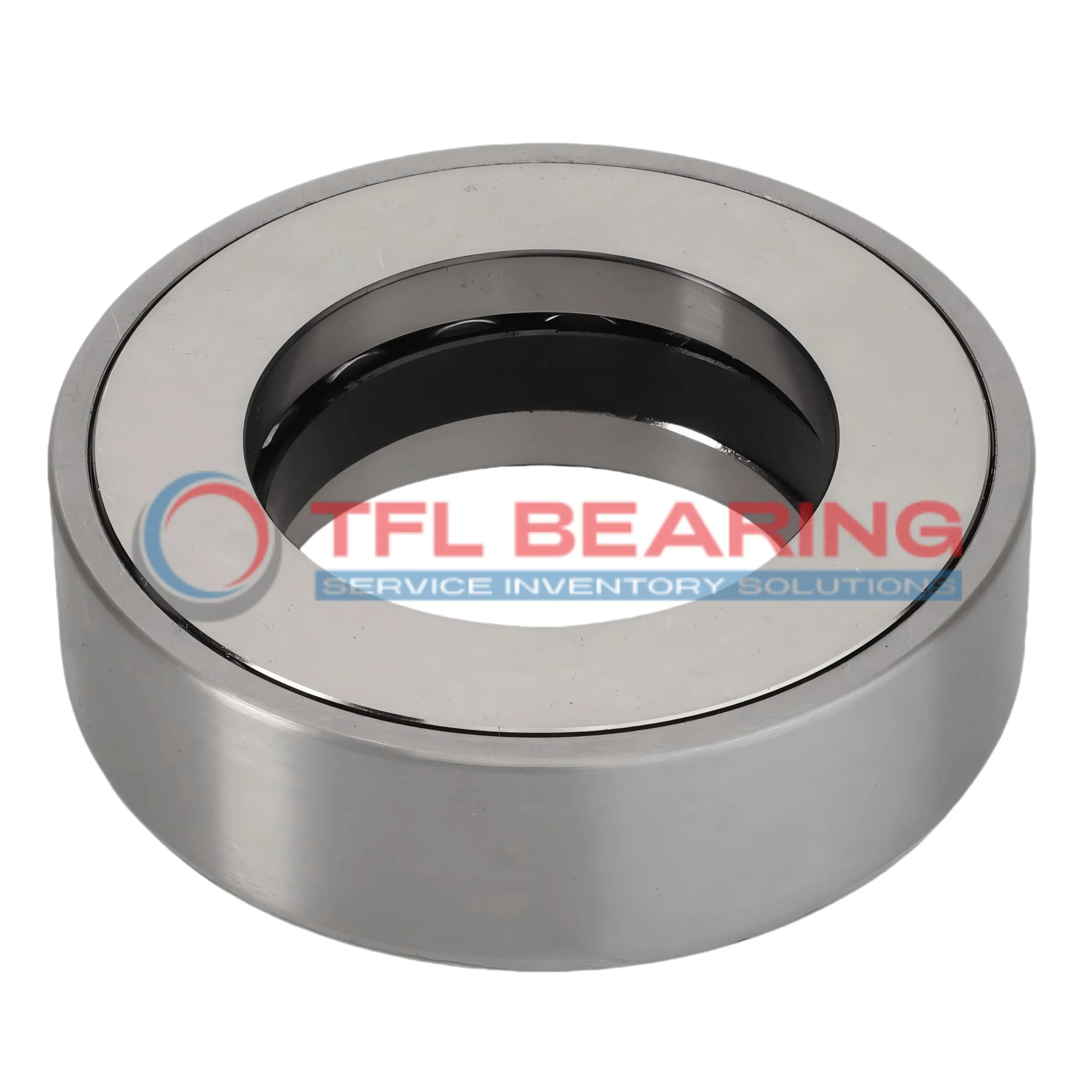

Thrust Ball Bearing With Outside Band T-100-19A
Thrust Ball Bearing With Outside Band T-100-19A

Thrust Ball Bearing With Outside Band T-100-19A

The T-100-19A is a thrust ball bearing with a 1.375-inch bore and 2.5-inch outer diameter, crafted from durable 52100 chrome steel. It handles thrust loads up to 5730 lbf and operates smoothly across various speeds, from 100 to 1500 RPM.

Its outside band design ensures stability, while the 3/8-inch steel balls provide reliable performance. The bearing requires regular lubrication for optimal use and works in temperatures from -30°C to 110°C.

With a weight of 0.34kg, it’s sturdy yet manageable for industrial applications. Compliant with RoHS and REACH standards, it’s a safe choice for machinery like pumps or gearboxes where thrust loads are common.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number T-100-19A
  • Brand TFL
  • Bore Dia 1.375000"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.406250"
  • Outer Dia 2.5"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.937500"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 3/8"
  • Ball Qty 16
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 5730 lbf
  • Dynamic Thrust Load(100 RPM) 3775 lbf
  • Dynamic Thrust Load(500 RPM) 2325 lbf
  • Dynamic Thrust Load(1500 RPM) 1670 lbf
  • Static Thrust Load 20103 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.34 kg

Features

How Does T-100-19A Bearing Handle Heavy Loads?

T-100-19A Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to high thrust loads.
Its static thrust load capacity reaches 20103 lbf, making it suitable for heavy-duty applications.

The bearing’s 16-ball design ensures even load distribution, enhancing durability and performance.
With a temperature range of -30° to 110°C, it operates reliably in various conditions.

T-100-19A Bearing requires lubrication, ensuring smooth operation and extended service life.
Its inch measurements and precise tolerances make it compatible with a wide range of machinery.

Application

Industrial Uses of T-100-19A Bearing
T-100-19A Bearing is commonly used in heavy machinery, such as hydraulic pumps and gearboxes, where its high thrust load capacity ensures reliable performance. The inch sizing makes it a suitable fit for equipment designed to imperial standards.

Where Is T-100-19A Bearing Used?
You’ll often find T-100-19A Bearing in automotive applications like steering systems, where its durability handles constant axial loads. Its chrome steel construction also makes it resistant to wear in high-stress conditions.

Built for Heavy-Duty Use: T-100-19A Bearing
T-100-19A Bearing excels in industrial fans and compressors, thanks to its ability to manage dynamic thrust loads up to 5730 lbf. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of T-100-19A Bearing
In automotive settings, T-100-19A Bearing supports clutch assemblies, while in aerospace, it’s used in auxiliary systems where precision and reliability are key. The wide temperature range ensures performance in varying conditions.

Perfect Fit for Automation: T-100-19A Bearing
T-100-19A Bearing is ideal for robotic arms and conveyor systems, where its smooth operation reduces friction. The stainless steel components add to its longevity in continuous-use environments.
