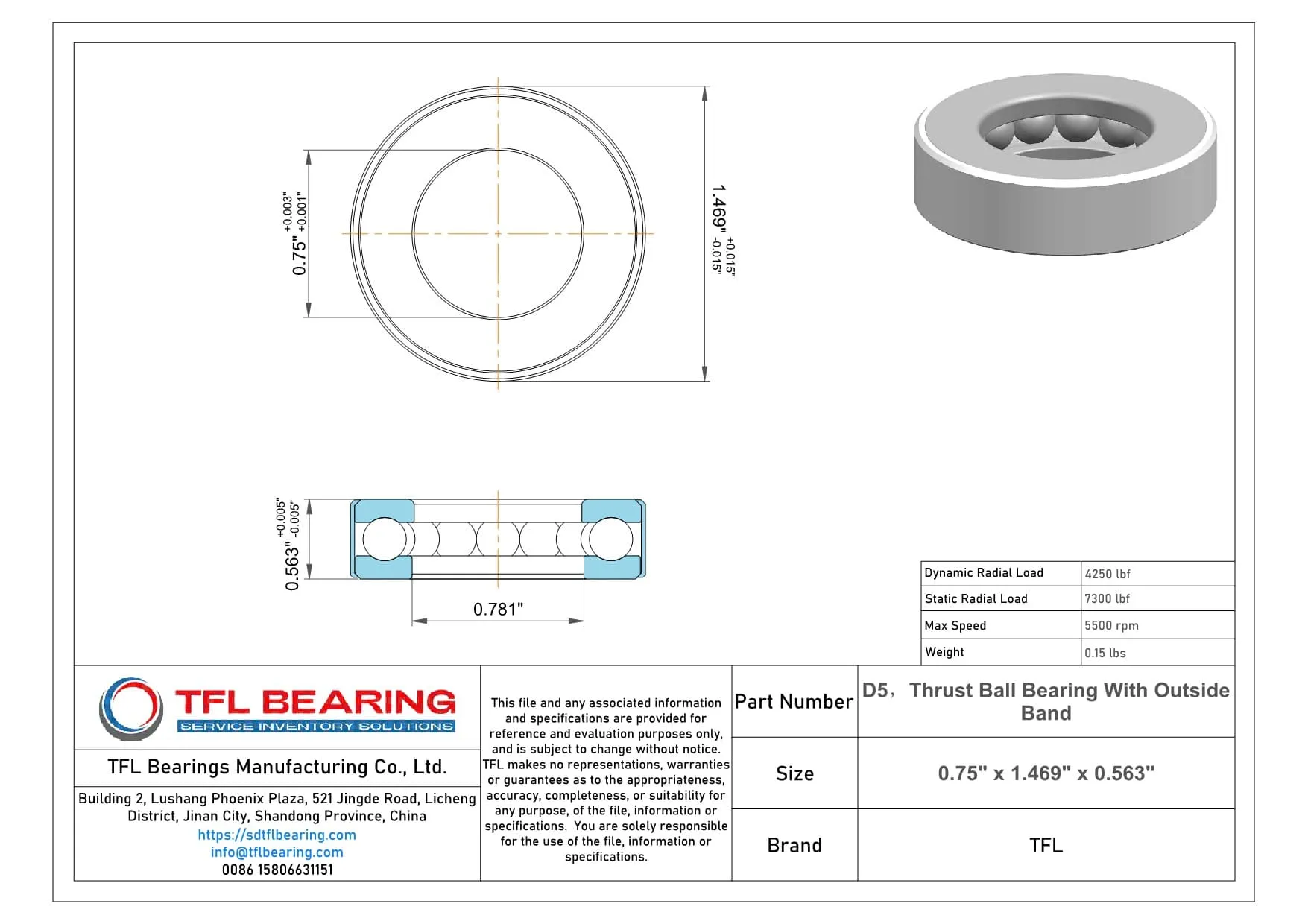

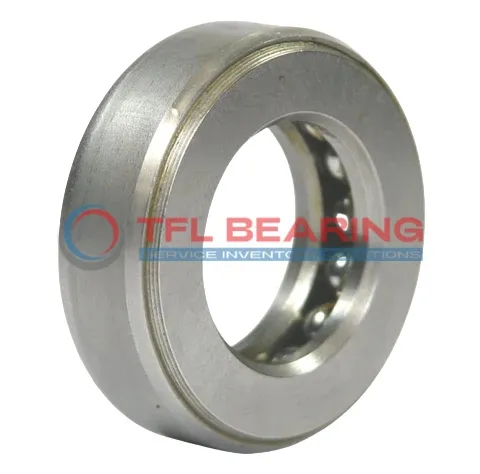

The D5 thrust ball bearing is a compact unit measuring 0.75″ by 1.469″ by 0.563″, crafted from durable 52100 chrome steel. It handles thrust loads up to 4250 lbf and operates smoothly at speeds up to 5500 RPM.
Its outside band design provides stability, while the chrome steel construction ensures long-lasting performance. Regular lubrication is needed to maintain optimal function.
This bearing works well in temperatures from -30°C to 110°C, making it suitable for various industrial settings. It’s commonly used in machinery where space is limited but reliable thrust support is essential.
Weighing just 0.15 lbs, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for most applications.
"*" indicates required fields
Why Choose D5 Bearing for Precision Tasks?
D5 Bearing is crafted from 52100 chrome steel, offering robust performance in thrust applications.
Its dynamic thrust load capacity of 4250 lbf ensures reliable operation under pressure.
The precise tolerances of D5 Bearing, including bore and outer diameter, enhance its fit and function.
With a maximum speed of 5,500 rpm, it delivers consistent performance in various conditions.
D5 Bearing operates efficiently within a temperature range of -30° to 110°C, suitable for diverse environments.
Regular lubrication ensures smooth operation and extends the bearing’s service life.
Industrial Uses of D5 Bearing
D5 Bearing is commonly used in industrial settings, especially in machinery that handles axial loads, such as hydraulic pumps and gear reducers. Its inch sizing makes it a good fit for equipment designed to imperial measurements.
Where Is D5 Bearing Used?
You’ll often find D5 Bearing in automotive applications like steering systems, where its thrust load capacity ensures reliable performance. The chrome steel construction also helps it withstand frequent use.
Built for Heavy-Duty Use: D5 Bearing
D5 Bearing works well in heavy machinery, such as construction equipment, thanks to its robust design and high static thrust load rating. The lubrication requirement ensures smooth operation over time.
Automotive vs Industrial: Applications of D5 Bearing
In automotive systems, D5 Bearing supports components like transmissions, while in industrial settings, it’s used in conveyor systems. Its versatility makes it a practical choice for both fields.
Perfect Fit for Automation: D5 Bearing
D5 Bearing is suitable for automated machinery, including robotic arms, where precise axial load handling is needed. The temperature range allows it to perform reliably in various environments.
