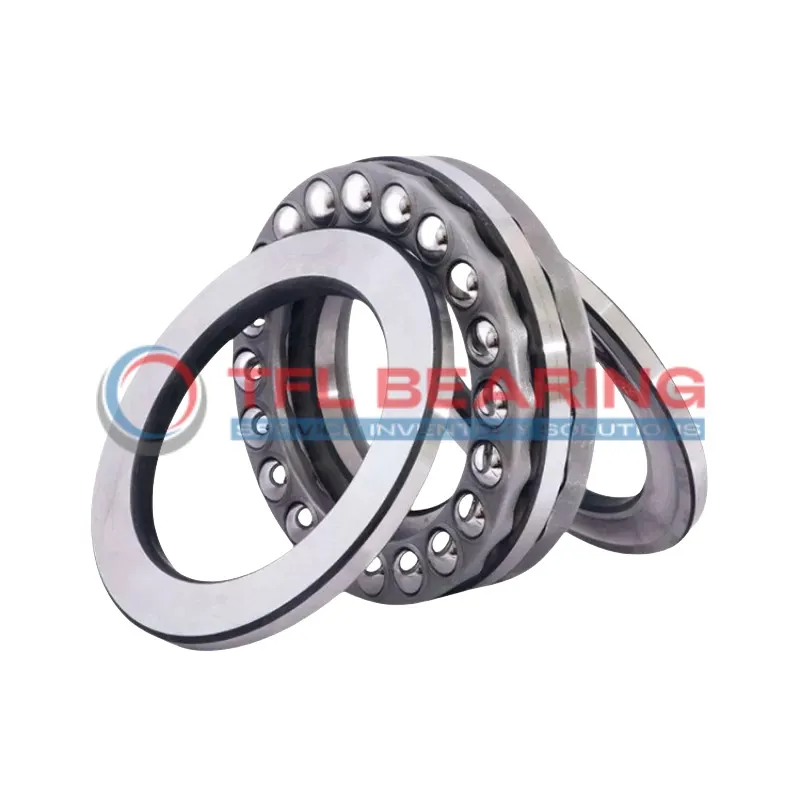

Thrust Ball Bearing With Outside Band D24
Thrust Ball Bearing With Outside Band D24

Thrust Ball Bearing With Outside Band D24

The D24 thrust ball bearing is a compact unit measuring 1.938″ in bore diameter and 3.219″ in outer diameter, with a width of 0.813″. Made from durable 52100 chrome steel, it’s built to handle heavy thrust loads up to 10800 lbf.

Its robust design ensures smooth operation at speeds up to 2200 RPM, making it suitable for demanding applications. The bearing requires regular lubrication to maintain optimal performance.

With a static thrust load capacity of 27500 lbf, it’s ideal for machinery that experiences high axial forces. Its temperature range of -30°C to 110°C allows for use in various environments.

Compliant with RoHS and REACH standards, this bearing is a reliable choice for industrial equipment, gearboxes, or any application where thrust loads are a concern. Weighing just 0.91 lbs, it’s both sturdy and easy to handle.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number D24
  • Brand TFL
  • Bore Dia 1.938"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.969"
  • Outer Dia 3.219"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.813"
  • Width Tolerance -0.005" to +0.005"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 10800 lbf
  • Static Thrust Load 27500 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2200 rpm
  • Weight 0.91 lbs

Features

How Does D24 Bearing Handle Heavy Loads?

D24 Bearing is crafted from 52100 chrome steel, offering robust resistance to high thrust loads.
Its static thrust load capacity reaches 27,500 lbf, making it suitable for demanding industrial applications.
The precise tolerances in bore and outer diameters ensure a secure fit and smooth operation.
With a maximum speed of 2,200 rpm, it delivers reliable performance under pressure.

Designed for Durability: D24 Bearing

D24 Bearing’s chrome steel construction provides excellent wear resistance and long service life.
The inch-based measurements ensure compatibility with various machinery and equipment.
Its temperature range of -30° to 110°C allows it to perform in diverse environments.
Regular lubrication helps maintain its efficiency and reduces wear over time.

Performance Features of D24 Bearing

D24 Bearing is engineered to handle dynamic thrust loads up to 10,800 lbf.
The tight width tolerance of -0.005″ to +0.005″ ensures consistent performance.
Its open design simplifies installation and maintenance, saving time and effort.
The bearing’s weight of 0.91 lbs makes it easy to handle without compromising strength.

Why Choose D24 Bearing for Precision Tasks?

D24 Bearing’s precise bore diameter tolerance ensures accurate alignment in assemblies.
The chrome steel rings and balls reduce friction, enhancing smooth operation.
Its compact size of 1.938″×3.219″×0.813″ fits well in space-constrained applications.
The bearing’s compliance with RoHS and REACH standards guarantees environmental safety.

Application

Industrial Uses of D24 Bearing
D24 Bearing is commonly used in heavy machinery, such as hydraulic pumps and gear reducers, where its inch sizing fits standard American equipment. Its high dynamic thrust load capacity makes it suitable for demanding industrial environments.

Where Is D24 Bearing Used?
You’ll often find D24 Bearing in automotive applications like steering systems, where its chrome steel construction handles thrust loads effectively. The precise tolerances ensure smooth operation even under constant stress.

Built for Heavy-Duty Use: D24 Bearing
D24 Bearing works well in construction equipment, such as excavators, thanks to its robust design and static thrust load rating. The required lubrication helps maintain performance in tough conditions.

Automotive vs Aerospace: Applications of D24 Bearing
In automotive settings, D24 Bearing supports transmissions, while in aerospace, it’s used in auxiliary systems due to its reliability. The temperature range suits both ground and high-altitude operations.

Key Fields for D24 Bearing
D24 Bearing is a go-to choice for agricultural machinery, like tractors, where durability matters. Its inch measurements align with many farming equipment standards, simplifying replacements.
