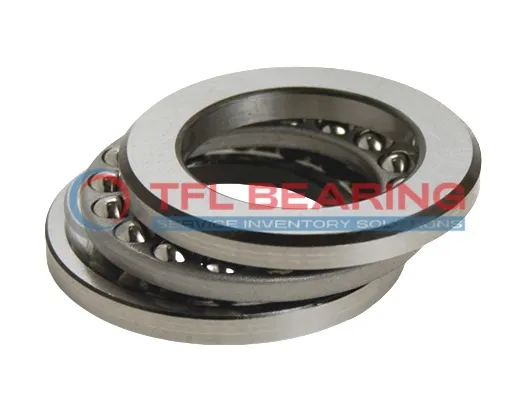

The D19 is a thrust ball bearing with a 1.625″ bore and 2.969″ outer diameter, crafted from sturdy 52100 chrome steel. It handles thrust loads up to 10300 lbf and operates smoothly at speeds up to 2400 RPM.
Its compact width of 0.813″ makes it a space-saving choice, while the chrome steel construction ensures durability. The bearing requires regular lubrication for optimal performance.
Designed to withstand temperatures from -30°C to 110°C, it’s suitable for demanding environments. Compliant with RoHS and REACH standards, it’s a safe and reliable option.
Ideal for machinery with moderate thrust loads, such as pumps or industrial gear systems. Weighing just 0.83 lbs, it’s easy to handle and install.
"*" indicates required fields
How Does D19 Bearing Handle Heavy Thrust Loads?
D19 Bearing is crafted from 52100 chrome steel, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 10,300 lbf, making it suitable for demanding applications.
The precise tolerances in bore and outer diameters ensure a secure fit and smooth operation.
With a maximum speed of 2,400 rpm, it delivers reliable performance under stress.
What Makes D19 Bearing Suitable for High-Temperature Applications?
D19 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
The chrome steel construction provides durability and resistance to thermal expansion.
Its design ensures consistent performance even in challenging thermal conditions.
Regular lubrication further enhances its ability to handle high-temperature environments.
Engineered for Precision: D19 Bearing
D19 Bearing features tight tolerances, with bore diameter precision of +0.001″ to +0.003″.
The outer diameter tolerance of -0.015″ to +0.015″ ensures a perfect fit in various assemblies.
Its 52100 chrome steel rings and balls contribute to smooth and precise operation.
This makes it ideal for applications requiring high accuracy and reliability.
Common Applications of D19 Bearing
D19 Bearing is widely used in industrial settings, especially in machinery that handles heavy axial loads like presses and lifting equipment. Its inch sizing makes it a good fit for North American machinery standards.
Where Is D19 Bearing Used?
You’ll often find D19 Bearing in automotive applications such as steering systems and transmissions, where its high thrust load capacity ensures reliable performance. The chrome steel construction also adds durability in demanding conditions.
Built for Heavy-Duty Use: D19 Bearing
D19 Bearing works well in construction equipment, supporting components like hydraulic pumps and gear reducers. Its tolerance range allows for smooth operation even under varying load conditions.
Automotive vs Industrial: Applications of D19 Bearing
In automotive uses, D19 Bearing excels in clutch assemblies, while in industrial settings, it’s ideal for heavy machinery like conveyor drives. The wide temperature range ensures performance in different environments.
Perfect Fit for Automation: D19 Bearing
D19 Bearing is a solid choice for automated systems, particularly in robotic arms and assembly line equipment. Its precise dimensions help maintain accuracy in repetitive tasks.
