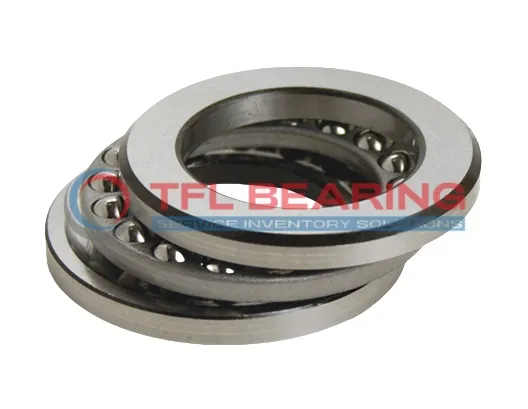

Thrust Ball Bearing With Outside Band D17A1
Thrust Ball Bearing With Outside Band D17A1

Thrust Ball Bearing With Outside Band D17A1

The D17A1 is a thrust ball bearing with a 1.5″ bore and 2.545″ outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 7700 lbf and operates smoothly at speeds up to 2800 RPM.

Its compact design, measuring just 0.629″ in width, makes it easy to fit into tight spaces. The bearing requires regular lubrication for optimal performance and works in temperatures from -30°C to 110°C.

This model is ideal for applications like automotive systems or industrial equipment where high thrust loads are common. Compliant with RoHS and REACH standards, it’s a reliable choice for various mechanical setups.

Weighing only 0.46 lbs, it’s lightweight yet durable, ensuring long service life with proper maintenance.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

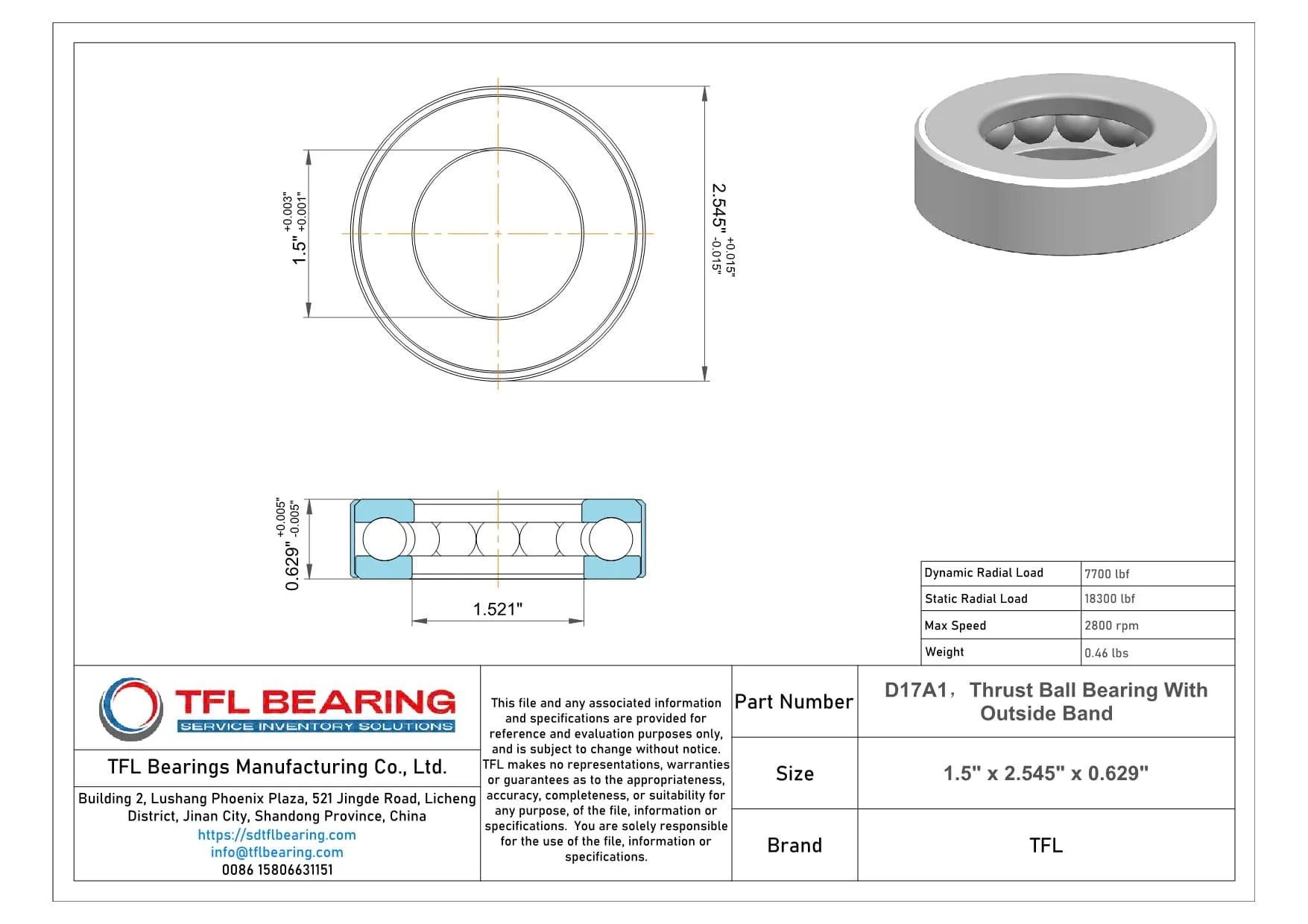

Product Parameters

  • Part Number D17A1
  • Brand TFL
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.521"
  • Outer Dia 2.545"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.629"
  • Width Tolerance -0.005" to +0.005"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 7700 lbf
  • Static Thrust Load 18300 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2800 rpm
  • Weight 0.46 lbs

Features

How Is D17A1 Bearing Engineered for Reliability?

D17A1 Bearing is crafted from 52100 chrome steel, offering strong resistance to wear and high thrust loads.

Its dynamic thrust load capacity reaches 7700 lbf, making it suitable for demanding applications.

The precise tolerances in bore and outer diameters ensure a secure fit and smooth operation.

With a maximum speed of 2,800 rpm, it balances performance and durability in various conditions.

Application

Industrial Uses of D17A1 Bearing
D17A1 Bearing is commonly used in heavy machinery, especially where axial loads need to be managed efficiently, like in hydraulic presses and lifting equipment. Its inch sizing makes it a good fit for North American industrial standards.

Where Is D17A1 Bearing Used?
You’ll often find D17A1 Bearing in automotive applications, such as steering systems and transmissions, where its high thrust load capacity ensures reliable performance. The chrome steel construction also helps it withstand demanding conditions.

Built for Heavy-Duty Use: D17A1 Bearing
D17A1 Bearing works well in construction equipment, like bulldozers and cranes, thanks to its robust design and ability to handle significant loads. The wide temperature range makes it suitable for outdoor use in various climates.

Automotive vs Aerospace: Applications of D17A1 Bearing
In automotive settings, D17A1 Bearing is ideal for gearboxes and clutch assemblies, while in aerospace, it’s used in auxiliary systems where precision and durability are key. Its inch measurements align with many US-made components.

Essential Roles of D17A1 Bearing
D17A1 Bearing is a reliable choice for medical devices like dental chairs, where smooth operation is critical. The stainless steel components ensure longevity even with frequent use.
