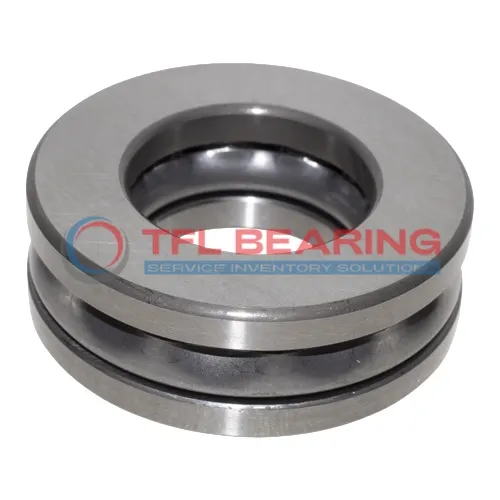

The D1 thrust ball bearing is a compact unit measuring 0.5″ in bore diameter and 1.219″ in outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 3850 lbf and operates smoothly at speeds reaching 7000 RPM.
Its design includes an outside band for added stability, while the chrome steel construction ensures durability. The bearing requires regular lubrication for optimal performance.
Suitable for a range of temperatures from -30°C to 110°C, it fits well in applications like small machinery or automotive components. Weighing just 0.12 lbs, it’s lightweight yet robust.
Compliant with RoHS and REACH standards, this bearing is a reliable choice for various industrial uses. Its inch measurements make it ideal for equipment requiring precise imperial-sized components.
"*" indicates required fields
Why Choose D1 Bearing for Precision Tasks?
D1 Bearing is crafted from 52100 chrome steel, offering excellent durability and resistance to wear.
Its dynamic thrust load capacity of 3850 lbf ensures reliable performance in demanding applications.
The precise tolerances in bore and outer diameters make it suitable for high-precision tasks.
With a temperature range of -30° to 110°C, D1 Bearing performs well in various environments.
How Is D1 Bearing Engineered for Reliability?
D1 Bearing features chrome steel rings and balls, providing strong resistance to heavy thrust loads.
The tight width tolerance of -0.005″ to +0.005″ ensures consistent performance and easy installation.
Its static thrust load capacity of 5600 lbf makes it ideal for high-load applications.
The bearing requires lubrication to maintain smooth operation and extend its service life.
Designed for Durability: D1 Bearing
D1 Bearing’s 52100 chrome steel construction ensures long-lasting performance under heavy loads.
The outer diameter tolerance of -0.015″ to +0.015″ allows for precise fitting in various applications.
With a maximum speed of 7,000 rpm, it balances efficiency and durability.

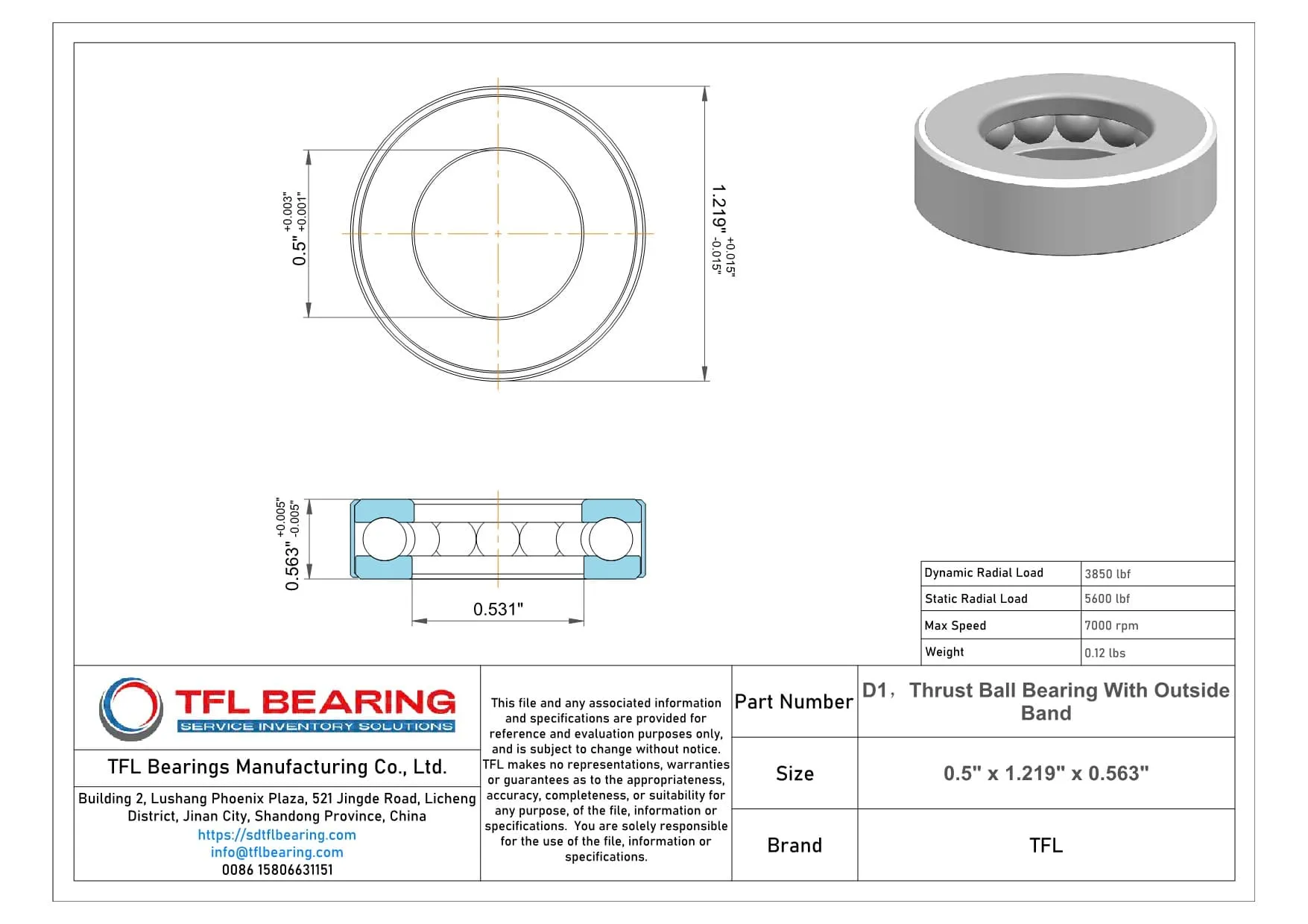

Its compact size of 0.5″×1.219″×0.563″ makes it suitable for space-constrained installations.
Flanged vs Non-Flanged: Benefits of D1 Bearing
D1 Bearing’s thrust ball design provides efficient load handling without the need for flanges.
The chrome steel material offers superior resistance to wear compared to standard bearings.
Its dynamic thrust load capacity of 3850 lbf ensures reliable operation in high-stress conditions.
The bearing’s compliance with RoHS and REACH standards makes it environmentally friendly.
Structural Advantages of D1 Bearing
D1 Bearing’s 52100 chrome steel construction ensures high strength and durability.
The inner diameter housing washer of 0.531″ provides a secure fit for precise applications.
With a weight of just 0.12 lbs, it is lightweight yet robust for its size.
The bearing’s temperature range allows it to perform reliably in both cold and hot environments.
Industrial Uses of D1 Bearing
D1 Bearing works well in machine tools where space is tight but thrust load handling is needed. Its inch sizing fits smoothly into older American equipment without modifications.
What Makes D1 Bearing a Preferred Choice?
The chrome steel construction gives D1 Bearing a good balance of strength and wear resistance for gearboxes. It handles moderate speeds nicely while keeping lubrication simple.
Built for Heavy-Duty Use: D1 Bearing
You’ll often spot D1 Bearing in conveyor systems that deal with uneven axial loads. The outside band design helps maintain alignment during heavy use.
Automotive vs Industrial: Applications of D1 Bearing
In cars, D1 Bearing suits clutch release mechanisms where its thrust capacity matters. For factories, it’s handy in packing machines needing reliable inch-sized parts.
Perfect Fit for Maintenance: D1 Bearing
D1 Bearing’s open design makes cleaning and re-greasing straightforward in farm equipment. The tolerances allow for smooth replacements without fussy adjustments.
