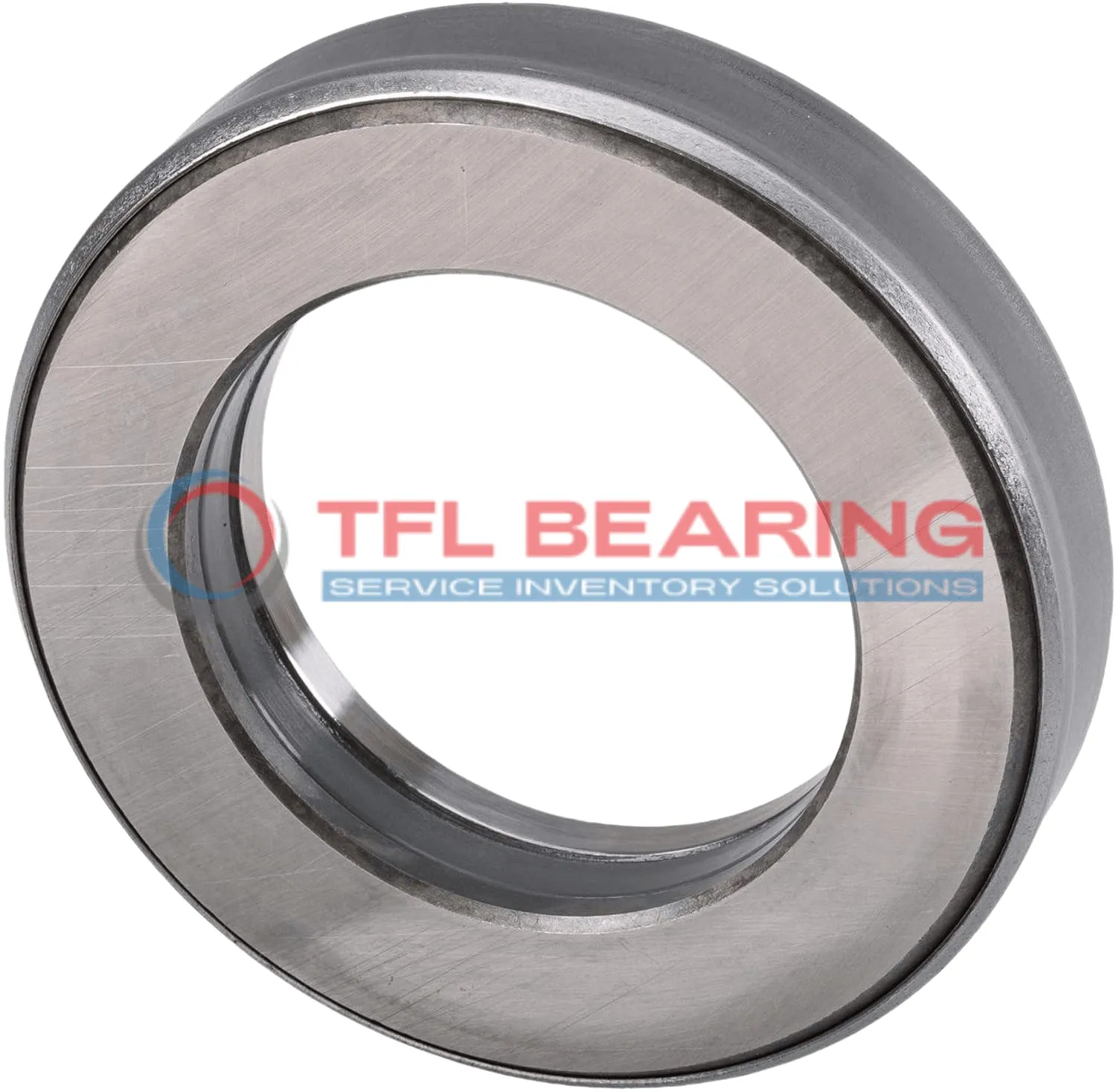

Thrust Ball Bearing With Outside Band B16
Thrust Ball Bearing With Outside Band B16

Thrust Ball Bearing With Outside Band B16

The B16 is a thrust ball bearing with a 1.438″ bore and 2.469″ outer diameter, crafted from durable 52100 chrome steel. It handles thrust loads up to 9500 lbf and operates smoothly at speeds up to 3000 RPM.

Its compact width of 0.75″ makes it suitable for tight spaces, while the outside band adds stability during use. The bearing requires regular lubrication for optimal performance.

Designed to work in temperatures from -30°C to 110°C, it’s reliable in various environments. Compliant with RoHS and REACH standards, it’s safe for industrial applications.

Weighing 0.23kg, it’s a sturdy choice for machinery with thrust load requirements, such as pumps or gear systems. Its inch measurements make it compatible with standard equipment.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number B16
  • Brand TFL
  • Bore Dia 1.438"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.469"
  • Outer Dia 2.469"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.75"
  • Width Tolerance -0.005" to +0.005"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 9500 lbf
  • Static Thrust Load 20100 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3000 rpm
  • Weight 0.23 kg

Features

How Is B16 Bearing Engineered for Reliability?

B16 Bearing is crafted from 52100 chrome steel, offering strong resistance to wear and high thrust loads.
Its dynamic thrust load capacity reaches 9500 lbf, making it suitable for heavy-duty applications.
The precise tolerances in bore and outer diameters ensure a perfect fit and smooth operation.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Application

Industrial Uses of B16 Bearing
B16 Bearing is commonly used in heavy machinery like hydraulic presses and lathes, where its inch sizing fits standard North American equipment. The chrome steel construction ensures it handles high thrust loads reliably.

Where Is B16 Bearing Used?
You’ll often spot B16 Bearing in automotive applications, particularly in clutch assemblies and gearboxes. Its precise tolerances make it a dependable choice for smooth power transmission.

Built for Heavy-Duty Use: B16 Bearing
In conveyor systems, B16 Bearing excels due to its robust design and ability to withstand constant axial loads. The open structure allows for easy lubrication, extending its service life.

Medical vs Industrial: Where B16 Bearing Excels
While B16 Bearing isn’t typically used in medical devices, it shines in industrial settings like packaging machines. Its durability and load capacity make it ideal for repetitive, high-stress tasks.

Perfect Fit for Automation: B16 Bearing
B16 Bearing works well in robotic arms and assembly line equipment, where consistent performance is key. The inch measurements ensure compatibility with older machinery still in use.
