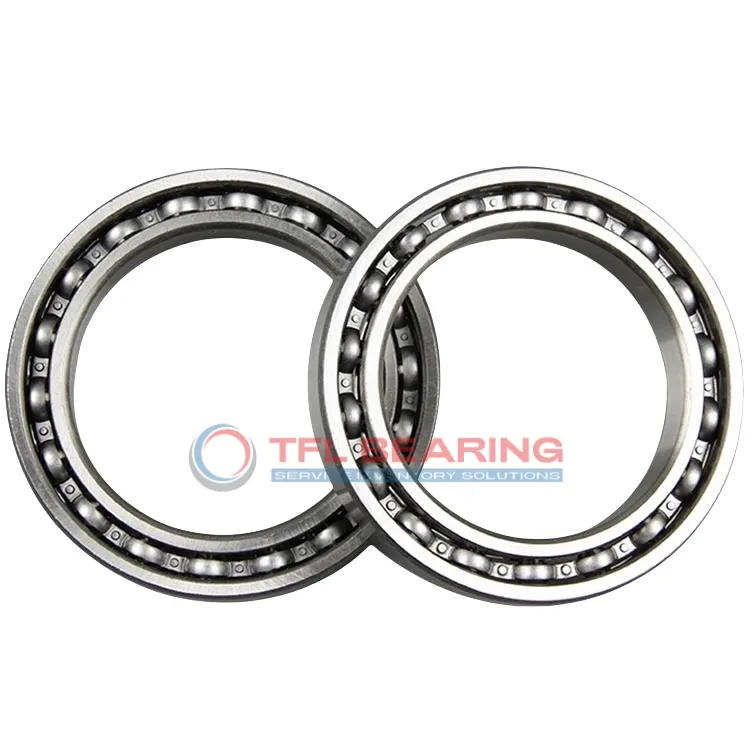

The SET2520 is a slim radial ball bearing measuring 20mm by 25mm by 4mm, crafted entirely from stainless steel for durability. It supports radial loads up to 204 lbf and can spin at speeds of 9000 RPM.
Its open design requires regular lubrication but allows for easy maintenance. The ABEC-1 tolerance ensures reliable performance in various conditions.
This lightweight bearing weighs just 2.96g, making it ideal for compact applications. It operates smoothly in temperatures ranging from -86°F to 230°F.
Suitable for precision instruments or small machinery where space is limited. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of SET2520 Bearing
SET2520 Bearing is crafted with stainless steel rings and balls, offering reliable radial load support.
Its slim 4mm width makes it ideal for space-constrained applications without compromising strength.
The ABEC-1 tolerance ensures consistent performance, suitable for general precision needs.
With a dynamic radial load capacity of 204 lbf, it handles moderate loads efficiently.
SET2520 Bearing operates smoothly in temperatures from -86 to 230°F, adapting to varied environments.
Its open design requires lubrication but allows for easy maintenance and inspection.
The C0 radial clearance provides balanced performance for most standard applications.
Weighing just 2.96g, it’s a lightweight solution for precision machinery.
Common Applications of SET2520 Bearing
SET2520 Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery where its slim profile and radial load capacity are beneficial. The stainless steel construction ensures durability in demanding environments.
In automotive applications, SET2520 Bearing fits well in compact spaces like electric motor assemblies and gear mechanisms. Its lightweight design and high-speed capability make it a reliable choice for modern vehicle systems.
For medical devices, SET2520 Bearing’s precise tolerance and smooth operation are ideal for surgical instruments and diagnostic equipment. The open seal design allows for easy lubrication, maintaining performance over time.
In consumer electronics, SET2520 Bearing can be found in devices like printers and small appliances, where its low weight and efficient performance are key. The wide temperature range also ensures reliability in various operating conditions.
