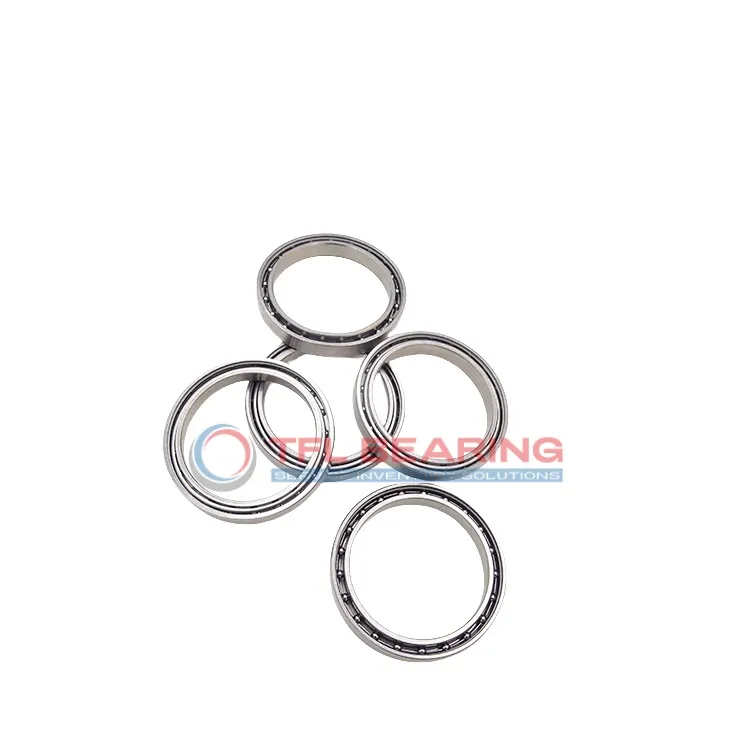

The S6909 is a slim radial ball bearing with a 45mm bore and 68mm outer diameter, crafted entirely from stainless steel for durability. Its compact 12mm width makes it ideal for tight spaces while handling radial loads up to 2853 lbf.
With a maximum speed of 9000 RPM and a wide temperature range from -86°F to 230°F, it performs reliably in various conditions. The open design requires regular lubrication but allows for easy maintenance.
This bearing suits applications where space is limited but performance can’t be compromised, such as in medical equipment or precision instruments. Its ABEC-1 tolerance ensures smooth operation for most industrial needs.
Weighing just 147g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe choice for diverse environments.
"*" indicates required fields
Performance Features of S6909 Bearing
S6909 Bearing is constructed with stainless steel rings and balls, offering excellent resistance to corrosion.
Its dynamic radial load capacity of 2853 lbf ensures reliable performance in various applications.
The open design allows for easy lubrication, maintaining smooth operation over time.
With a maximum speed of 9,000 rpm, it delivers consistent performance in demanding conditions.
Why Choose S6909 Bearing for Precision Tasks?
S6909 Bearing features a single-row design with ABEC-1 tolerance, ensuring precise radial movement.
The stainless steel cage maintains ball alignment, reducing friction and wear.
Its radial clearance of 0.006mm to 0.023mm provides smooth operation for precision instruments.
Operating within -86 to 230 °F, it remains reliable in diverse temperature conditions.
Designed for Durability: S6909 Bearing
S6909 Bearing’s all-stainless steel construction enhances its longevity and resistance to wear.
The C0 radial clearance ensures optimal performance under varying load conditions.
With a static radial load capacity of 2205 lbf, it handles demanding applications with ease.
Its lightweight design at 147 g makes it suitable for applications where weight is a consideration.
Common Applications of S6909 Bearing
S6909 Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery, where its thin section design saves space without compromising performance. The stainless steel construction ensures durability in demanding environments.
What Makes S6909 Bearing a Preferred Choice?
In medical imaging devices, S6909 Bearing offers smooth rotation and reliable performance, thanks to its ABEC-1 tolerance and stainless steel components. Its lightweight design also makes it ideal for portable equipment.
Built for Heavy-Duty Use: S6909 Bearing
For conveyor systems and packaging machines, S6909 Bearing handles radial loads efficiently, even in high-speed operations. The open seal design allows for easy lubrication, extending its service life.
Automotive vs Aerospace: Applications of S6909 Bearing
In automotive steering systems, S6909 Bearing provides precise movement, while in aerospace, its temperature resistance makes it suitable for auxiliary equipment. The metric sizing ensures compatibility across various applications.
