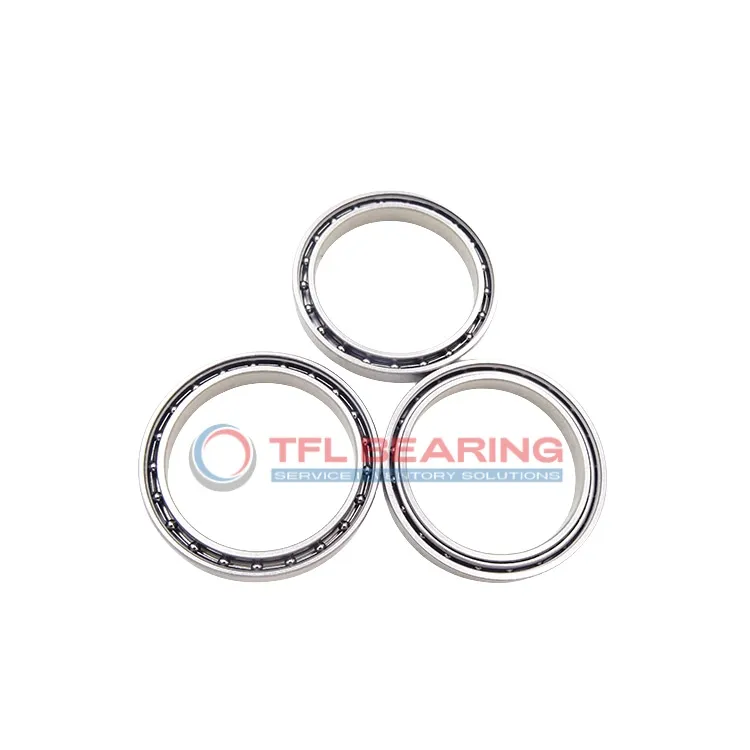

Thin Section Ball Bearings S6906
Thin Section Ball Bearings S6906

Thin Section Ball Bearings S6906

The S6906 is a slim, lightweight ball bearing measuring 30mm by 47mm by 9mm, crafted entirely from stainless steel for durability. It handles radial loads up to 1465 lbf and spins smoothly at speeds reaching 12,600 RPM.

Its open design requires regular lubrication but allows for easy maintenance. The ABEC-1 tolerance ensures reliable performance in most general applications.

This bearing operates in temperatures from -86°F to 230°F, making it versatile for various environments. Ideal for use in small machinery or equipment where space is limited but performance is key.

Weighing just 53g, it’s a practical choice for lightweight designs. Compliant with RoHS and REACH standards, it’s safe for most industrial uses.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number S6906
  • Brand TFL
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 9 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.020mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1465 lbf
  • Static Radial Load 1014 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 12600 rpm
  • Weight 53 g
  • Price($) 2.5

Features

Performance Features of S6906 Bearing

S6906 Bearing is crafted with stainless steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity reaches 1465 lbf, making it suitable for various applications.
The stainless steel cage ensures smooth operation and reduces wear over time.
With a maximum speed of 12,600 rpm, it delivers efficient performance in demanding conditions.

Why Choose S6906 Bearing for Precision Tasks?

S6906 Bearing features a single-row design with ABEC-1 tolerance, ensuring precise radial movement.
The radial clearance of 0.006mm to 0.020mm allows for smooth and accurate operation.
Its stainless steel construction resists corrosion, enhancing durability in different environments.
The compact 30 mm×47 mm×9 mm size makes it ideal for space-constrained applications.

Engineered for Efficiency: S6906 Bearing

S6906 Bearing’s open design simplifies lubrication, ensuring consistent performance.
The stainless steel materials provide resistance to high temperatures up to 230 °F.
Its lightweight construction at 53 g reduces overall system weight without compromising strength.
The C0 radial clearance trade number ensures reliable operation under various loads.

Steel vs Ceramic Bearings: Strengths of S6906 Bearing

S6906 Bearing uses stainless steel for all components, offering a balance of strength and corrosion resistance.
Its dynamic radial load capacity of 1465 lbf ensures reliable performance in radial applications.
The bearing operates efficiently at speeds up to 12,600 rpm, suitable for high-speed tasks.
With a temperature range of -86 to 230 °F, it adapts well to varying environmental conditions.

Application

Industrial Uses of S6906 Bearing
S6906 Bearing is commonly used in industrial machinery where space is limited but precision is key, such as in packaging equipment and small conveyors. Its thin section design allows for compact installations without compromising load capacity.

How Does S6906 Bearing Improve Performance?
In automation systems, S6906 Bearing ensures smooth rotation in robotic arms and linear guides, thanks to its stainless steel construction. The ABEC-1 tolerance provides reliable performance for consistent operation in repetitive tasks.

Built for Heavy-Duty Use: S6906 Bearing
S6906 Bearing handles radial loads efficiently in applications like dental drills and lab centrifuges, where hygiene and durability are priorities. The open seal design simplifies cleaning and maintenance in medical environments.

Automotive vs Aerospace: Applications of S6906 Bearing
In automotive steering systems, S6906 Bearing offers precise movement with minimal friction. For aerospace components, its lightweight design and temperature resistance make it suitable for instrumentation panels.

Perfect Fit for Automation: S6906 Bearing
S6906 Bearing works well in 3D printers and CNC machines, where its slim profile fits into tight spaces. The stainless steel balls reduce wear, ensuring long service life even with frequent use.
