Thin Section Ball Bearings S6703zz
Thin Section Ball Bearings S6703zz

Thin Section Ball Bearings S6703zz

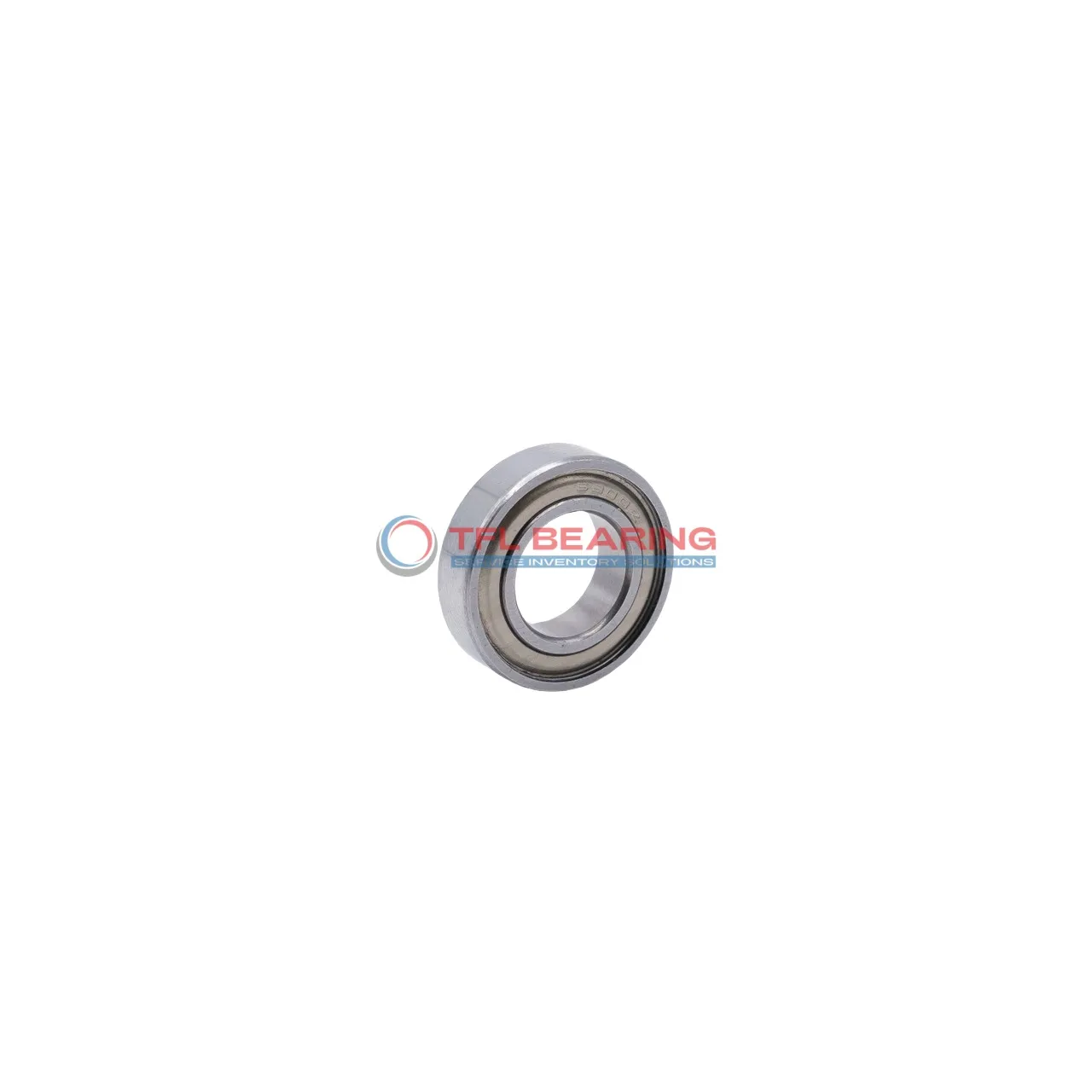

The S6703zz is a slim, shielded ball bearing measuring 17mm by 23mm by 4mm, crafted entirely from stainless steel for durability. It handles radial loads up to 202 lbf and spins smoothly at speeds up to 8600 RPM.

Its shielded design keeps out dust and debris, while the stainless steel cage ensures long-lasting performance. The bearing operates well in temperatures ranging from -86°F to 230°F, making it versatile for various environments.

With a lightweight build of just 4 grams, it’s ideal for applications where space and weight are critical, such as small motors or precision instruments. Compliant with RoHS and REACH standards, it’s a reliable choice for both industrial and delicate uses.

Get A Free Quote

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number S6703zz
  • Brand TFL
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 23 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 4 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.003mm to 0.018mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 202 lbf
  • Static Radial Load 133 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8600 rpm
  • Weight 4 g
  • Price($) 1.5

Features

Performance Features of S6703zz Bearing

S6703zz Bearing is crafted with stainless steel rings and balls, offering reliable radial load support.
Its compact 17 mm×23 mm×4 mm size makes it ideal for space-constrained applications.
The shielded design helps keep contaminants out while maintaining smooth operation.
With a maximum speed of 8,600 rpm, it delivers efficient performance in various conditions.

How Does S6703zz Bearing Resist Wear?

S6703zz Bearing’s stainless steel construction ensures resistance to corrosion and wear.
The ABEC-1 tolerance class provides consistent precision for smooth radial movement.
Its C0 radial clearance range (0.003mm to 0.018mm) balances performance and durability.
The shielded seals protect internal components, extending the bearing’s service life.

Designed for Durability: S6703zz Bearing

S6703zz Bearing handles dynamic radial loads up to 202 lbf, suitable for light to moderate applications.
The all-stainless steel design resists rust and performs well in temperatures from -86 to 230 °F.
Its lightweight 4 g construction reduces overall system weight without sacrificing strength.
The single-row design ensures simplicity and reliability in various mechanical setups.

Steel vs Ceramic Bearings: Strengths of S6703zz Bearing

S6703zz Bearing’s stainless steel construction offers a cost-effective yet durable solution.
It provides a static radial load capacity of 133 lbf, ideal for precision instruments.
The shielded seals prevent debris ingress, reducing maintenance needs.
With lubrication required, it ensures smooth operation over extended periods.

Application

Common Applications of S6703zz Bearing
S6703zz Bearing works well in small industrial equipment like compact motors and precision instruments, thanks to its slim 4mm profile. The shielded design keeps contaminants out while maintaining smooth rotation.

In robotics, S6703zz Bearing fits neatly into articulated joints and lightweight arms where space is limited. Its stainless steel construction handles moderate loads without adding bulk to delicate mechanisms.

For office gadgets like printers or scanners, S6703zz Bearing ensures quiet operation in paper feed mechanisms. The ABEC-1 tolerance provides enough precision for everyday consumer electronics at an affordable cost.

Medical device manufacturers often choose S6703zz Bearing for handheld diagnostic tools due to its corrosion-resistant materials. The wide temperature range allows sterilisation without compromising performance.
