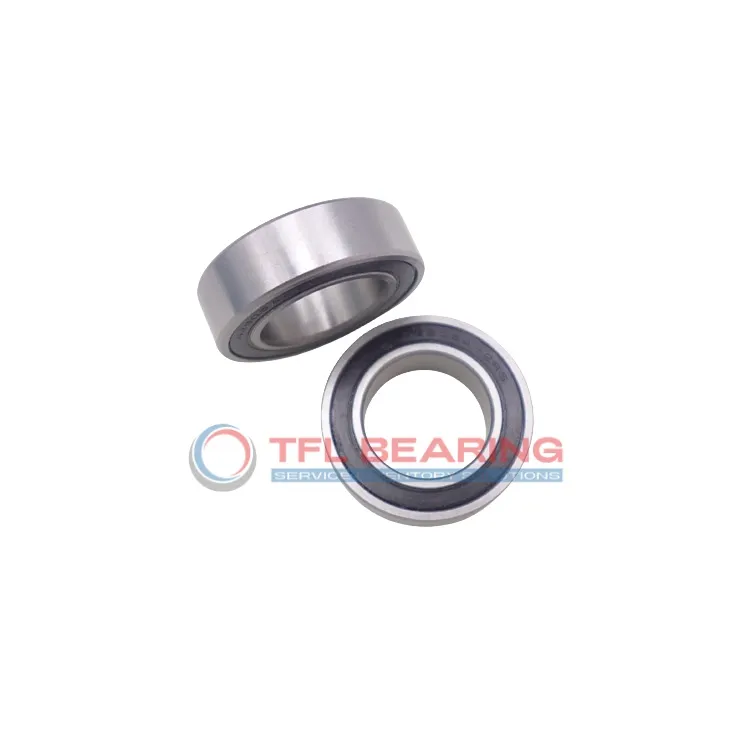

The 6914 2RS is a thin-section ball bearing with a 70mm bore and 100mm outer diameter, designed for radial loads. Its compact 16mm width makes it ideal for space-constrained applications.
Sealed on both sides, this bearing keeps out dust and dirt while retaining lubrication. It handles radial loads up to 5332 lbf and spins smoothly at speeds up to 7600 RPM.
Made from durable chrome steel with a stainless steel cage, it offers reliable performance in temperatures from -30°C to 110°C. The ABEC-1 tolerance ensures consistent operation.
Suitable for use in machinery where slim design is crucial, such as robotics or medical equipment. Compliant with RoHS and REACH standards, weighing just 342 grams.
"*" indicates required fields
How Does 6914 2rs Bearing Reduce Friction?
6914 2rs Bearing features sealed construction, preventing contaminants and ensuring smooth operation.
Its chrome steel rings and balls are designed to minimise friction, enhancing efficiency.
The bearing’s ABEC-1 tolerance class ensures consistent performance with radial clearance of 0.01mm to 0.03mm.
With a maximum speed of 7,600 rpm, it maintains reliability in various applications.
Stainless steel cage keeps the balls aligned, reducing wear and extending service life.
The dynamic radial load capacity of 5332 lbf makes it suitable for demanding radial loads.
Common Applications of 6914 2rs Bearing
The 6914 2rs Bearing is widely used in industrial machinery, such as conveyor systems and packaging equipment, where its sealed design helps keep contaminants out. Its thin section profile makes it ideal for space-constrained applications.
In automotive applications, 6914 2rs Bearing fits well in electric motors and gearboxes, providing reliable radial load support. The ABEC-1 tolerance ensures smooth operation without excessive noise or vibration.
For robotics and automation, 6914 2rs Bearing offers precise movement in robotic arms and linear actuators. The chrome steel construction ensures durability even in high-cycle operations.
Medical devices like diagnostic equipment benefit from 6914 2rs Bearing’s consistent performance and low maintenance requirements. The sealed design also helps maintain hygiene in sensitive environments.
In consumer electronics, 6914 2rs Bearing can be found in printers and small appliances, where its compact size and reliability are key advantages. The stainless steel cage adds extra resistance to wear over time.
