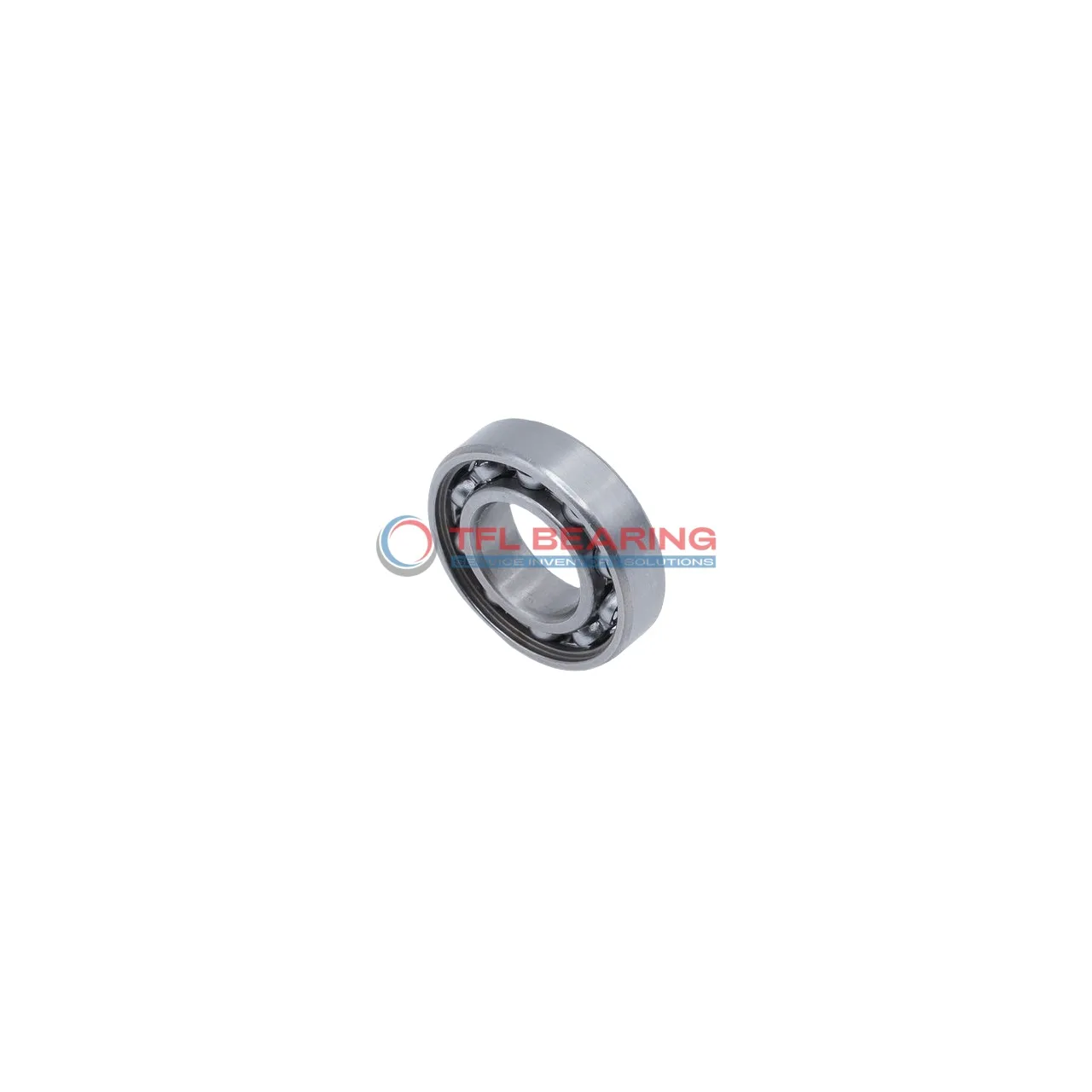

The 6819 is a thin-section ball bearing with a 95mm bore and 120mm outer diameter, designed for radial loads. Its compact width of 13mm makes it suitable for space-constrained applications.
Made from chrome steel with a stainless steel cage, it handles dynamic radial loads up to 4230 lbf. It operates smoothly at speeds up to 5900 RPM and works in temperatures from -30°C to 110°C.
The open design allows for easy lubrication, while the ABEC-1 tolerance ensures reliable performance. Its lightweight construction at 279g offers durability without adding bulk.
Ideal for use in machinery where slim profiles are needed, such as robotics or medical equipment. Compliant with RoHS and REACH standards for safe industrial use.
"*" indicates required fields
How Does 6819 Bearing Reduce Friction?
6819 Bearing features chrome steel rings and balls, designed to minimise friction during radial load operations.
Its ABEC-1 tolerance ensures smooth rotation, enhancing efficiency in various applications.
The stainless steel cage maintains ball alignment, reducing wear and prolonging service life.
With a maximum speed of 5,900 rpm, it offers reliable performance for precision tasks.
What Makes 6819 Bearing Suitable for High-Temperature Applications?
6819 Bearing operates effectively in temperatures ranging from -30°C to 110°C, making it versatile for different environments.
The chrome steel construction provides durability and resistance to thermal expansion.
Its open design allows for easy lubrication, ensuring consistent performance under varying conditions.
The bearing’s static radial load capacity of 4568 lbf adds to its reliability in demanding settings.
Engineered for Precision: 6819 Bearing
6819 Bearing is crafted with a single-row design, optimised for radial load applications requiring high precision.
The C0 radial clearance of 0.012mm to 0.036mm ensures smooth and accurate operation.
Its compact dimensions (95 mm×120 mm×13 mm) make it ideal for space-constrained installations.
The bearing’s dynamic radial load capacity of 4230 lbf supports robust performance in various machinery.
Common Applications of 6819 Bearing
6819 Bearing is widely used in industrial machinery where space is limited but radial load support is needed, such as in conveyor systems and packaging equipment. Its thin section design makes it ideal for compact installations without sacrificing performance.
In automotive applications, 6819 Bearing can be found in steering columns and gear mechanisms, providing smooth rotation under radial loads. The chrome steel construction ensures durability even in demanding driving conditions.
For automation and robotics, 6819 Bearing’s precise tolerances and open design allow for reliable performance in robotic arms and CNC machines. The stainless steel cage adds longevity, reducing maintenance needs over time.
Medical devices like diagnostic scanners often use 6819 Bearing for its consistent operation and resistance to wear. Its lightweight design is also beneficial in portable medical equipment.
In consumer electronics, 6819 Bearing supports components in printers and small appliances, where its compact size and reliable performance are key advantages. The ABEC-1 tolerance ensures smooth operation in everyday use.
