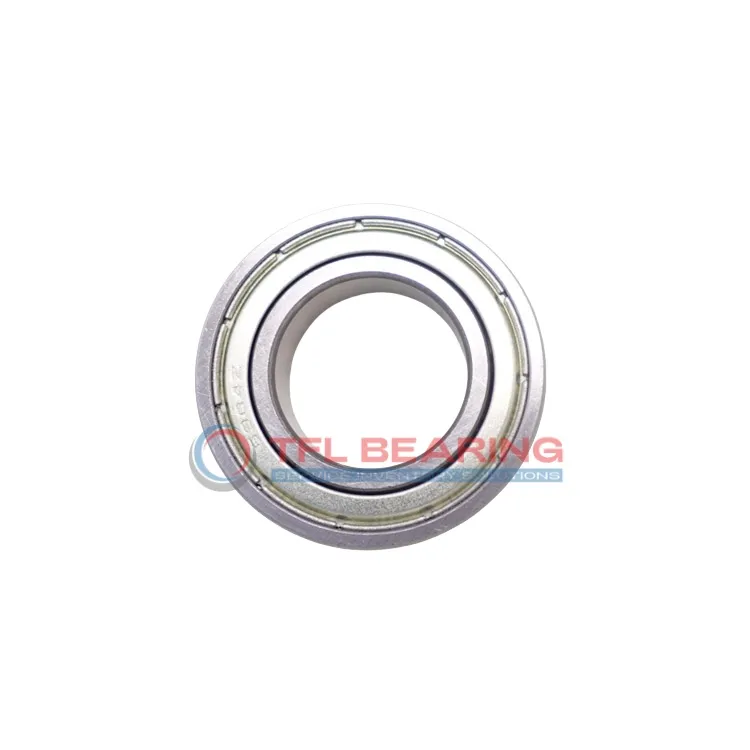

Thin Section Ball Bearings 6807zz
Thin Section Ball Bearings 6807zz

Thin Section Ball Bearings 6807zz

The 6807zz is a slim, shielded ball bearing measuring 35mm by 47mm by 7mm, crafted from sturdy chrome steel. It supports radial loads up to 1066 lbf and can spin at speeds up to 16,000 RPM.

Its single-row design with stainless steel cage ensures smooth operation, while the shields help keep dirt out. The bearing requires lubrication for optimal performance.

Suitable for applications where space is tight, like small motors or precision equipment. It works in temperatures from -30°C to 110°C.

Lightweight at just 32g, it meets RoHS and REACH standards for safe use. The ABEC-1 tolerance and C0 clearance make it a reliable choice for general-purpose needs.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 6807zz
  • Brand TFL
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 7 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.020mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1066 lbf
  • Static Radial Load 860 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 16000 rpm
  • Weight 32 g
  • Price($) 2.5

Features

Performance Features of 6807zz Bearing

6807zz Bearing features a compact design with dimensions of 35 mm×47 mm×7 mm, ideal for space-constrained applications.
Its shielded construction protects against contaminants while maintaining smooth operation.

The chrome steel rings and balls ensure durability, supporting dynamic radial loads up to 1066 lbf.
With a maximum speed of 16,000 rpm, it delivers reliable performance in high-speed scenarios.

6807zz Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its stainless steel cage enhances stability, reducing wear and extending service life.

Application

Industrial Uses of 6807zz Bearing
The 6807zz Bearing is commonly used in industrial machinery, especially where space is limited, such as in compact gearboxes and conveyor systems. Its shielded design helps keep contaminants out, ensuring longer service life.

In automotive applications, 6807zz Bearing fits well in electric motors and small transmission units, thanks to its slim profile and reliable radial load capacity. The chrome steel construction also handles moderate speeds with ease.

For automation equipment, 6807zz Bearing works smoothly in robotic arms and precision positioning systems. The ABEC-1 tolerance ensures consistent performance without needing frequent adjustments.

Around the home, 6807zz Bearing can be found in appliances like fans and small power tools, where its lightweight and durability make it a practical choice. The stainless steel cage adds extra resistance to wear over time.
