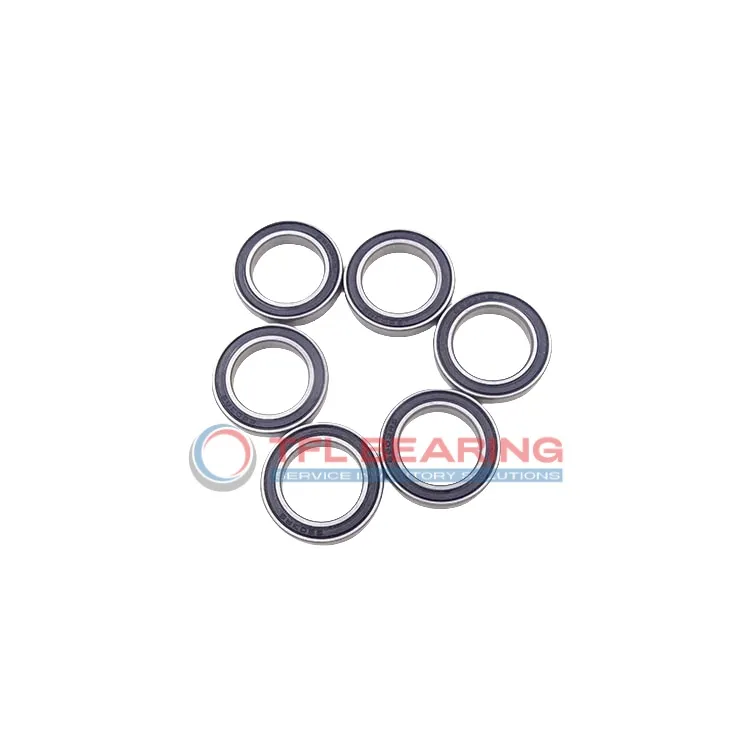

The 6802 2RS is a compact thin-section ball bearing with a 15mm bore and 24mm outer diameter, measuring just 5mm wide. Made from chrome steel, it’s designed for radial loads up to 466 lbf and can spin at speeds up to 31,000 RPM.
Its sealed construction keeps dirt out and grease in, making it low-maintenance. The stainless steel cage ensures smooth operation and durability over time.
This bearing works well in temperatures from -30°C to 110°C, suitable for various environments. It’s pre-lubricated but may need occasional re-greasing.
Ideal for small spaces like robotics or precision instruments where a slim profile is needed. Compliant with RoHS and REACH standards, it’s a reliable choice for light-duty applications. Weighing only 7.6g, it’s lightweight yet sturdy.
"*" indicates required fields
How Does 6802 2rs Bearing Reduce Friction?
6802 2rs Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its sealed design keeps contaminants out, maintaining consistent performance over time.
The stainless steel cage helps align the balls precisely, reducing wear and noise.
With a maximum speed of 31,000 rpm, it offers reliable efficiency for radial load applications.
Built for Reliability: 6802 2rs Bearing
6802 2rs Bearing is designed with a single-row construction, providing stable radial load support.
The ABEC-1 tolerance ensures consistent performance, suitable for various precision tasks.
Its sealed structure protects against dust and moisture, enhancing durability.
Operating between -30°C to 110°C, it adapts well to different environmental conditions.
Performance Features of 6802 2rs Bearing
6802 2rs Bearing handles dynamic radial loads up to 466 lbf, making it robust for its size.
The C0 radial clearance range (0.003mm to 0.018mm) ensures smooth rotation under load.
Weighing just 7.6 g, it is lightweight yet durable for compact applications.
Its chrome steel construction resists wear, extending service life.
Common Applications of 6802 2rs Bearing
6802 2rs Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its compact size and sealed design make it ideal for spaces where dust and moisture resistance are needed.
In robotics, 6802 2rs Bearing ensures smooth movement in joints and rotating parts, thanks to its reliable radial load capacity. The ABEC-1 tolerance provides consistent performance for precision applications.
For office equipment like printers and scanners, 6802 2rs Bearing offers quiet operation and long service life. The chrome steel construction ensures durability even with frequent use.
Medical devices such as dental handpieces benefit from 6802 2rs Bearing’s low friction and high-speed capabilities. The stainless steel cage adds extra corrosion resistance for hygiene-critical environments.
