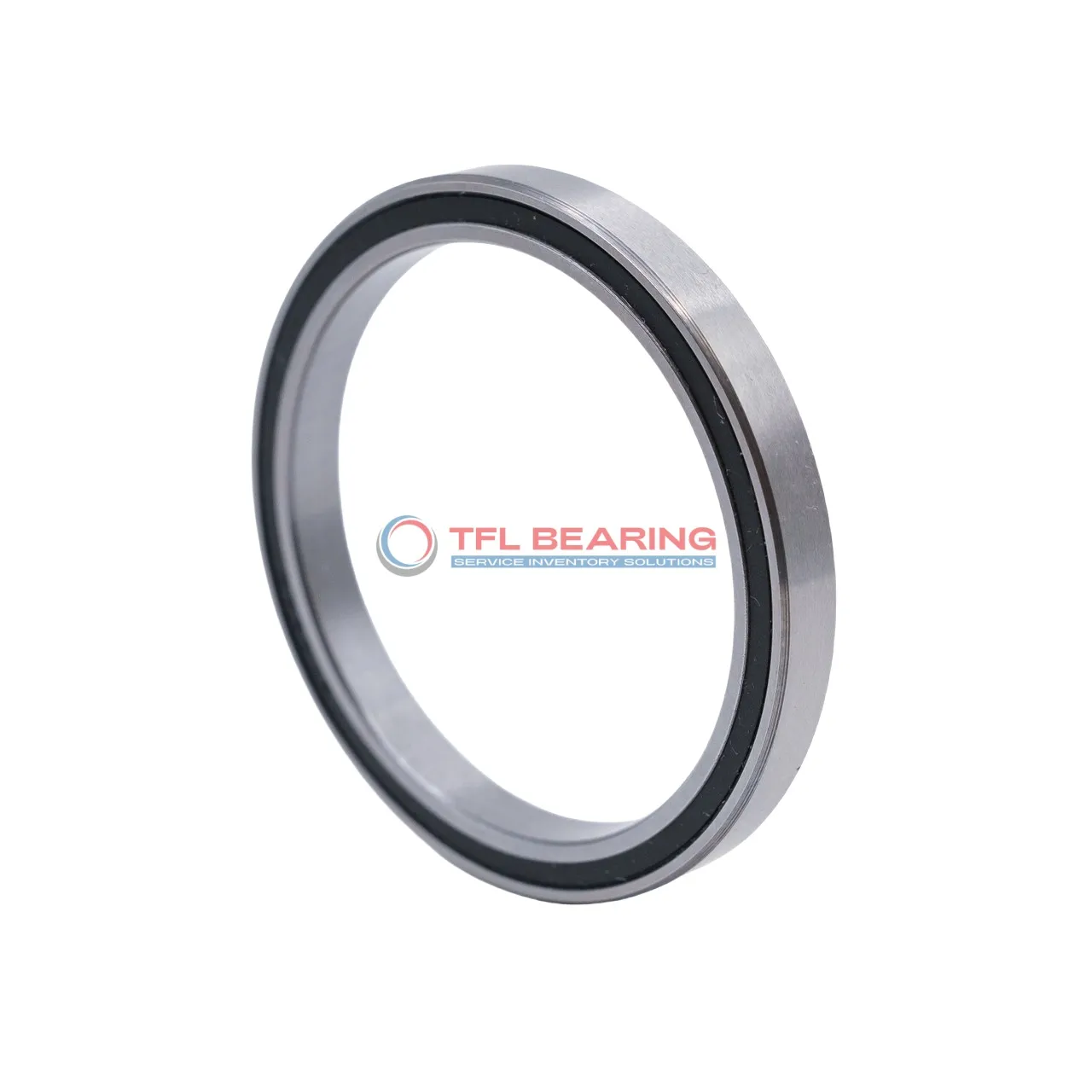

The 6704 2RS is a slim, sealed ball bearing with a 20mm bore and 27mm outer diameter, measuring just 4mm wide. Made from chrome steel, it’s built to handle radial loads up to 227 lbf while spinning smoothly at speeds up to 10,000 RPM.
Its sealed design keeps dirt out and lubrication in, making it low-maintenance for long-term use. The stainless steel cage adds durability, ensuring reliable performance in various conditions.
This bearing operates well in temperatures from -30°C to 110°C, suitable for many industrial settings. It’s compliant with RoHS and REACH standards, ensuring safety and environmental friendliness.
Ideal for compact applications like small motors or precision instruments where space is limited. Weighing only 5.9g, it’s lightweight yet sturdy for its size.
"*" indicates required fields
How Does 6704 2rs Bearing Reduce Friction?
6704 2rs Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its sealed design keeps contaminants out, maintaining consistent performance over time.
The stainless steel cage helps distribute loads evenly, reducing wear and extending service life.
With a maximum speed of 10,000 rpm, it offers reliable performance in compact applications.
Common Applications of 6704 2RS Bearing
The 6704 2RS Bearing is widely used in compact machinery, such as small electric motors and precision instruments, where its thin design saves space without compromising performance. Its sealed construction helps keep out dust and moisture, extending its lifespan in challenging environments.
In automation systems, 6704 2RS Bearing is a go-to choice for lightweight robotic arms and 3D printers, thanks to its smooth radial load handling. The ABEC-1 tolerance ensures consistent movement, which is vital for precise positioning tasks.
For consumer electronics like printers and small fans, 6704 2RS Bearing offers quiet operation and reliable performance. The chrome steel construction provides durability, while the stainless steel cage resists wear over time.
Medical devices also benefit from 6704 2RS Bearing’s precision, particularly in portable diagnostic equipment where compact size and reliability are key. Its temperature range makes it suitable for various clinical settings.
