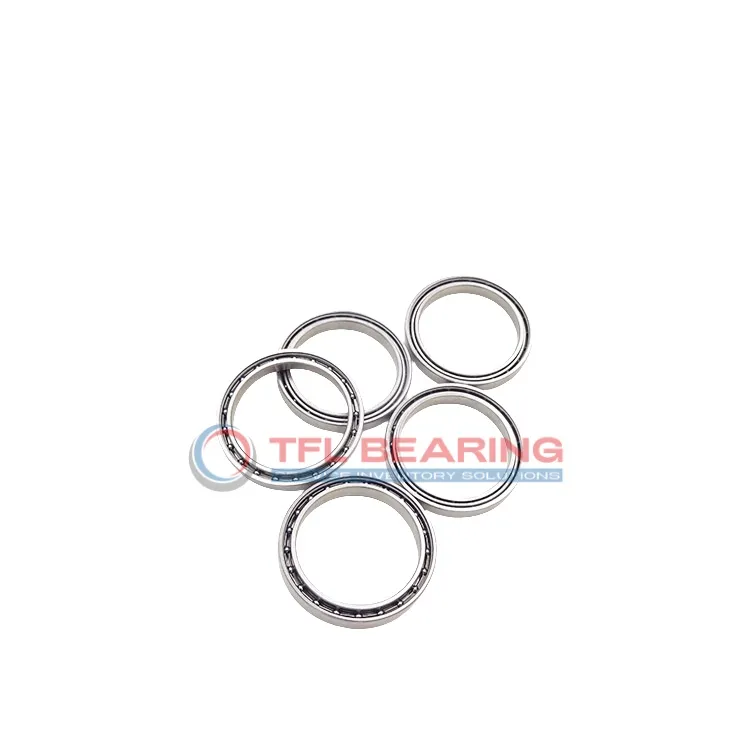

The 63806 is a slim radial ball bearing with a 30mm bore and 42mm outer diameter, measuring just 10mm wide. Made from chrome steel, it’s lightweight at 36g yet handles radial loads up to 1021 lbf.
With an open design, it spins smoothly at speeds up to 18,000 RPM, ideal for high-speed applications. The stainless steel cage ensures durability and consistent performance.
Its ABEC-1 tolerance and C0 radial clearance provide reliable precision for general use. Suitable for temperatures from -30°C to 110°C, it requires regular lubrication.
Perfect for compact machinery or robotics where space is limited but performance can’t be compromised. Compliant with RoHS and REACH standards for safe operation.
"*" indicates required fields
Performance Features of 63806 Bearing
63806 Bearing is designed with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity of 1021 lbf ensures stable performance in various applications.
The stainless steel cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 18,000 rpm, it delivers efficient operation for high-speed needs.
63806 Bearing operates within a temperature range of -30°C to 110°C, suitable for diverse environments.
Its compact size (30 mm×42 mm×10 mm) makes it ideal for space-constrained installations.
Common Applications of 63806 Bearing
63806 Bearing is widely used in industrial automation, particularly in robotic arms and conveyor systems, where its slim profile and radial load capacity are beneficial. The open design simplifies lubrication, ensuring smooth operation in continuous-use settings.
In automotive applications, 63806 Bearing fits well in electric motor assemblies and small gearboxes, thanks to its compact size and reliable performance. The chrome steel construction also helps it withstand moderate loads and vibrations.
For medical devices like lab equipment, 63806 Bearing offers precise rotation due to its ABEC-1 tolerance class. The stainless steel cage adds durability, making it suitable for frequent sterilization cycles.
In consumer electronics, 63806 Bearing can be found in printers and small fans, where low noise and efficient operation are key. Its lightweight design (36g) minimises energy consumption without sacrificing performance.
