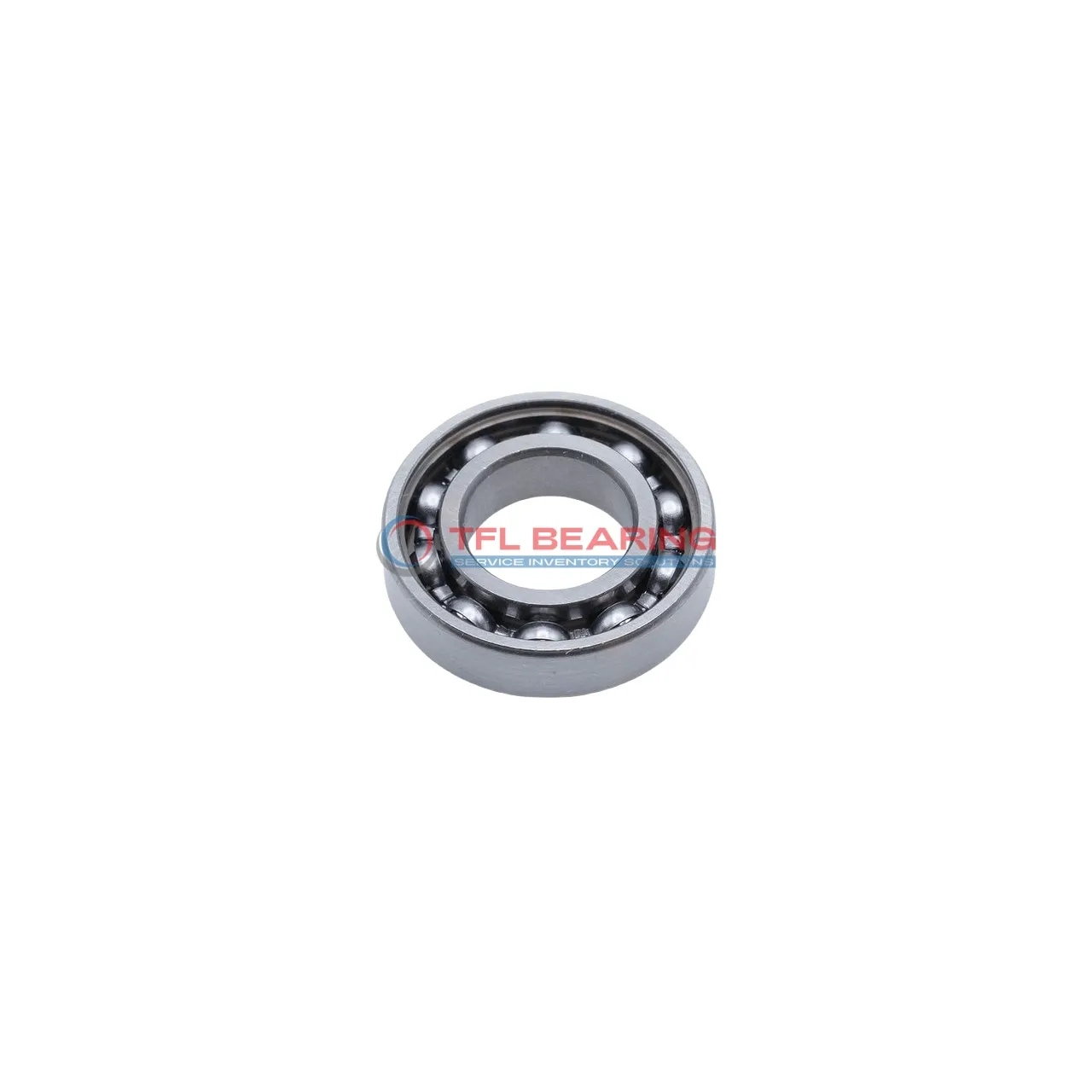

Thin Section Ball Bearings 63804
Thin Section Ball Bearings 63804

Thin Section Ball Bearings 63804

The 63804 is a slim radial ball bearing measuring 20mm by 32mm by 10mm, crafted from sturdy chrome steel for reliable performance. It supports radial loads up to 904 lbf and can spin at speeds up to 25,000 RPM, making it quite versatile.

With an open design, it’s easy to lubricate, and the stainless steel cage ensures smooth operation over time. The bearing operates well in temperatures ranging from -30°C to 110°C.

Its compact size and lightweight build (just 24g) make it ideal for applications where space is limited, such as small motors or precision instruments. Compliant with RoHS and REACH standards, it’s a safe choice for various industries.

The ABEC-1 tolerance and C0 radial clearance provide a good balance of precision and durability for everyday use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 63804
  • Brand TFL
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.020mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 904 lbf
  • Static Radial Load 554 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 25000 rpm
  • Weight 24 g
  • Price($) 2.2

Features

Performance Features of 63804 Bearing

63804 Bearing is designed with chrome steel rings and balls, offering strong radial load support.
Its dynamic radial load capacity reaches 904 lbf, making it suitable for various applications.

The stainless steel cage ensures smooth operation, reducing friction and wear.
With a maximum speed of 25,000 rpm, it delivers reliable performance in high-speed conditions.

63804 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its compact size of 20 mm×32 mm×10 mm makes it ideal for space-constrained installations.

Application

Industrial Uses of 63804 Bearing
63804 Bearing is commonly used in machine tools, where its thin section design saves space without compromising load capacity. The open seal allows for easy lubrication, keeping operations smooth in demanding conditions.

Where Is 63804 Bearing Used?
You’ll often spot 63804 Bearing in conveyor systems, thanks to its reliable radial load handling. Its compact size makes it a great fit for tight spaces in automated production lines.

Built for Versatility: 63804 Bearing
In robotics, 63804 Bearing ensures precise movement in joints and arms due to its low friction and high-speed capability. The chrome steel construction adds durability for long-term use.

Automotive vs Aerospace: Applications of 63804 Bearing
While 63804 Bearing works well in car alternators, its lightweight design also suits aerospace instruments. The ABEC-1 tolerance ensures consistent performance across different environments.

Perfect Fit for Automation: 63804 Bearing
63804 Bearing shines in 3D printers, where smooth rotation is key for accurate prints. Its stainless steel cage resists wear, even with frequent use in high-speed applications.
