Thin Section Ball Bearings 63803zz
Thin Section Ball Bearings 63803zz

Thin Section Ball Bearings 63803zz

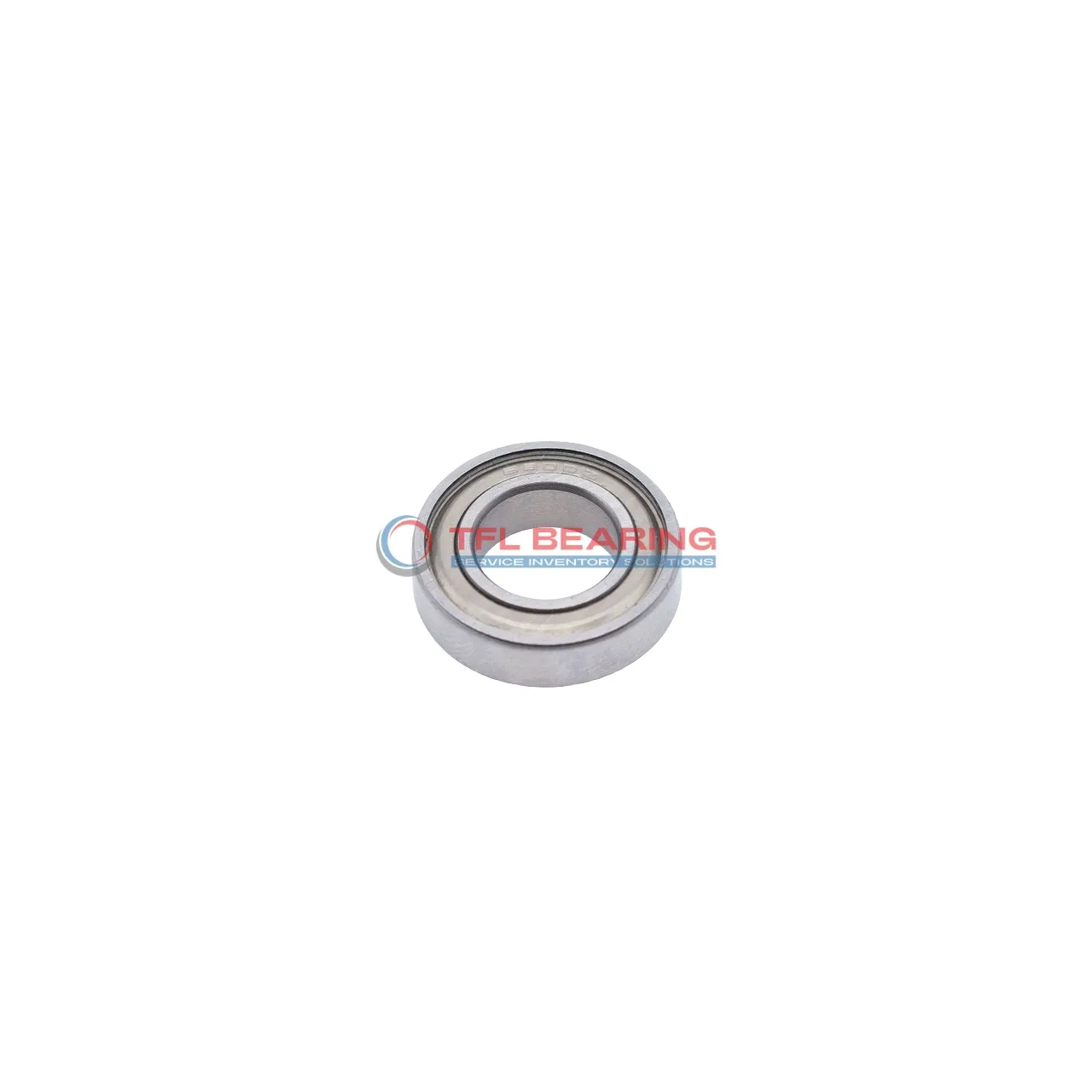

The 63803zz is a slim, shielded ball bearing measuring 17mm by 26mm by 7mm, crafted from sturdy chrome steel. It handles radial loads up to 502 lbf and spins smoothly at speeds up to 29,000 RPM.

Its single-row design with stainless steel cage ensures reliable performance, while the shields help keep dirt out. The bearing operates well in temperatures from -30°C to 110°C.

This model is ideal for compact applications where space is limited, such as small motors or precision instruments. It requires lubrication for optimal performance.

Weighing just 11g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe choice for various industries.

Get A Free Quote

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 63803zz
  • Brand TFL
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.003mm to 0.018mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 502 lbf
  • Static Radial Load 328 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 29000 rpm
  • Weight 11 g
  • Price($) 2.5

Features

Why Choose 63803zz Bearing for Precision Tasks?

63803zz Bearing features a compact design with dimensions of 17 mm×26 mm×7 mm, making it ideal for space-constrained applications.
The shielded construction protects against contaminants while maintaining smooth operation.

With a dynamic radial load capacity of 502 lbf, 63803zz Bearing handles demanding radial loads efficiently.
Its ABEC-1 tolerance ensures consistent performance in precision tasks.

The chrome steel rings and balls enhance durability, while the stainless steel cage reduces wear.
Operating at speeds up to 29,000 rpm, it balances high performance and reliability.

63803zz Bearing works in temperatures from -30°C to 110°C, suitable for various environments.
Its C0 radial clearance provides optimal performance for light to moderate loads.

Application

Key Fields for 63803zz Bearing
63803zz Bearing is commonly used in industrial automation, particularly in robotic arms and conveyor systems where its slim profile saves space without sacrificing performance. The shielded design helps keep contaminants out, extending service life in dusty environments.

In automotive applications, 63803zz Bearing fits well in compact electric motors and gear mechanisms due to its lightweight construction and smooth radial load handling. Its ABEC-1 tolerance ensures reliable operation in precision components.

For medical devices like handheld diagnostic tools, 63803zz Bearing’s chrome steel rings and stainless steel cage offer durability and consistent performance. The low friction design also makes it suitable for sensitive equipment requiring quiet operation.

Around the home, 63803zz Bearing can be found in small appliances like printers and cooling fans, where its 7mm width fits neatly into tight spaces. The C0 radial clearance provides just the right balance between movement and stability for everyday use.
