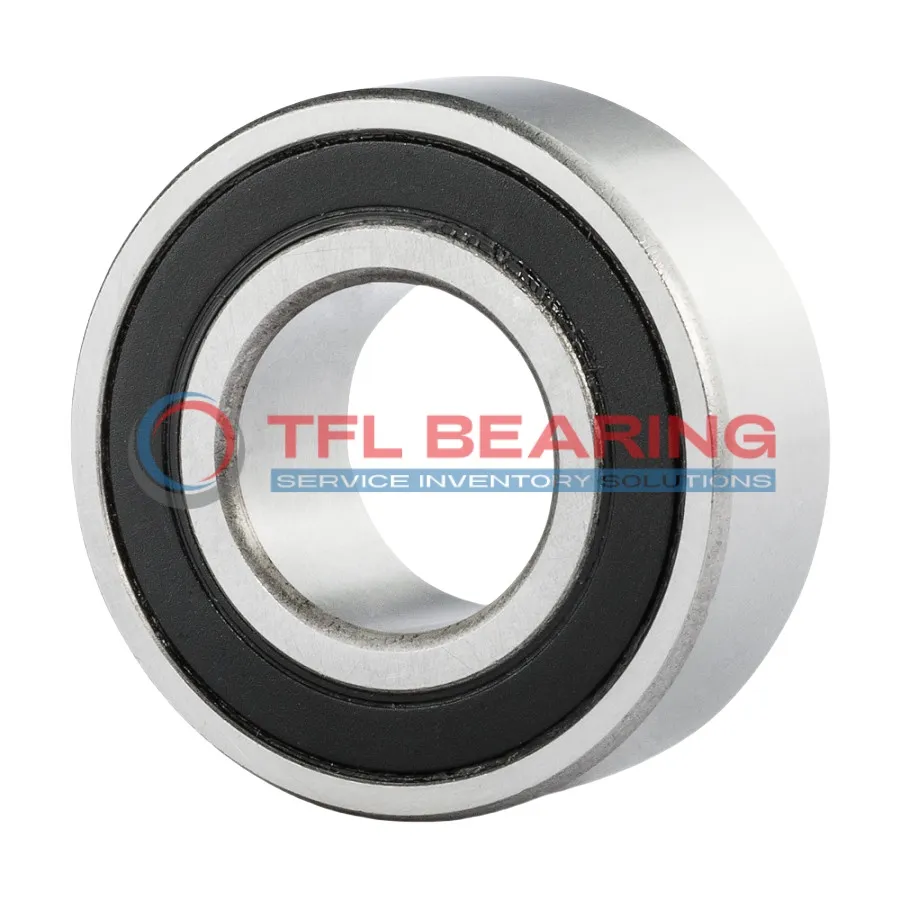

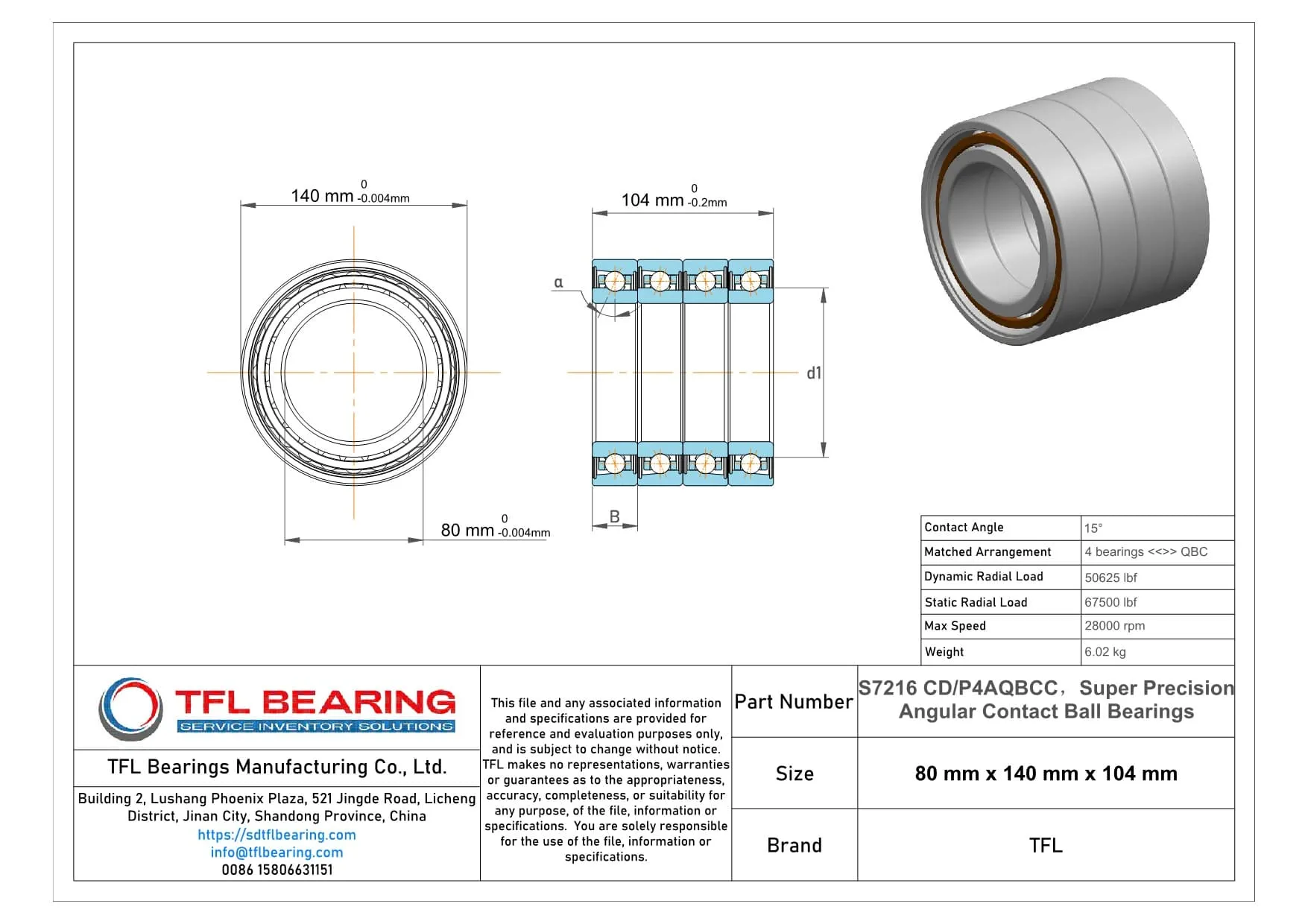

The S7216 CD/P4AQBCC is a super precision angular contact ball bearing with an 80mm bore and 140mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 50625 lbf and operates smoothly at speeds up to 28000 RPM.
Its sealed design and phenolic cage ensure reliable performance with moderate preload, while the 15° contact angle efficiently manages angular loads. The matched set of four bearings (QBC arrangement) provides balanced operation.
This bearing is lubricated with grease and works in temperatures from -30°C to 110°C. Ideal for high-precision applications like machine tool spindles or high-speed robotics.
Weighing 6.02kg, it’s robust yet suitable for demanding environments. Compliant with P4A tolerance standards for exceptional accuracy. Interchangeable with SKF bearings for easy replacement.
"*" indicates required fields
How Is S7216 CD/P4AQBCC Bearing Engineered for Reliability?
S7216 CD/P4AQBCC Bearing features a 15° contact angle, optimised for handling both radial and axial loads efficiently.
The chrome steel rings and balls enhance durability, while the phenolic cage ensures smooth operation at high speeds.
With a dynamic radial load capacity of 50625 lbf, S7216 CD/P4AQBCC Bearing performs reliably in demanding applications.
Its sealed design and grease lubrication reduce maintenance needs, extending service life.
S7216 CD/P4AQBCC Bearing operates smoothly at speeds up to 28,000 rpm, maintaining precision under stress.
The matched arrangement of four bearings ensures consistent performance in complex setups.
Industrial Uses of S7216 CD/P4AQBCC Bearing
S7216 CD/P4AQBCC Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The sealed construction helps maintain performance in environments with dust or debris.
What Makes S7216 CD/P4AQBCC Bearing a Preferred Choice?
In automotive applications, S7216 CD/P4AQBCC Bearing supports high-speed components like turbochargers and electric motors. Its moderate preload and phenolic cage contribute to smooth operation under demanding conditions.
Built for Heavy-Duty Use: S7216 CD/P4AQBCC Bearing
For robotics and automation, S7216 CD/P4AQBCC Bearing provides reliable performance in robotic arms and CNC machinery. The chrome steel construction ensures durability, even in continuous operation.
Medical vs Industrial: Where S7216 CD/P4AQBCC Bearing Excels
In medical imaging devices, S7216 CD/P4AQBCC Bearing offers quiet and precise movement, essential for diagnostic accuracy. Its grease lubrication reduces maintenance needs in critical healthcare equipment.
