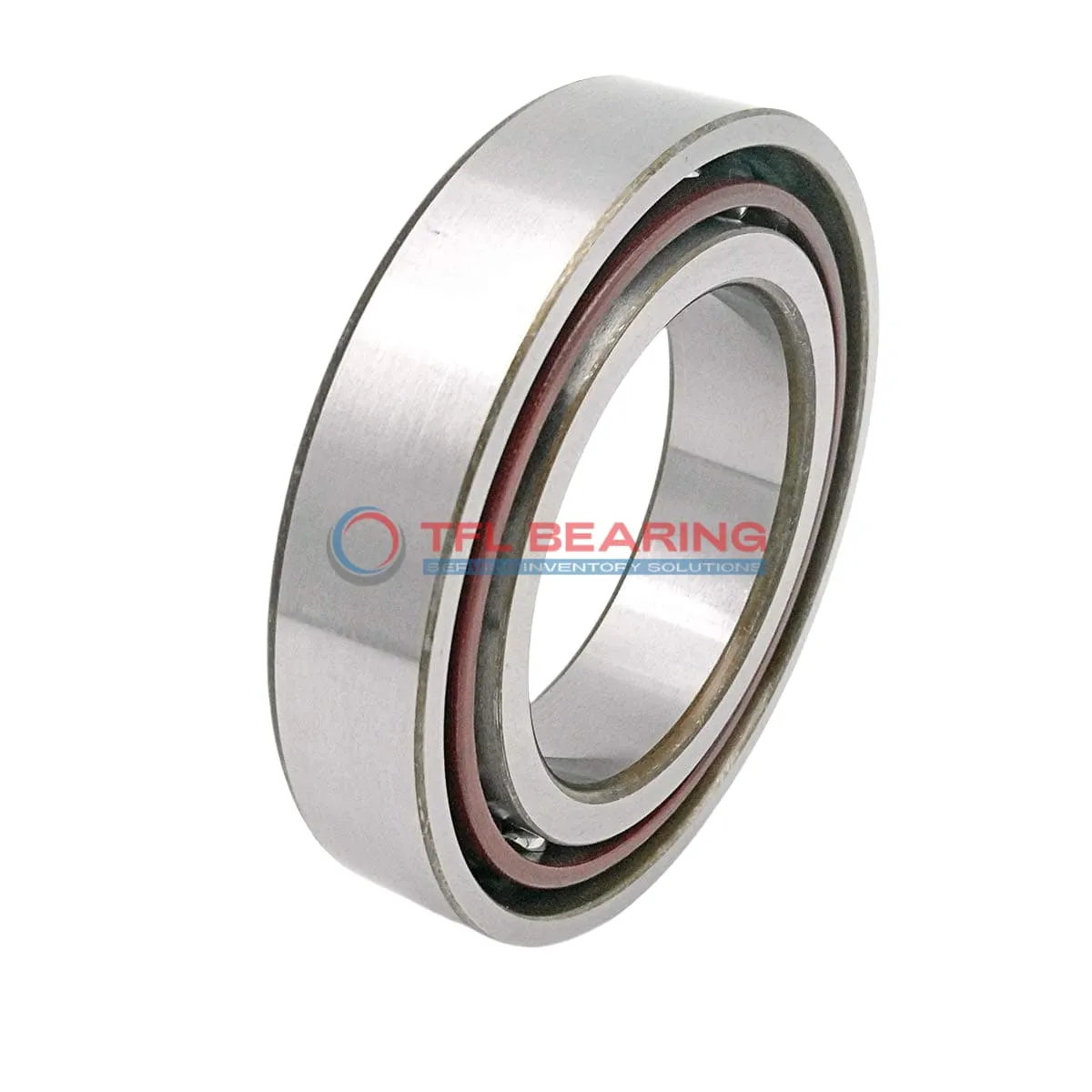

The S71916 CEGA/HCP4A is a super precision angular contact ball bearing with an 80mm bore and 110mm outer diameter, designed for high-speed applications. Its 15° contact angle and ceramic balls ensure smooth operation under radial loads up to 5152 lbf.
The sealed design keeps grease in and contaminants out, while the phenolic cage offers lightweight durability. It can handle speeds up to 28,000 RPM and temperatures from -30°C to 110°C.
With a P4A tolerance class, this bearing is ideal for precision machinery like spindles or CNC tools. Its universal matching allows flexible arrangements (back-to-back, face-to-face, or tandem).
Weighing just 0.31kg, it’s a reliable choice for demanding environments. Interchangeable with SKF bearings, it simplifies replacements.
"*" indicates required fields
Performance Features of S71916 CEGA/HCP4A Bearing
S71916 CEGA/HCP4A Bearing is designed with a 15° contact angle, providing excellent angular contact performance.
Its ceramic balls and chrome steel rings ensure smooth operation even at high speeds up to 28,000 rpm.
The phenolic cage in S71916 CEGA/HCP4A Bearing reduces friction and wear, enhancing durability.
With a dynamic radial load capacity of 5152 lbf, it handles demanding applications with ease.
S71916 CEGA/HCP4A Bearing operates efficiently in temperatures ranging from -30°C to 110°C.
Its sealed design and grease lubrication minimise maintenance needs, ensuring long service life.
The P4A tolerance class of S71916 CEGA/HCP4A Bearing guarantees precision and reliability.
It is suitable for universal matching in back-to-back, face-to-face, or tandem arrangements.
Key Fields for S71916 CEGA/HCP4A Bearing
In high-speed machine tools, S71916 CEGA/HCP4A Bearing excels due to its ceramic balls and phenolic cage, which reduce friction and heat buildup. The P4A tolerance ensures precision for demanding applications like CNC spindles.
Where Is S71916 CEGA/HCP4A Bearing Used?
This bearing is a go-to choice for aerospace components, such as helicopter rotor systems, where its angular contact design handles combined loads effortlessly. The sealed construction keeps contaminants out, extending service life.
Built for Heavy-Duty Use: S71916 CEGA/HCP4A Bearing
Industrial pumps benefit from S71916 CEGA/HCP4A Bearing’s grease lubrication and high-speed capability, ensuring reliable performance in harsh environments. Its chrome steel rings provide durability under continuous operation.
Automotive vs Aerospace: Applications of S71916 CEGA/HCP4A Bearing
In automotive turbochargers, S71916 CEGA/HCP4A Bearing’s light preload reduces energy loss, while in aerospace, its precision supports critical flight systems. The metric sizing fits seamlessly into both sectors.
Perfect Fit for Automation: S71916 CEGA/HCP4A Bearing
Robotic arms rely on S71916 CEGA/HCP4A Bearing for smooth, precise movement thanks to its 15° contact angle and ceramic balls. The extra-light preload minimizes resistance, enhancing efficiency.
