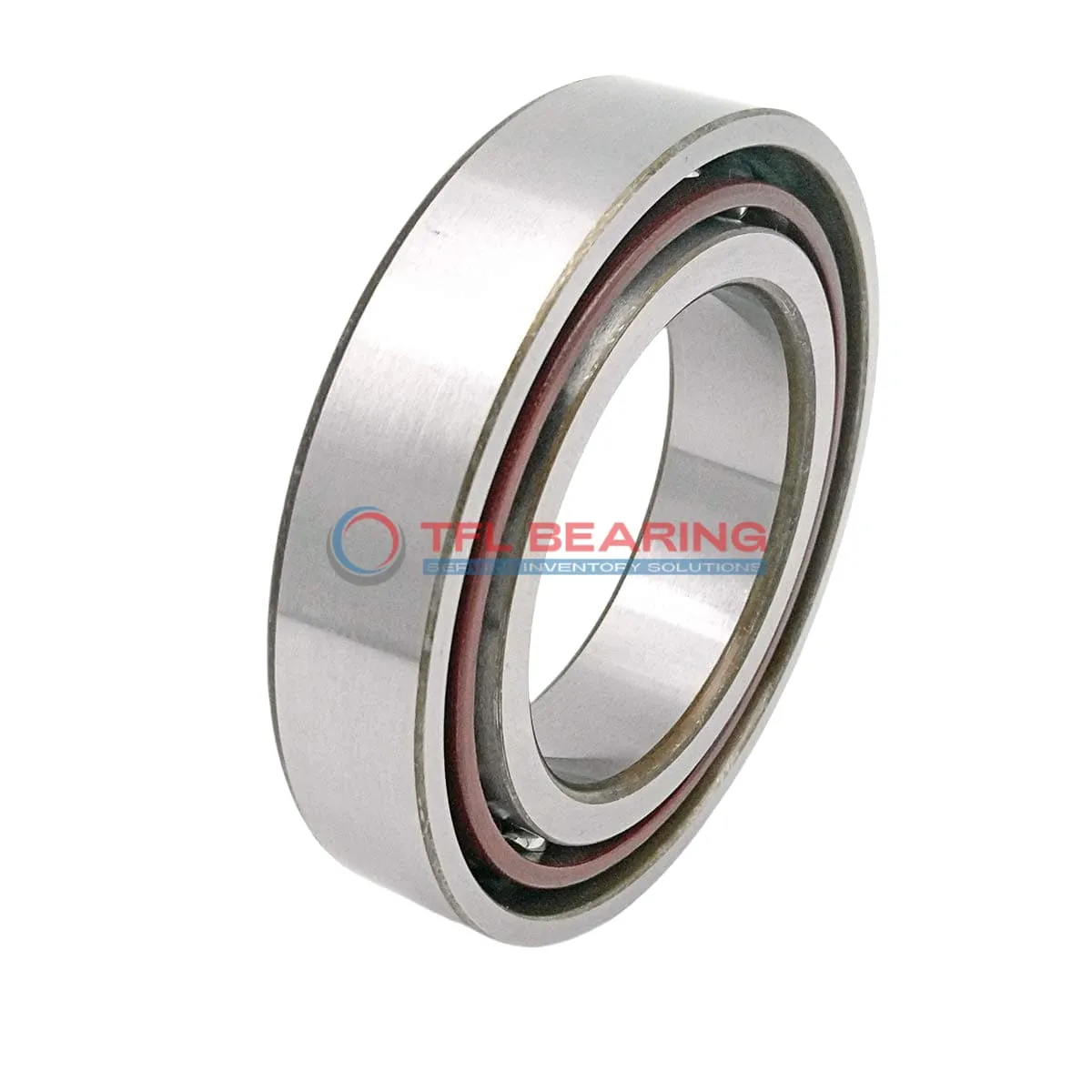

The S71916 CB/HCP4A is a super precision angular contact ball bearing with an 80mm bore and 110mm outer diameter, crafted from durable chrome steel. Its compact 16mm width makes it suitable for tight spaces while handling radial loads up to 3510 lbf.
Featuring a 15° contact angle and ceramic balls, it offers smooth operation at speeds up to 19,000 RPM. The sealed design keeps lubrication in place, reducing maintenance needs.
With a phenolic cage and P4 tolerance class, this bearing ensures high accuracy and long life. It works reliably in temperatures from -30°C to 110°C.
Ideal for precision applications like machine tool spindles or high-speed robotics. Weighing 0.37kg, it’s lightweight yet robust for demanding environments. Interchangeable with SKF bearings for easy replacement.
"*" indicates required fields
Why Choose S71916 CB/HCP4A Bearing for Precision Tasks?
S71916 CB/HCP4A Bearing features a 15° contact angle, ideal for handling combined radial and axial loads with high precision.
The ceramic balls and chrome steel rings ensure minimal friction, enhancing performance in high-speed applications.
With a maximum speed of 19,000 rpm, it delivers smooth operation even under demanding conditions.
The phenolic cage maintains ball alignment, reducing wear and extending the bearing’s service life.
Its P4 tolerance class guarantees exceptional accuracy, making it suitable for precision machinery.
The sealed design protects against contaminants, ensuring reliable performance in various environments.
Where Is S71916 CB/HCP4A Bearing Used?
S71916 CB/HCP4A Bearing is commonly used in high-speed machine tools, where its precision and angular contact design ensure accurate performance. The ceramic balls reduce friction, making it ideal for applications requiring smooth rotation.
In robotics, S71916 CB/HCP4A Bearing supports articulated arms and joints, thanks to its sealed design and phenolic cage. This combination offers durability and resistance to wear in continuous operation.
For aerospace applications, S71916 CB/HCP4A Bearing’s P4 tolerance class provides the reliability needed in navigation systems and flight controls. Its lightweight construction also helps reduce overall component weight.
In medical imaging devices, S71916 CB/HCP4A Bearing’s low friction and high-speed capabilities ensure quiet and precise movement. The lubricated design further enhances its longevity in demanding environments.
