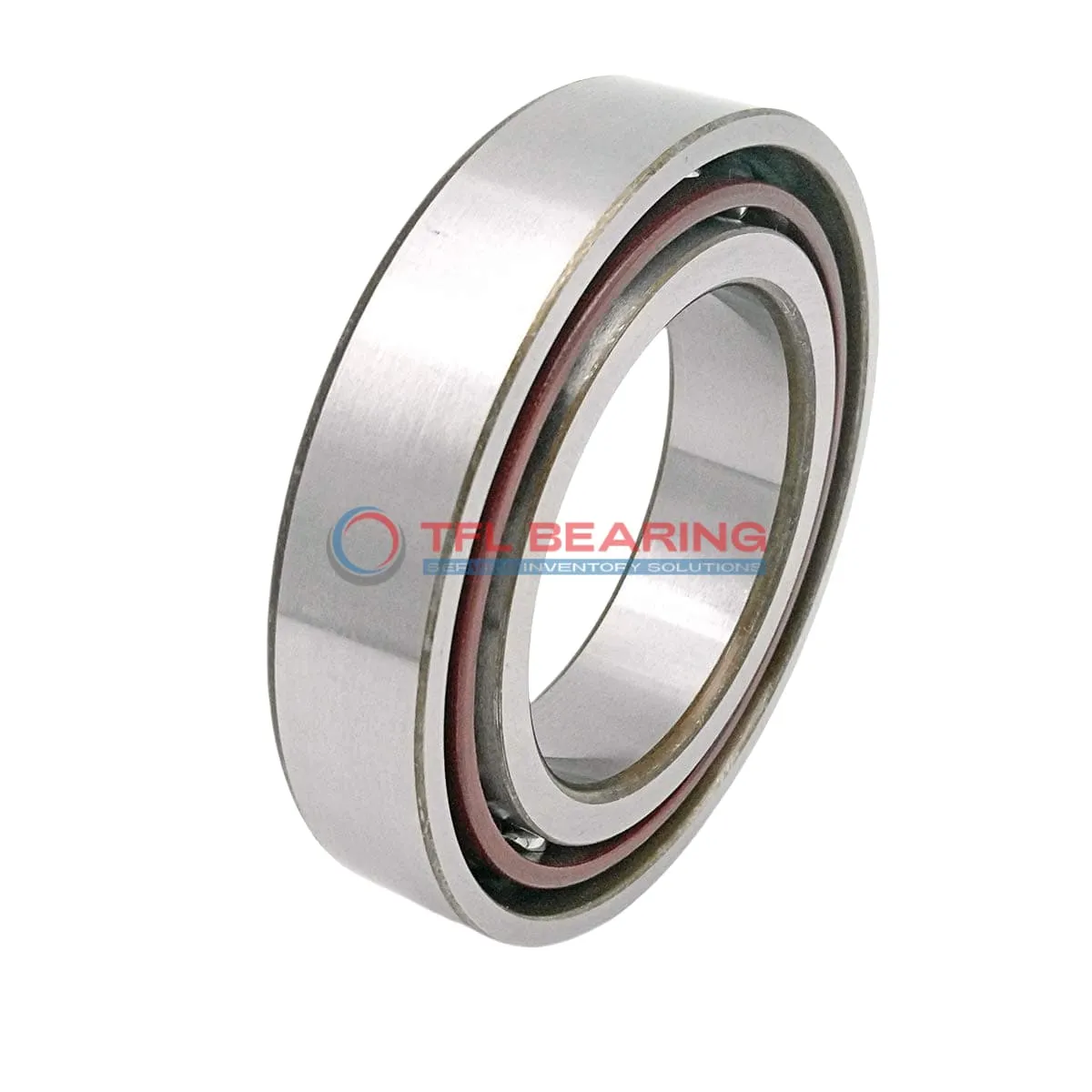

The S71916 ACE/HCP4ADGA is a super precision angular contact ball bearing with an 80mm bore and 110mm outer diameter, crafted from durable chrome steel and ceramic balls. It handles radial loads up to 7898 lbf and reaches speeds of 28,000 RPM, making it suitable for high-performance applications.
Its sealed design and grease lubrication ensure low maintenance, while the phenolic cage offers quiet operation. The bearing comes in a matched set of two, allowing universal mounting in back-to-back, face-to-face, or tandem configurations.
With a 25° contact angle and extra light preload, it provides smooth rotation and precise alignment. Ideal for machine tools, spindles, or other high-speed equipment where accuracy is crucial.
Weighing 0.62kg, it operates efficiently in temperatures from -30°C to 110°C. Compliant with P4A tolerance class for exceptional precision.
"*" indicates required fields
Performance Features of S71916 ACE/HCP4ADGA Bearing
S71916 ACE/HCP4ADGA Bearing features a 25° contact angle, optimised for high-precision angular contact applications.
The ceramic balls and chrome steel rings ensure smooth operation with minimal friction.
With a dynamic radial load capacity of 7898 lbf, it handles demanding tasks reliably.
The phenolic cage maintains ball alignment, reducing wear and extending service life.
S71916 ACE/HCP4ADGA Bearing operates at speeds up to 28,000 rpm, making it suitable for high-speed machinery.
Its sealed design and grease lubrication reduce maintenance needs while ensuring consistent performance.
The universal matching arrangement allows flexible installation in back-to-back, face-to-face, or tandem configurations.
This versatility makes S71916 ACE/HCP4ADGA Bearing adaptable to various precision engineering requirements.
Super Precision Angular Contact Ball Bearings S71916 ACE/HCP4ADGA are commonly used in high-speed machine tools, where their ceramic balls and phenolic cage reduce friction and heat buildup. The sealed design keeps contaminants out, ensuring long-lasting performance.
In robotics, S71916 ACE/HCP4ADGA Bearings provide smooth motion control for articulated arms, thanks to their extra-light preload and universal matching. This makes them ideal for precise, repetitive tasks in automated production lines.
For aerospace applications, S71916 ACE/HCP4ADGA Bearings handle both radial and axial loads in components like helicopter transmissions. Their P4A tolerance class ensures reliability under demanding flight conditions.
Medical imaging devices benefit from S71916 ACE/HCP4ADGA Bearings’ low noise and vibration, critical for clear scans. The grease lubrication and wide temperature range suit them for continuous operation in diagnostic equipment.
In electric vehicle motors, S71916 ACE/HCP4ADGA Bearings support high-speed rotation with minimal energy loss. Their angular contact design efficiently manages combined loads, enhancing motor efficiency and lifespan.
