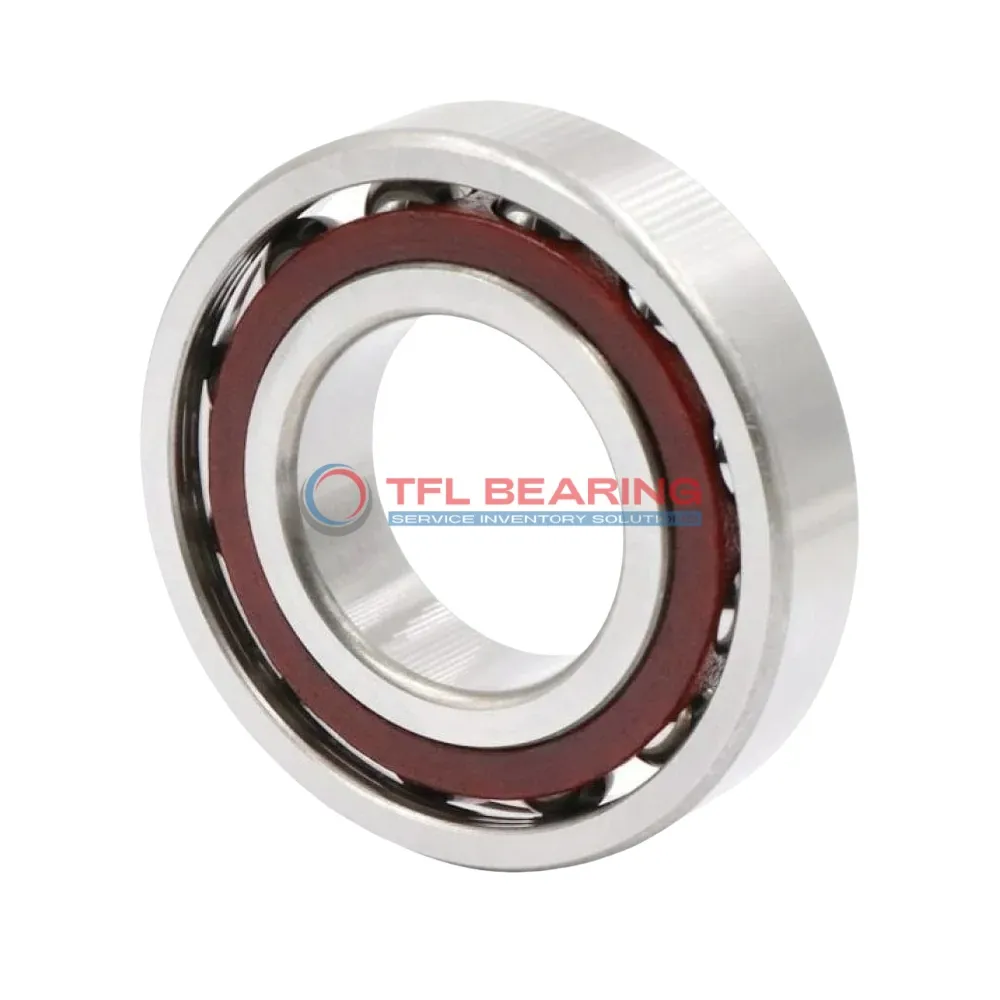

The S7016 ACB/HCP4ADGA is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from chrome steel for durability. Its 25° contact angle and ceramic balls ensure smooth operation under radial loads up to 9068 lbf.
This sealed bearing comes pre-greased and can handle speeds up to 28,000 RPM, making it suitable for high-performance applications. The phenolic cage adds strength while keeping the weight manageable at 1.73kg.
Designed for universal matching, it works in back-to-back, face-to-face, or tandem arrangements. Ideal for precision machinery like spindles or CNC equipment where accuracy is key.
Operating in temperatures from -30°C to 110°C, it’s a reliable choice for demanding environments. Compliant with P4A tolerance standards for consistent performance.
"*" indicates required fields
Performance Features of S7016 ACB/HCP4ADGA Bearing
S7016 ACB/HCP4ADGA Bearing is designed with a 25° contact angle, optimising load distribution for precision applications.
Its ceramic balls and chrome steel rings enhance durability while reducing friction.
The phenolic cage ensures smooth operation, even at high speeds up to 28,000 rpm.
Universal matching allows flexible arrangement in back-to-back, face-to-face, or tandem configurations.
With a dynamic radial load capacity of 9068 lbf, S7016 ACB/HCP4ADGA Bearing handles demanding tasks reliably.
The sealed design and grease lubrication minimise maintenance needs.
Operating between -30°C to 110°C, S7016 ACB/HCP4ADGA Bearing performs consistently in varied conditions.
Its P4A tolerance class guarantees high precision for critical applications.
Industrial Uses of S7016 ACB/HCP4ADGA Bearing
S7016 ACB/HCP4ADGA Bearing is commonly used in high-speed machine tools, where its ceramic balls and phenolic cage reduce friction and heat buildup. The sealed design keeps contaminants out, ensuring long-lasting performance in demanding environments.
What Makes S7016 ACB/HCP4ADGA Bearing a Preferred Choice?
In automotive applications like electric motors, S7016 ACB/HCP4ADGA Bearing handles angular loads with ease, thanks to its 25° contact angle. The universal matching feature allows flexible arrangements, making it versatile for various setups.
Perfect Fit for Automation: S7016 ACB/HCP4ADGA Bearing
S7016 ACB/HCP4ADGA Bearing works well in robotic arms, providing smooth motion and precision. Its extra-light preload ensures minimal resistance, which is ideal for repetitive tasks in automated systems.
Medical vs Industrial: Where S7016 ACB/HCP4ADGA Bearing Excels
In medical imaging devices, S7016 ACB/HCP4ADGA Bearing offers quiet operation and reliability. For industrial uses like CNC spindles, its high-speed capability and P4A tolerance class deliver consistent accuracy.
