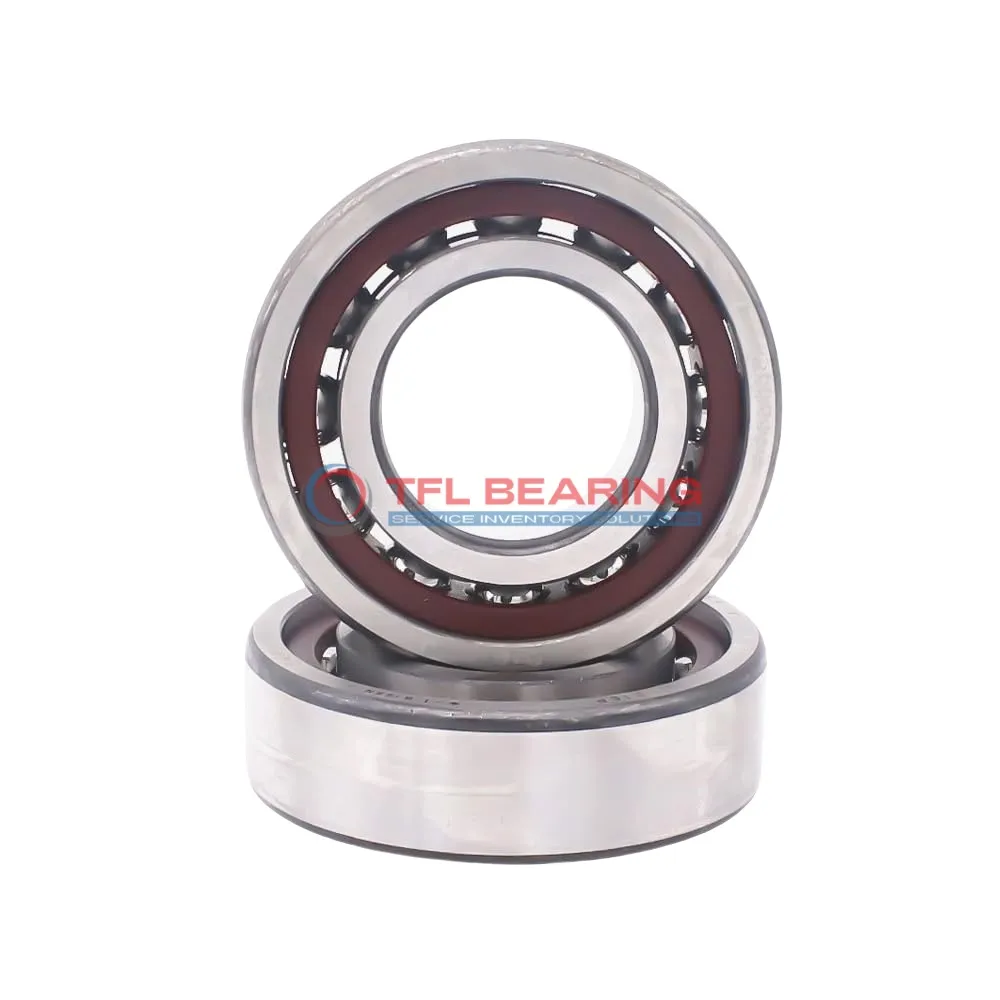

The S7008 CB/HCP4ADGA is a super precision angular contact ball bearing, measuring 40mm by 68mm by 30mm. Made from chrome steel with ceramic balls, it offers smooth operation and high durability. Its sealed design keeps grease in and contaminants out.
With a 15° contact angle, it handles both radial and axial loads efficiently. It can manage dynamic radial loads up to 2678 lbf and spins at speeds up to 41,000 RPM. The extra light preload ensures minimal friction during operation.
The phenolic cage adds strength while reducing weight, and the universal matching allows flexible arrangements like back-to-back or face-to-face. Ideal for high-speed applications like machine tool spindles or precision instruments.
Weighing 0.41kg, it’s lightweight yet robust. Compliant with P4A tolerance class, it’s a reliable choice for demanding environments. Works well in temperatures from -30°C to 110°C.
"*" indicates required fields
Performance Features of S7008 CB/HCP4ADGA Bearing
S7008 CB/HCP4ADGA Bearing features a 15° contact angle, optimised for precision angular contact applications.
Its ceramic balls and chrome steel rings ensure smooth operation with minimal friction.
The sealed design and grease lubrication reduce maintenance needs while extending service life.
With a maximum speed of 41,000 rpm, it delivers reliable performance in high-speed scenarios.
Universal matching allows flexible arrangement options like back-to-back or face-to-face configurations.
The phenolic cage maintains ball alignment, enhancing durability under dynamic radial loads.
Operating between -30°C to 110°C, S7008 CB/HCP4ADGA Bearing adapts to various temperature conditions.
Its P4A tolerance class ensures consistent precision in demanding applications.
Super Precision Angular Contact Ball Bearings S7008 CB/HCP4ADGA is commonly used in high-speed machine tools, where its ceramic balls and phenolic cage reduce friction for smoother operation. The sealed design helps keep contaminants out, extending the bearing’s lifespan in demanding environments.
In robotics, S7008 CB/HCP4ADGA excels in articulated arms, thanks to its angular contact design that handles combined loads efficiently. The universal matching feature allows for flexible mounting options, making it a versatile choice for automated systems.
For medical imaging devices, S7008 CB/HCP4ADGA’s P4A tolerance ensures the precision needed for accurate diagnostics. The extra-light preload minimises vibration, which is crucial for maintaining image clarity in sensitive equipment.
In aerospace applications, S7008 CB/HCP4ADGA supports components like gyroscopes, where its high-speed capability and thermal stability are key. The grease lubrication ensures consistent performance across a wide temperature range.
For electric vehicle motors, S7008 CB/HCP4ADGA’s low friction and high-speed tolerance contribute to energy efficiency. Its durable construction also makes it suitable for the rigorous demands of automotive powertrains.
