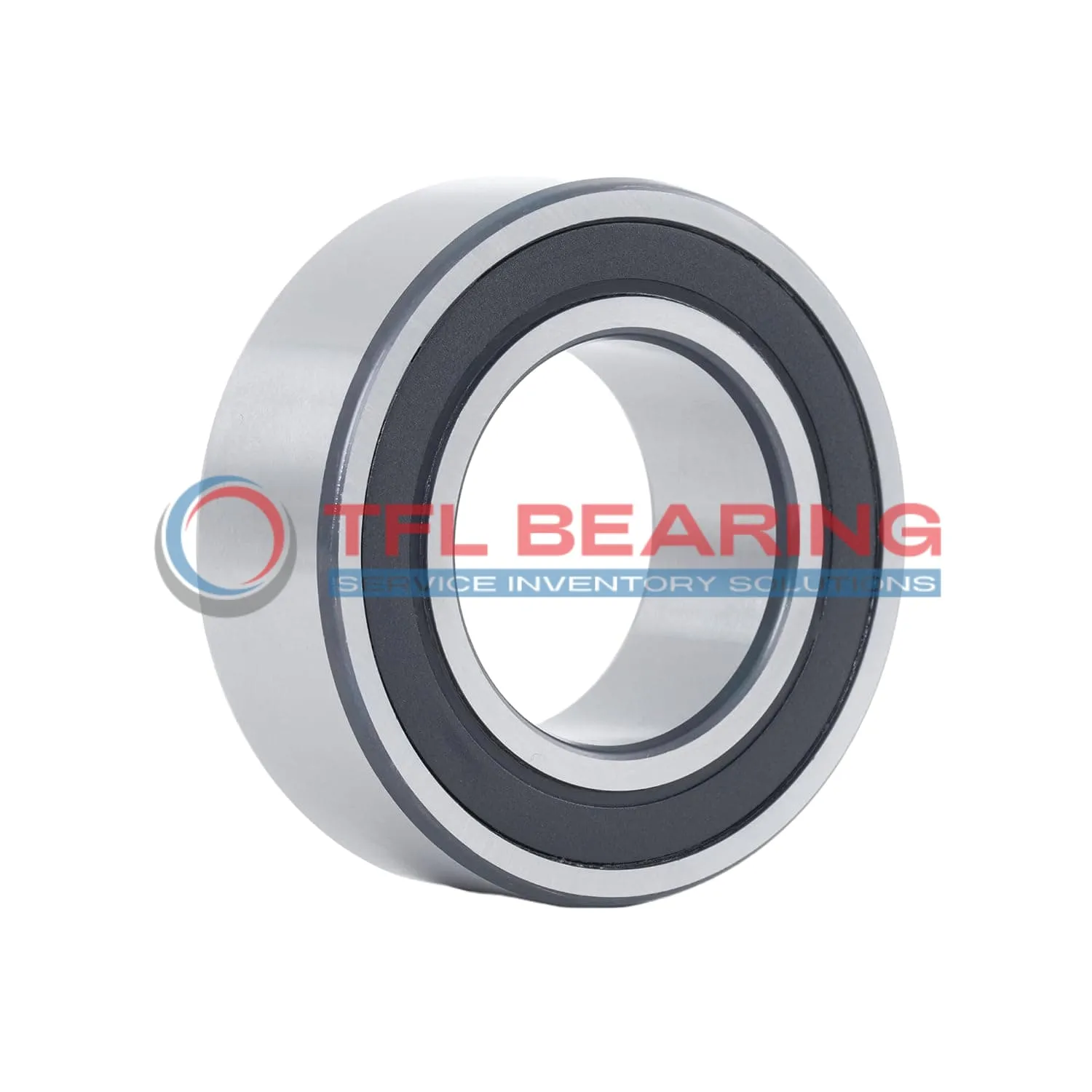

The S7008 ACEGA/P4A is a super precision angular contact ball bearing with a 40mm bore and 68mm outer diameter, crafted from durable chrome steel. It features a 25° contact angle and comes sealed for protection, with an extra light preload for smooth operation.
This bearing handles radial loads up to 2632 lbf and can reach speeds of 41,000 RPM, making it suitable for high-performance applications. The phenolic cage ensures stability, while the grease lubrication keeps maintenance simple.
Its P4A tolerance class guarantees high precision, ideal for demanding machinery. The bearing can be used in universal matching sets, arranged back-to-back, face-to-face, or tandem.
Weighing just 0.19kg, it’s lightweight yet robust. Perfect for applications like spindles or precision tools where accuracy and speed are crucial. Works well in temperatures from -30°C to 110°C.
"*" indicates required fields
Performance Features of S7008 ACEGA/P4A Bearing
S7008 ACEGA/P4A Bearing is crafted with chrome steel rings and balls, ensuring high precision and durability.
Its 25° contact angle provides excellent angular contact performance, ideal for complex load conditions.
The phenolic cage enhances stability, reducing friction and noise during high-speed operation.
With a maximum speed of 41,000 rpm, it delivers reliable performance in demanding applications.
How Does S7008 ACEGA/P4A Bearing Reduce Friction?
S7008 ACEGA/P4A Bearing features a precision-engineered design with a phenolic cage, minimising friction and wear.
The chrome steel construction ensures smooth operation, even under high radial loads up to 2632 lbf.
Its sealed design retains lubrication, reducing maintenance needs and extending service life.
The P4A tolerance class guarantees consistent performance in precision applications.
Engineered for Precision: S7008 ACEGA/P4A Bearing
S7008 ACEGA/P4A Bearing is designed for high-precision tasks, with a P4A tolerance class for accuracy.
The 19 chrome steel balls and 25° contact angle ensure optimal load distribution and smooth rotation.
It operates efficiently in temperatures ranging from -30°C to 110°C, suitable for various environments.
The grease lubrication and sealed design provide long-lasting performance with minimal upkeep.
Steel vs Ceramic Bearings: Strengths of S7008 ACEGA/P4A Bearing
S7008 ACEGA/P4A Bearing uses chrome steel for rings and balls, offering a balance of strength and affordability.
Its phenolic cage provides excellent heat resistance and reduces friction compared to traditional materials.
The bearing handles dynamic radial loads up to 2632 lbf, making it reliable for heavy-duty applications.
With a max speed of 41,000 rpm, it outperforms many ceramic alternatives in high-speed scenarios.
Key Fields for S7008 ACEGA/P4A Bearing
S7008 ACEGA/P4A Bearing is widely used in high-speed machine tools, where its precision and angular contact design ensure accurate spindle rotation. The sealed construction helps maintain performance in environments with dust or debris.
In robotics, S7008 ACEGA/P4A Bearing supports articulated arms, providing smooth movement and reliability. Its extra light preload makes it ideal for applications requiring minimal friction.
For medical imaging devices, S7008 ACEGA/P4A Bearing’s phenolic cage and chrome steel components offer durability and consistent operation. The P4A tolerance class ensures high precision in critical diagnostic equipment.
Automotive electric motors benefit from S7008 ACEGA/P4A Bearing’s ability to handle both radial and axial loads. The grease lubrication extends service life, even in high-speed conditions.
In 3D printers, S7008 ACEGA/P4A Bearing contributes to precise linear motion, enhancing print quality. Its compact size and lightweight design make it suitable for space-constrained applications.
