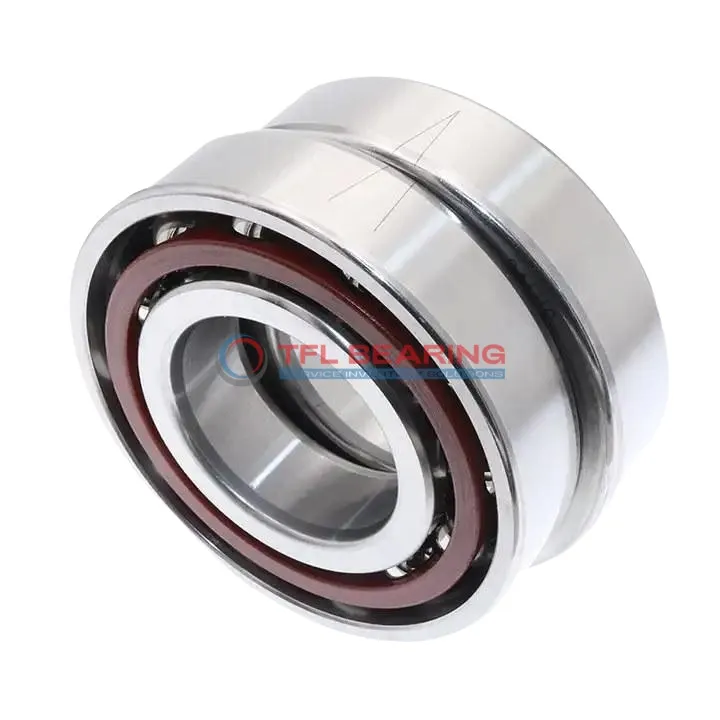

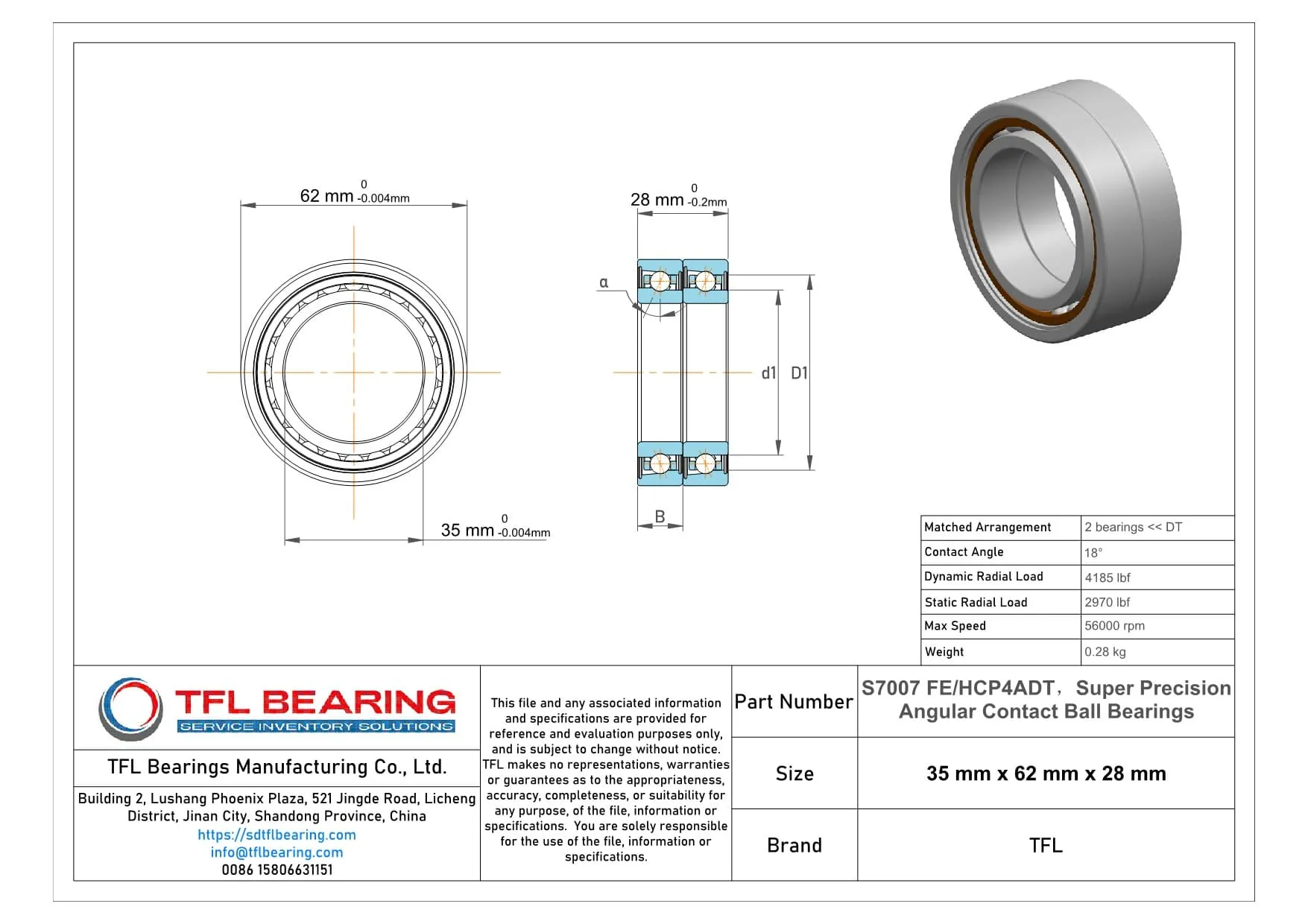

The S7007 FE/HCP4ADT is a super precision angular contact bearing, measuring 35mm by 62mm by 28mm, with a sealed design for added protection. Made from chrome steel and ceramic balls, it offers smooth operation and durability.
It handles radial loads up to 4185 lbf and reaches speeds of 56,000 RPM, making it suitable for high-performance applications. The phenolic cage ensures stability, while the 18° contact angle improves load distribution.
This matched set of two bearings comes with preload for precise alignment, ideal for machinery requiring tight tolerances. Its grease lubrication simplifies maintenance, and it operates in temperatures from -30°C to 110°C.
Weighing 0.28kg, it’s a reliable choice for spindle drives or precision tools where accuracy is key. Compliant with P4A tolerance standards, it’s interchangeable with SKF bearings for easy replacement.
"*" indicates required fields
Why Choose S7007 FE/HCP4ADT Bearing for Precision Tasks?
S7007 FE/HCP4ADT Bearing features a 18° contact angle, ideal for high-precision angular contact applications.
The ceramic balls and chrome steel rings ensure minimal friction and long-lasting performance.
With a dynamic radial load capacity of 4185 lbf, it handles demanding tasks efficiently.
Its sealed design and grease lubrication reduce maintenance needs while maintaining high-speed operation up to 56,000 rpm.
Key Fields for S7007 FE/HCP4ADT Bearing
S7007 FE/HCP4ADT Bearing is widely used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it ideal for applications demanding smooth, high-speed operation.
In robotics, S7007 FE/HCP4ADT Bearing supports articulated arms, providing stability and load capacity for repetitive movements. Its matched arrangement enhances performance in dual-bearing setups, common in automated systems.
For medical imaging devices, S7007 FE/HCP4ADT Bearing’s phenolic cage and sealed design minimise contamination risks. The P4A tolerance class guarantees consistent performance in sensitive diagnostic equipment.
In electric vehicle motors, S7007 FE/HCP4ADT Bearing handles combined radial and axial loads efficiently. The grease lubrication extends service life, even under continuous high-speed conditions.
