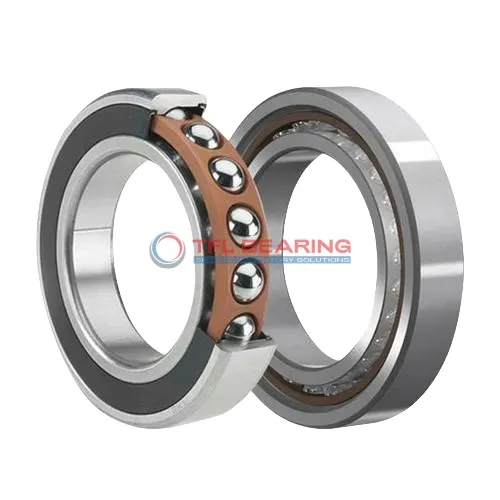

The S7003 CE/HCP4ADGB is a super precision angular contact ball bearing, measuring 17mm by 35mm by 20mm. Made from chrome steel with ceramic balls, it offers smooth operation and durability.
With a 15° contact angle, it handles both radial and axial loads efficiently. The sealed design keeps grease in and contaminants out, making it low-maintenance.
Its universal matching allows flexible arrangements like back-to-back or face-to-face setups. Ideal for high-speed applications, it spins up to 85,000 RPM.
This bearing suits precision machinery like spindles or CNC tools where accuracy and speed are key. Compliant with P4A tolerance standards for reliable performance.
"*" indicates required fields
Performance Features of S7003 CE/HCP4ADGB Bearing
S7003 CE/HCP4ADGB Bearing features a 15° contact angle, optimised for precision angular contact applications.
Its chrome steel rings and ceramic balls provide a balanced combination of strength and smooth operation.
The sealed design and grease lubrication ensure minimal maintenance, even in demanding conditions.
With a maximum speed of 85,000 rpm, it delivers reliable high-speed performance.
Universal matching allows flexible arrangements like back-to-back or face-to-face configurations.
The phenolic cage keeps the ceramic balls aligned, reducing friction and wear.
Operating between -30°C to 110°C, S7003 CE/HCP4ADGB Bearing adapts to various temperature environments.
Its P4A tolerance class ensures consistent precision in critical applications.
Super Precision Angular Contact Ball Bearings S7003 CE/HCP4ADGB are commonly used in high-speed machine tools, where their ceramic balls and phenolic cage reduce friction and heat buildup. The sealed design keeps contaminants out, ensuring long-lasting performance in demanding industrial settings.
In automotive applications, S7003 CE/HCP4ADGB supports precision components like turbochargers and electric motor shafts, thanks to its light preload and universal matching capability. The 15° contact angle provides excellent radial and axial load handling for smoother rides.
For medical imaging devices, S7003 CE/HCP4ADGB’s P4A tolerance class ensures minimal vibration, crucial for clear scans. The chrome steel rings and ceramic balls offer reliable operation in sterile environments where consistency is key.
In robotics, S7003 CE/HCP4ADGB excels in articulated arms and joints due to its high-speed capability and low friction. The matched arrangement allows for flexible mounting options, making it ideal for compact, high-precision movements.
Household appliances like high-end blenders benefit from S7003 CE/HCP4ADGB’s quiet operation and durability. The grease lubrication ensures smooth performance even under frequent use, extending the appliance’s lifespan.
