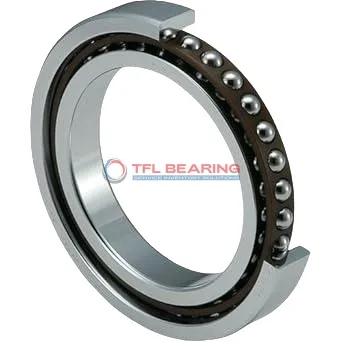

The S7002 CE/HCP4ADGA is a super precision angular contact ball bearing with a 15mm bore and 32mm outer diameter, crafted from durable chrome steel and ceramic balls. It handles radial loads up to 1609 lbf and spins smoothly at speeds up to 95,000 RPM.
Its sealed design keeps grease in and contaminants out, while the phenolic cage ensures quiet operation. The bearing works well in temperatures from -30°C to 110°C, making it suitable for demanding environments.
This model is universally matched, allowing flexible arrangements like back-to-back or face-to-face. Ideal for high-precision applications such as machine tools or spindle drives where accuracy is key.
Weighing just 0.052kg, it’s lightweight yet robust, with a P4A tolerance class for exceptional performance. Compliant with industry standards, it’s a reliable choice for engineers and technicians alike.
"*" indicates required fields
How Does S7002 CE/HCP4ADGA Bearing Achieve High-Speed Performance?
S7002 CE/HCP4ADGA Bearing features ceramic balls and a phenolic cage, reducing friction for smooth high-speed operation.
Its dynamic radial load capacity of 1609 lbf ensures reliable performance in precision applications.
The sealed design protects against contaminants, extending the bearing’s service life.
With a maximum speed of 95,000 rpm, it is ideal for demanding high-speed tasks.
Universal matching allows flexible arrangement, catering to various load requirements.
The extra light preload ensures minimal friction, enhancing efficiency and longevity.
Where Is S7002 CE/HCP4ADGA Bearing Used?
S7002 CE/HCP4ADGA Bearing is commonly used in high-speed machine tools, where its precision and ceramic balls reduce friction for smoother operation. The sealed design helps keep contaminants out, extending its lifespan in demanding environments.
In robotics, S7002 CE/HCP4ADGA Bearing ensures accurate movement in joints and arms, thanks to its angular contact design. The universal matching feature allows for flexible installation in various configurations.
For medical imaging devices, S7002 CE/HCP4ADGA Bearing’s phenolic cage and grease lubrication provide quiet, reliable performance. Its P4A tolerance class ensures the precision needed for sensitive equipment.
In automotive applications, S7002 CE/HCP4ADGA Bearing supports components like electric motors, where high-speed capability is essential. The extra light preload helps maintain efficiency without unnecessary resistance.
Consumer electronics like high-end printers benefit from S7002 CE/HCP4ADGA Bearing’s compact size and smooth operation. The ceramic balls contribute to reduced wear, even with frequent use.
