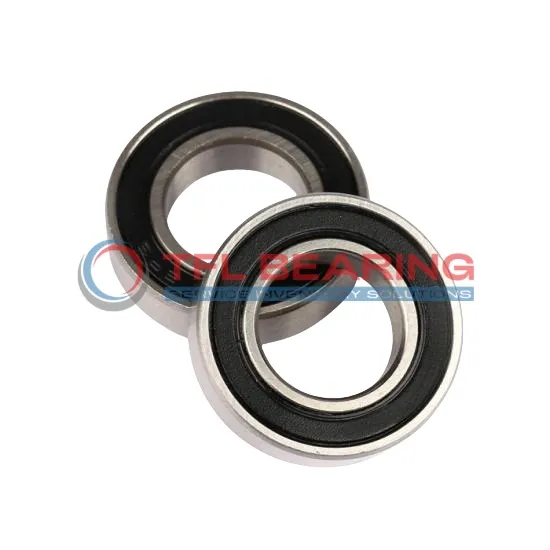

The S7000 CD/P4A is a super precision angular contact ball bearing with a compact 10mm bore and 26mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 922 lbf and operates smoothly at speeds up to 75,000 RPM.
Its sealed design keeps lubrication in and contaminants out, while the phenolic cage ensures quiet, efficient performance. The 15° contact angle provides excellent stability for angular loads.
This bearing is interchangeable with SKF models and comes in matched sets for easy installation. Ideal for high-speed applications like spindles or precision tools where accuracy is key.
Weighing just 0.019kg, it’s lightweight yet durable, with a temperature range of -30°C to 110°C. Compliant with P4 tolerance standards for reliable performance.
"*" indicates required fields
Performance Features of S7000 CD/P4A Bearing
S7000 CD/P4A Bearing is designed with a 15° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction for smoother operation.
With a dynamic radial load capacity of 922 lbf, it performs reliably in high-speed applications.
The P4 tolerance class guarantees precision, making it suitable for demanding tasks.
S7000 CD/P4A Bearing operates at speeds up to 75,000 rpm, maintaining efficiency.
Its sealed design keeps lubrication intact, reducing maintenance needs.
The bearing’s compact size (10 mm×26 mm×8 mm) allows for easy integration into tight spaces.
Its temperature range of -30° to 110 °C ensures performance in varied environments.
Common Applications of S7000 CD/P4A Bearing
S7000 CD/P4A Bearing is widely used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The sealed construction keeps contaminants out, extending service life in demanding workshop conditions.
In robotics, S7000 CD/P4A Bearing excels in articulated arms, providing smooth movement with minimal friction. Its phenolic cage offers quiet operation, ideal for sensitive automation environments.
For medical imaging devices, S7000 CD/P4A Bearing’s P4 tolerance class delivers the precision needed for stable, vibration-free performance. The chrome steel construction maintains reliability during continuous scanning operations.
Automotive electric motors benefit from S7000 CD/P4A Bearing’s ability to handle combined radial and thrust loads. Its lubricated design ensures consistent performance in variable-speed applications.
In 3D printers, S7000 CD/P4A Bearing supports precise linear motion systems, contributing to high-quality print outputs. The compact 10mm bore makes it suitable for space-constrained designs.
