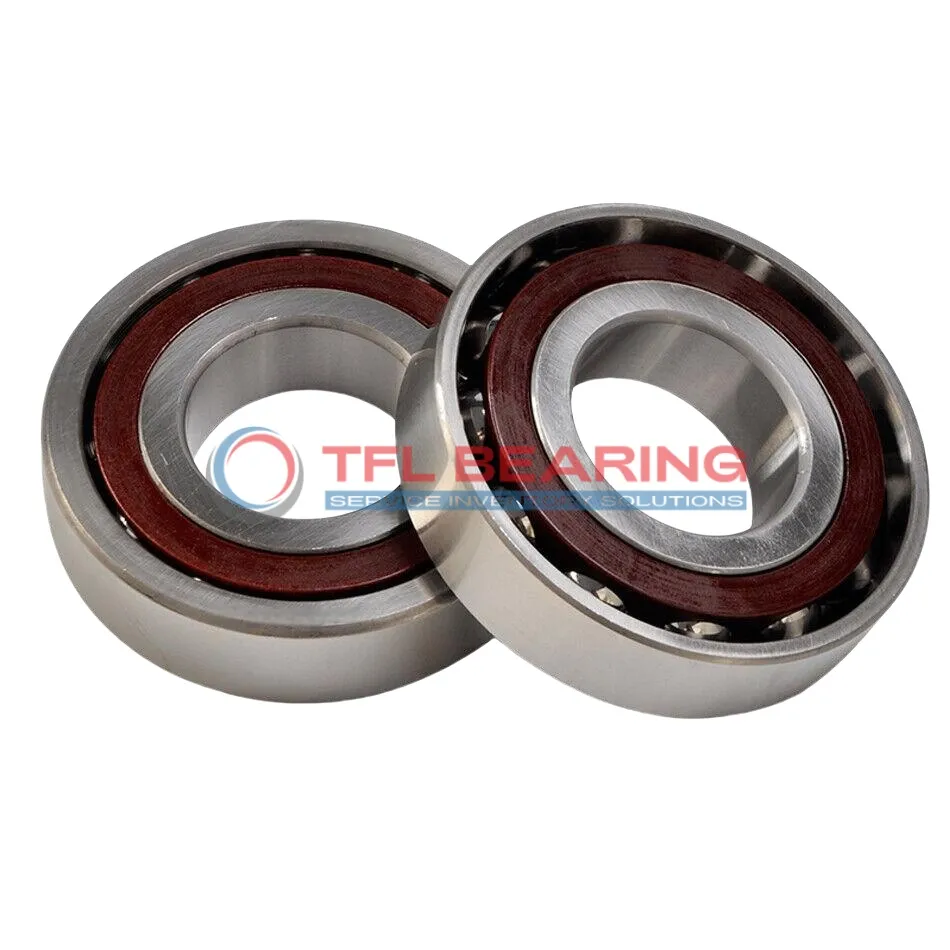

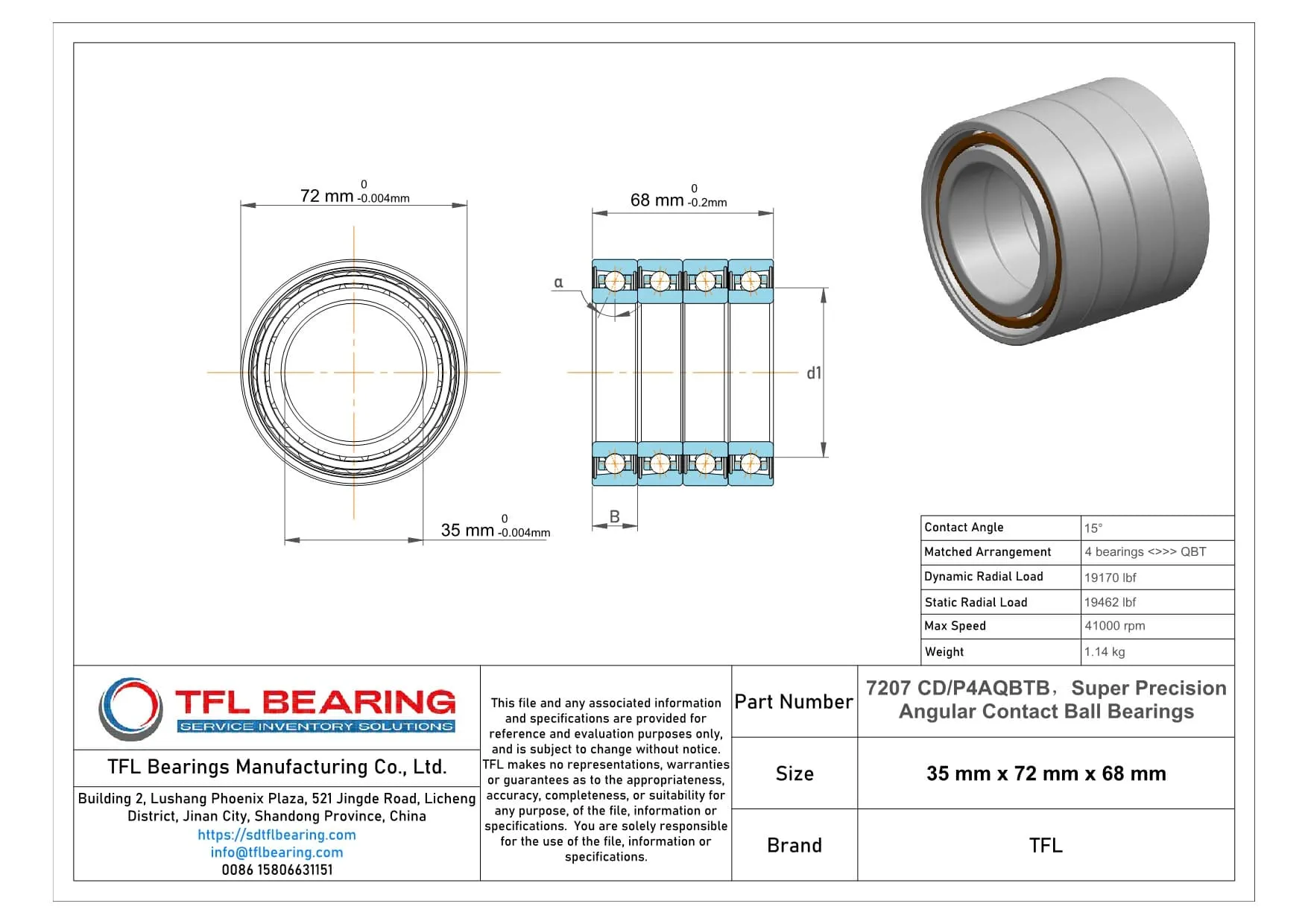

The 7207 CD/P4AQBTB is a super precision angular contact ball bearing with a 35mm bore and 72mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 19170 lbf and spins smoothly at speeds up to 41000 RPM.
With a 15° contact angle and light preload, it offers excellent accuracy for high-performance applications. The phenolic cage ensures quiet operation and long service life.
This set includes four matched bearings, ideal for arrangements requiring precise alignment. It works well in temperatures from -30°C to 110°C and comes pre-lubricated for easy installation.
Perfect for machine tools or spindle systems where precision and reliability are key. Weighing 1.14kg, it balances strength with manageable size. Compliant with P4A tolerance standards for consistent performance.
"*" indicates required fields
How Does 7207 CD/P4AQBTB Bearing Achieve Super Precision?
7207 CD/P4AQBTB Bearing features a 15° contact angle, optimising load distribution for high-precision applications.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and noise.
With a dynamic radial load capacity of 19,170 lbf, it handles demanding conditions reliably.
The P4A tolerance class guarantees exceptional accuracy, making it suitable for precision machinery.
7207 CD/P4AQBTB Bearing operates smoothly at speeds up to 41,000 rpm, balancing performance and longevity.
Its matched arrangement of four bearings ensures consistent performance in angular contact applications.
Industrial Uses of 7207 CD/P4AQBTB Bearing
7207 CD/P4AQBTB Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate alignment under radial and axial loads. The phenolic cage reduces friction, making it suitable for high-speed operations.
In automotive applications, 7207 CD/P4AQBTB Bearing supports components like wheel hubs and transmissions, where its light preload enhances performance. The metric sizing ensures compatibility with a variety of vehicle designs.
For robotics, 7207 CD/P4AQBTB Bearing’s matched arrangement provides stability in robotic arms, ensuring smooth movement. Its chrome steel construction offers durability in repetitive motion scenarios.
Medical imaging devices benefit from 7207 CD/P4AQBTB Bearing’s precision, as it maintains consistent performance in high-accuracy environments. The open seal design allows for easy lubrication, extending service life.
In automation systems, 7207 CD/P4AQBTB Bearing is ideal for conveyor belts and assembly lines, where its high-speed capability and load handling are essential. The P4A tolerance class ensures reliable operation in demanding conditions.
