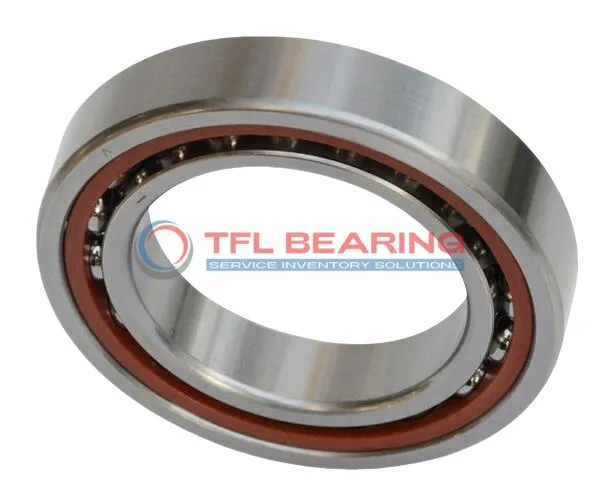

The 71917 CE/P4ADGA is a super precision angular contact ball bearing with an 85mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 10980 lbf and operates smoothly at speeds up to 17000 RPM.
Its 15° contact angle and universal matching design allow flexible arrangements like back-to-back or face-to-face setups. The phenolic cage ensures quiet, efficient performance, while the open seal simplifies maintenance.
This bearing is ideal for high-precision applications like machine tool spindles or robotics, where accuracy and speed matter. It works in temperatures from -30°C to 110°C and comes pre-lubricated for immediate use.
Weighing 1kg, it’s part of a matched set of two bearings, interchangeable with SKF models. Compliant with P4A tolerance standards for reliable performance.
"*" indicates required fields
Performance Features of 71917 CE/P4ADGA Bearing
71917 CE/P4ADGA Bearing is crafted with chrome steel rings and balls, offering high precision for angular contact applications.
Its 15° contact angle ensures optimal load distribution, enhancing performance in demanding setups.
The phenolic cage maintains ball alignment, reducing friction and improving efficiency.
With a dynamic radial load capacity of 10980 lbf, it handles heavy loads reliably.
How Is 71917 CE/P4ADGA Bearing Engineered for Reliability?
71917 CE/P4ADGA Bearing features universal matching, allowing flexible arrangements like back-to-back or face-to-face.
Its extra light preload (Class A) ensures smooth operation and minimal wear over time.
The open seal design simplifies lubrication, maintaining performance in various conditions.
With a maximum speed of 17,000 rpm, it balances speed and durability.
Designed for Durability: 71917 CE/P4ADGA Bearing
71917 CE/P4ADGA Bearing’s chrome steel construction resists wear, ensuring a long service life.
The precision P4A tolerance class guarantees consistent performance in high-speed applications.
Its 23-ball design distributes loads evenly, reducing stress on individual components.
Operating from -30°C to 110°C, it adapts to a wide temperature range.
Open vs Sealed Bearings: Benefits of 71917 CE/P4ADGA Bearing
71917 CE/P4ADGA Bearing’s open design allows easy lubrication, enhancing its performance in high-speed scenarios.
The phenolic cage minimises friction, making it ideal for precision tasks.
With a static radial load capacity of 10238 lbf, it handles heavy loads without compromising accuracy.
Its universal matching feature offers versatility in various mounting configurations.
Industrial Uses of 71917 CE/P4ADGA Bearing
71917 CE/P4ADGA Bearing is widely used in high-precision machine tools, where its 15° contact angle ensures accurate radial and axial load handling. The universal matching design allows flexible arrangements for back-to-back or face-to-face setups.
In automotive applications, 71917 CE/P4ADGA Bearing supports high-speed components like turbochargers and gearboxes. Its extra-light preload reduces friction, enhancing efficiency and longevity in demanding conditions.
For robotics, 71917 CE/P4ADGA Bearing provides smooth motion in articulated arms and joints. The phenolic cage material offers durability while maintaining low weight, ideal for repetitive movements.
Medical imaging devices benefit from 71917 CE/P4ADGA Bearing’s precision and stability. The P4A tolerance class ensures consistent performance in sensitive equipment like MRI scanners.
In aerospace systems, 71917 CE/P4ADGA Bearing handles high speeds and loads in actuators and control mechanisms. Its chrome steel construction withstands extreme conditions while maintaining reliability.
