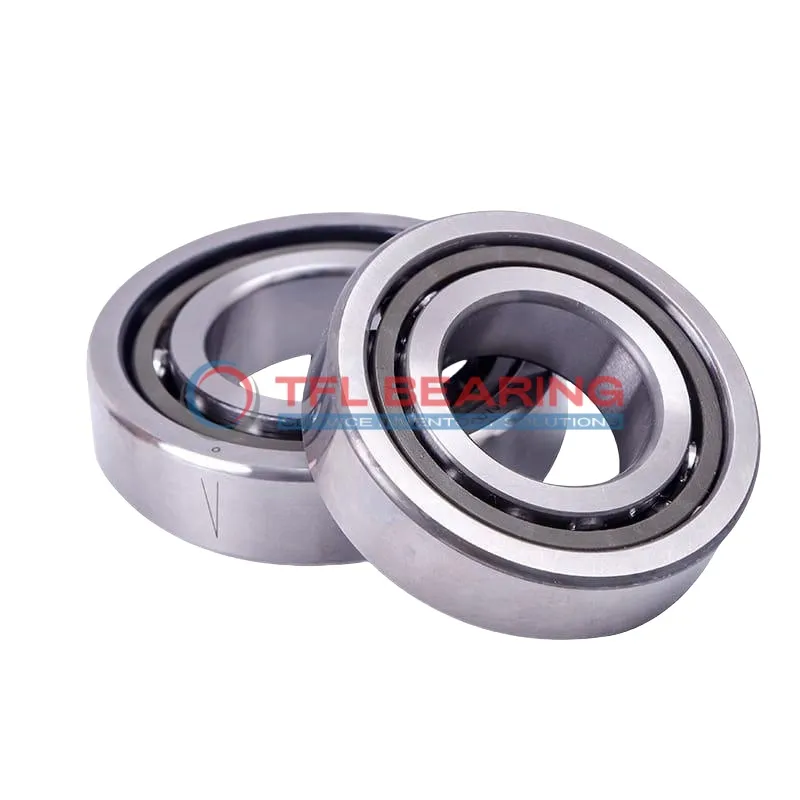

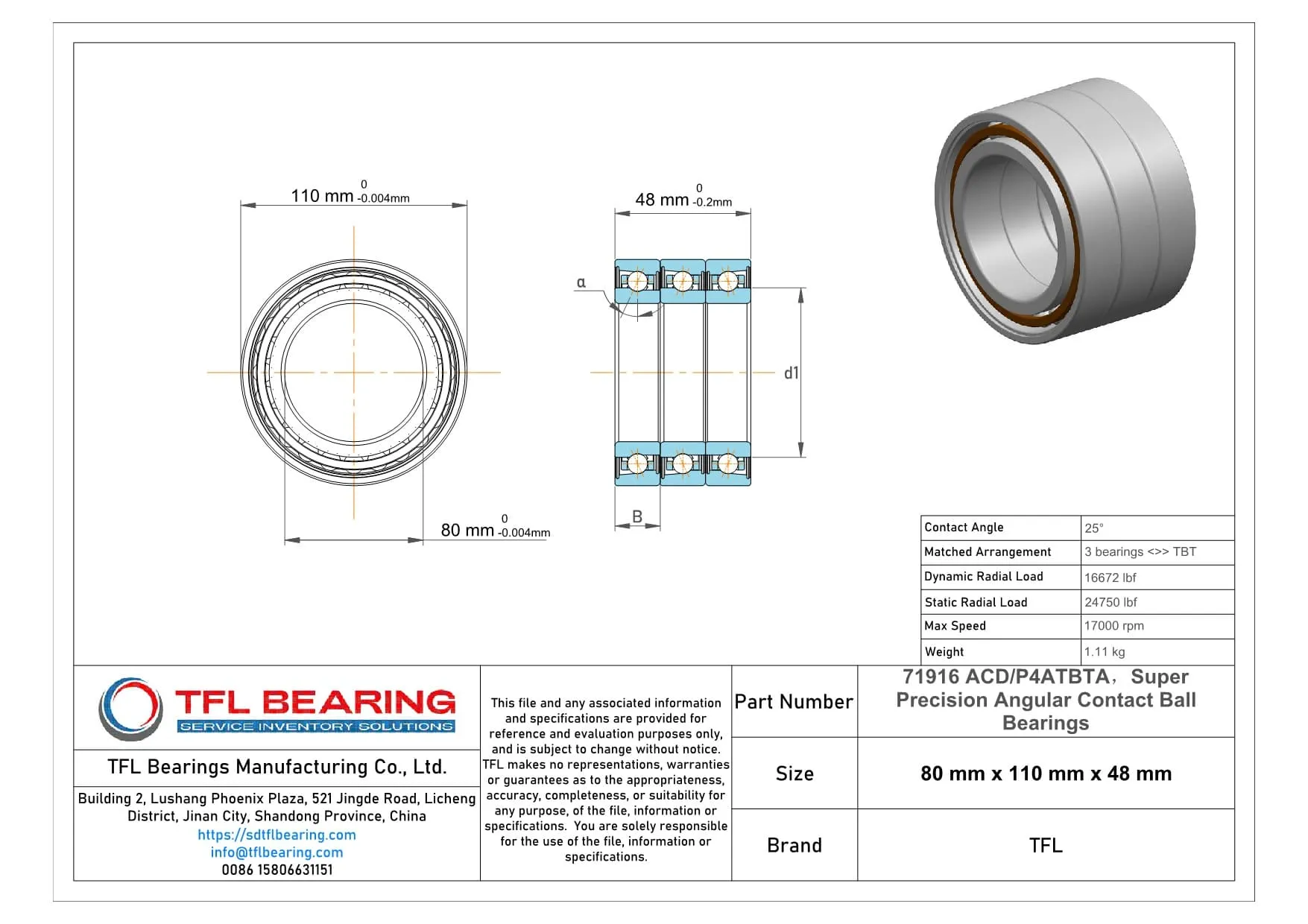

The 71916 ACD/P4ATBTA is a super precision angular contact ball bearing with an 80mm bore and 110mm outer diameter, crafted from durable chrome steel. Its compact design measures 80mm by 110mm by 48mm, making it suitable for tight spaces.
With a 25° contact angle, it handles both radial and axial loads efficiently, supporting up to 16672 lbf dynamically. It spins smoothly at speeds up to 17000 RPM, ideal for high-performance applications.
The phenolic cage reduces friction and wear, while the open design allows easy lubrication. This bearing comes in a matched set of three, preloaded for extra light operation.
Perfect for precision machinery like spindles or CNC tools, it operates reliably in temperatures from -30°C to 110°C. Weighing 1.11kg, it balances strength and precision for demanding tasks.
"*" indicates required fields
How Does 71916 ACD/P4ATBTA Bearing Reduce Friction?
71916 ACD/P4ATBTA Bearing features a 25° contact angle, optimised for smooth angular contact operation.
Its chrome steel rings and balls reduce friction, ensuring efficient performance even at high speeds.
The phenolic cage maintains ball alignment, minimising wear and extending the bearing’s life.
With a maximum speed of 17,000 rpm, it delivers reliable performance in precision applications.
Industrial Uses of 71916 ACD/P4ATBTA Bearing
71916 ACD/P4ATBTA Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The phenolic cage reduces friction, making it suitable for high-speed operations.
Where Is 71916 ACD/P4ATBTA Bearing Used?
In automotive applications, 71916 ACD/P4ATBTA Bearing supports gearboxes and electric motors, providing reliable performance under angular loads. Its P4A tolerance class ensures consistent precision in demanding conditions.
Built for Heavy-Duty Use: 71916 ACD/P4ATBTA Bearing
This bearing excels in industrial automation, particularly in robotic arms and CNC machines, where its matched arrangement enhances stability. The chrome steel construction offers durability in continuous operation.
Medical vs Industrial: Where 71916 ACD/P4ATBTA Bearing Excels
In medical imaging devices, 71916 ACD/P4ATBTA Bearing delivers smooth, quiet operation essential for diagnostic accuracy. Its high-speed capability also makes it a preferred choice for industrial pumps and compressors.
