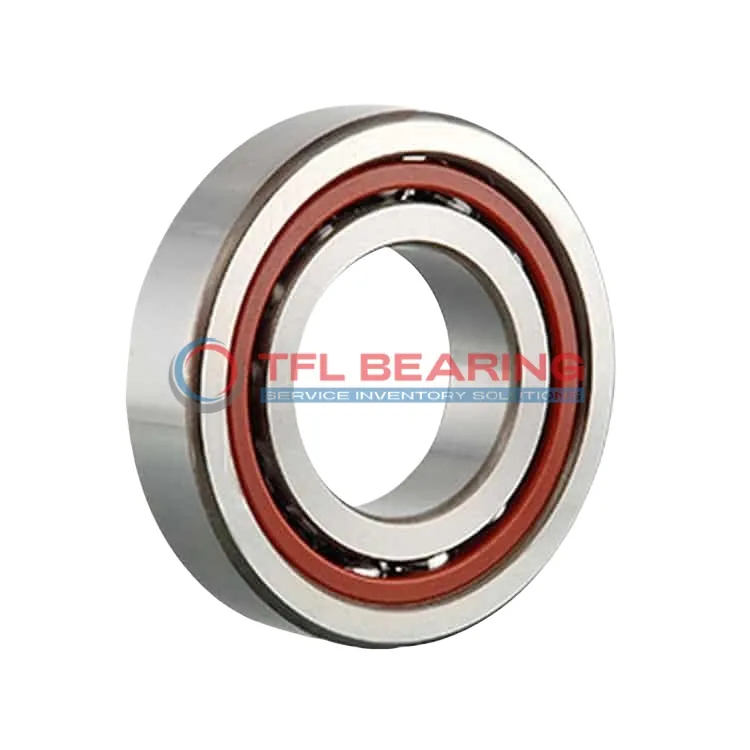

The 709 CDGA/P4A is a super precision angular contact ball bearing with a 9mm bore and 24mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 806 lbf and spins smoothly at speeds up to 95,000 RPM.
Its 15° contact angle and extra light preload ensure precise performance, while the phenolic cage offers quiet operation. The bearing operates well in temperatures from -30°C to 110°C.
This open-design bearing is lubricated for easy maintenance and is interchangeable with SKF models. Ideal for high-speed applications like spindles or small machinery where accuracy is key.
Weighing just 0.015kg, it’s lightweight yet robust, and can be paired in back-to-back, face-to-face, or tandem arrangements for versatile use. Compliant with P4A tolerance standards for reliable performance.
"*" indicates required fields
Performance Features of 709 CDGA/P4A Bearing
709 CDGA/P4A Bearing is crafted with chrome steel rings and balls, offering high precision for angular contact applications.
Its 15° contact angle ensures efficient load distribution, enhancing performance in high-speed operations.
The phenolic cage maintains ball alignment, reducing friction and noise during use.
With a maximum speed of 95,000 rpm, it delivers smooth and reliable operation.
709 CDGA/P4A Bearing’s extra light preload design minimises energy loss while maintaining accuracy.
Its open seal type allows for easy lubrication, ensuring consistent performance over time.
The bearing’s dynamic radial load capacity of 806 lbf makes it suitable for demanding tasks.
Its compact size of 9 mm×24 mm×7 mm enables use in space-constrained applications.
709 CDGA/P4A Bearing operates efficiently within a temperature range of -30°C to 110°C.
The P4A tolerance class guarantees high precision, meeting strict industry standards.
Key Fields for 709 CDGA/P4A Bearing
709 CDGA/P4A Bearing is commonly used in high-speed machine spindles, where its precision and angular contact design ensure smooth rotation. The extra light preload makes it ideal for applications requiring minimal friction.
In robotics, 709 CDGA/P4A Bearing supports articulated arms, providing stability during precise movements. Its phenolic cage helps reduce weight while maintaining durability.
For dental handpieces, 709 CDGA/P4A Bearing’s chrome steel construction offers reliable performance under frequent sterilization. The P4A tolerance class ensures consistent accuracy in critical medical procedures.
Where Is 709 CDGA/P4A Bearing Used?
You’ll often find 709 CDGA/P4A Bearing in optical equipment, where its low vibration characteristics are essential for clear imaging. The open design allows for easy lubrication maintenance.
In small electric motors, 709 CDGA/P4A Bearing handles both radial and axial loads efficiently. Its compact size makes it perfect for space-constrained applications.
Built for Versatility: 709 CDGA/P4A Bearing
709 CDGA/P4A Bearing works well in precision measuring instruments, thanks to its high tolerance class. The 15° contact angle provides optimal load distribution for sensitive equipment.
For laboratory centrifuges, 709 CDGA/P4A Bearing’s ability to handle high speeds ensures consistent results. The lubricated design reduces wear during prolonged use.
Automotive vs Aerospace: Applications of 709 CDGA/P4A Bearing
In automotive steering systems, 709 CDGA/P4A Bearing offers precise control with its angular contact design. The metric sizing fits seamlessly into European car models.
For aerospace actuators, 709 CDGA/P4A Bearing’s lightweight construction and high-speed capability are crucial. Its temperature range suits both ground and flight conditions.
